Goodyear Rubber Products

Beer Hose

Name: Beer Hose
Brand: Goodyear Rubber Products
Availability: InStock

Quote Cart: 0 item(s) | View Quote Cart

Plicord® ExtremeFlex™ Beverage Red with EZ Clean Cover

Product Specifications

Application

Plicord ExtremeFlex Beverage Red with EZ Clean Cover is primarily for liquid transfer. Use it at beer, wine, distillery and beverage (edible liquid) transfer processing facilities. It is ideal for applications requiring flexibile and/or tight bend connections.

Construction
< Tube

White chlorobutyl (FDA/USDA compliant and conforms to a 3-A Sanitary Standard 18-03)

< Cover

New corrugated red EZ Clean UHMWPE cover (semi-smooth finish)

< Reinforcement

Spiral-plied fabric with double galvanized helix wire

Temperature Range

–30°F to 220°F (–34°C to 104°C)

Couplings

Tri-clamp or sanitary ends are typically used with this hose.
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.

Order Codes

549-605

SAP #	ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG @ 72°F		Weight
	in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lb./ft.	kg/m
737	0.65	0.96
20762754	1½	38.1	2.03	51.6	250	1.72	3	76	29	737	0.93	1.38
20752524	2	50.8	2.54	64.5	250	1.72	4	102	29	737	1.21	1.80
20762758	3	76.2	3.60	91.5	200	1.38	6	152	29	737	2.03	3.02
20762760	4	101.6	4.61	117	150	1.03	8	203	29	737	2.77	4.12

Hose design ratio (burst pressure) 4:1.

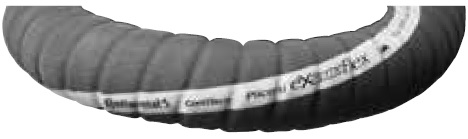

Plicord® ExtremeFlex™ Beverage Gray

Product Specifications

Application

Plicord® ExtremeFlex™ Beverage is primarily for liquid transfer. Use it at beer, wine, distillery and beverage (edible liquid) transfer processing facilities. It is ideal for applications requiring flexibile and/or tight bend connections

Construction
< Tube

White chlorobutyl (FDA/USDA compliant and conforms to a 3-A Sanitary Standard 18-03)

< Cover

Corrugated gray Chemivic (wrapped impression)

< Reinforcement

Spiral-plied fabric with double galvanized helix wire

Temperature Range

–30°F to 220°F (–34°C to 104°C)

Couplings

Tri-clamp or sanitary ends are typically used with this hose. Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.

Order Codes

549-004 (red Microban®)
549-603 (gray)

SAP #	ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG @ 72°F		Weight
	in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lb./ft.	kg/m
20762678	1	25.4	1.56	39.7	250	1.72	1.5	38	29	737	0.73	1.09
20762679	1½	38.1	2.02	51.3	250	1.72	2.3	57	29	737	0.92	1.38
20762751	2	50.8	2.53	64.2	250	1.72	3.0	76	29	737	1.20	1.79
20762752	3	76.2	3.59	91.2	200	1.38	4.5	114	29	737	2.02	3.01
20762753	4	101.6	4.60	116.8	150	1.03	6.0	152	29	737	2.76	4.11

Hose design ratio (burst pressure) 4:1.

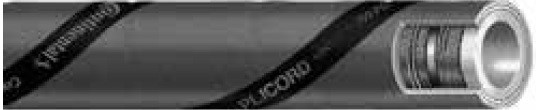

Vintner™

Product Specifications

Application

Vintner™ is primarily for liquid transfer. Use it for handling in-plant and/or tank truck transfer of wine, beer, potable water and other non-oily, liquid foodstuffs. The monofilament helix is rust proof and is a crush-resistant alternative to traditional softwall or steel wire reinforced hoses.

Construction
> Tube

White chlorobutyl (FDA/USDA compliant and conforms to 3-A Sanitary Standard 18-03)

> Cover

Gray EPDM synthetic rubber (wrapped)/purple branding tape

> Reinforcement

Spiral-plied synthetic fabric with a monofilament helix

Temperature Range

-30°F to 220°F (- 34°C to 104°C)

Packaging

100' lengths, coiled and poly-wrapped

Branding (Spiral)

Example: Continental ContiTech Plicord® Vintner™ 250 psi FDA 3-A USDA

Couplings

Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.

Non-Stock/Sizes

Contact customer service for availability of cut, coiled and tied hose lengths.

Order Codes

549-009 (red Microban®)
549-886 (white)

SAP #	ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG		Weight
Gray	in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lb./ft.	kg/m
20020354	1	25.4	1.62	41.1	250	1.72	3	76	27	686	0.71	1.06
20020356	1 1/2	38.1	2.11	53.6	250	1.72	4	102	27	686	0.98	1.46
20020361	2	50.8	2.68	68.1	250	1.72	7	178	27	686	1.38	2.05
20020362	2 1/2	63.5	3.21	81.5	250	1.72	10	254	27	686	1.78	2.65
20020365	3	76.2	3.81	96.8	250	1.72	12	305	27	686	2.80	4.17
20905070	4	101.6	4.88	124	250	1.72	24	610	27	686	3.50	5.21

Hose design ratio (burst pressure) 4:1. For ContiTech food hose compliance information, see Appendix C.

Add to Quote Cart

Applications

Beer Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.

Materials Overview

Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.

Selection Guidance

Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.

Installation and Maintenance Notes

Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.

Industries Served

Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.

Technical Specifications

Existing Technical Claim (Verbatim)
30°F to 220°F (–34°C to 104°C) Couplings Tri-clamp or sanitary ends are typically used with this hose.
549-605 SAP # ID Nom.
549-004 (red Microban®) 549-603 (gray) SAP # ID Nom.
30°F to 220°F (- 34°C to 104°C) Packaging 100' lengths, coiled and poly-wrapped Branding (Spiral) Example: Continental ContiTech
250 psi FDA 3-A USDA Couplings Refer to the ContiTech Industrial Hose Assembly Manual for crimp specificati
549-009 (red Microban®) 549-886 (white) SAP # ID Nom.
