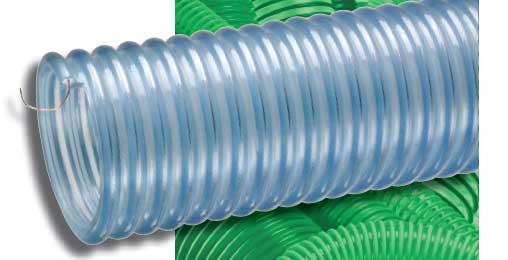

2001™ Series
Heavy Duty Food Grade
Polyurethane Lined
Material Handling Hose
With
Grounding Wire |
General Applications:
- Food grade material handling – heavy duty abrasive
- Material handling – heavy duty abrasive
- Pharmaceutical product transfer
- Plastic processing equipment
- Pneumatic conveying equipment
Construction:
PVC cover with polyurethane liner, rigid PVC helix and grounding wire.
Service Temperature: -4°F (-20°C) to 150°F (+65°C)*
|
|
Features and Advantages:
- Extra Thick Abrasion Resistant Polyurethane Liner – Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
- Food Grade Materials – Hose cover complies with applicable FDA(03) requirements. Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(12) for use in meat and poultry plants.
- Now Phthalate Free!
- Grounding Wire – Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It’s embedded within the rigid helix to prevent contamination of transferred materials.
- Transparent Construction – “See–the–flow.” Allows for visual confirmation of material flow.
- Convoluted Outer Cover – Provides increased hose flexibility.
- Oil Resistant Polyurethane Liner – Resists most animal and petroleum based oils.
Nominal Specifications
| Series |
ID |
OD |
Working Pressure (psi) |
Vacuum Rating (in. Hg) |
Min. Bending Radius |
Standard Length |
Weight |
| Series |
(in.) |
(mm) |
(in.) |
(mm) |
68°F |
104°F |
68°F |
104°F |
(in. @ 68°F) |
(ft.) |
(lbs./ft.) |
| 2001–150 | 11/2 | 38.1 | 1.88 | 47.8 | 50 | 25 | Full | 28 | 6 | 60 | 0.48
| | 2001–200 | 2 | 50.8 | 2.44 | 62.0 | 40 | 20 | Full | 28 | 7 | 60 | 0.67
| | 2001–250 | 21/2 | 63.5 | 3.12 | 77.2 | 40 | 20 | Full | 28 | 8 | 60 | 0.92
| | 2001–300 | 3 | 76.2 | 3.70 | 94.1 | 40 | 20 | Full | 28 | 9 | 60 | 1.35
| | 2001–400 | 4 | 101.6 | 4.80 | 122.0 | 35 | 18 | Full | 28 | 15 | 60/20 | 2.17
| | 2001–500 | 5 | 127.0 | 5.81 | 147.6 | 35 | 18 | 28 | 25 | 23 | 60/20 | 2.77
| | 2001–600 | 6 | 152.4 | 6.93 | 176.0 | 30 | 15 | 28 | 25 | 26 | 60/20 | 3.90
| | 2001–700 | 7 | 178.8 | 8.08 | 205.2 | 30 | 15 | 28 | 25 | 30 | 60/20 | 5.20
| | 2001–800 | 8 | 203.2 | 9.28 | 235.8 | 30 | 15 | 28 | 25 | 36 | 20 | 6.65 |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
NOTE: For details of the following compliances, refer to footnotes listed on page 62.
|

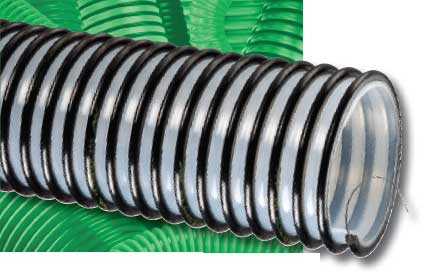

VOLT™ Series Heavy Duty Food Grade
Static Dissipative Polyurethane
Material Handling Hose |
General Applications:
- Bulk truck and railcar unloading
- Fly ash collection
- Food grade material handling – heavy duty abrasive
- Material handling – heavy duty abrasive
- Milling machine scrap recovery
- Pharmaceutical product transfer
- Plastic processing equipment
- Pneumatic conveying equipment
Construction:
Static dissipative polyurethane tube, rigid helix and grounding wire (patent pending).
Service Temperature: -40°F (-40°C) to 150°F (+65°C)*
|
|
Features and Advantages:
- Superior Static Protection! – A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing.
- Food Grade Materials – Hose tube complies with FDA(05) requirements. Grounding wire embedded in external helix to prevent material contamination.
- Extra Thick Abrasion Resistant Single– Ply Polyurethane Tube – Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
- Transparent Construction – “See–the–flow”. Allows for visual confirmation of material flow.
- “Cold–Flex” Materials – Hose remains flexible in sub-zero temperatures.
- Easy Slide Helix – Rigid helix design protects hose tube from wear; allows hose to slide easily over rough surfaces. Easy to handle.
- Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.
- Now Phthalate Free!
Nominal Specifications
| Series |
ID |
OD |
Working Pressure (psi) |
Vacuum Rating (in. Hg) |
Min. Bending Radius |
Standard Length |
Weight |
| Series |
(in.) |
(mm) |
(in.) |
(mm) |
68°F |
104°F |
68°F |
104°F |
(in. @ 68°F) |
(ft.) |
(lbs./ft.) |
| VOLT150 | 1-1/2 | 38.35 | 1.87 | 47.5 | 40 | 20 | Full | 28 | 2 | 100/60 | 0.31
| | VOLT200 | 2 | 51.1 | 2.52 | 63.9 | 40 | 20 | Full | 28 | 6 | 100/60 | 0.61
| | VOLT250 | 2-1/2 | 63.75 | 2.96 | 75.2 | 40 | 20 | Full | 28 | 7 | 100 | 0.76
| | VOLT300 | 3 | 76.2 | 3.60 | 91.4 | 40 | 20 | Full | 28 | 9 | 100/60 | 0.91
| | VOLT400 | 4 | 101.6 | 4.69 | 121.0 | 35 | 17 | 28 | 25 | 12 | 100/60/20 | 1.70
| | VOLT500 | 5 | 127.0 | 5.75 | 146.8 | 35 | 17 | 28 | 25 | 14 | 60/20 | 2.13
| | VOLT600 | 6 | 153.4 | 6.81 | 173.2 | 30 | 15 | 25 | 20 | 16 | 60/20 | 2.53
| | VOLT800 | 8 | 203.5 | 8.76 | 223.3 | 30 | 15 | 25 | 20 | 18 | 60/20 | 3.30 |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
NOTE: For details of the following compliances, refer to footnotes listed on page 62.
|

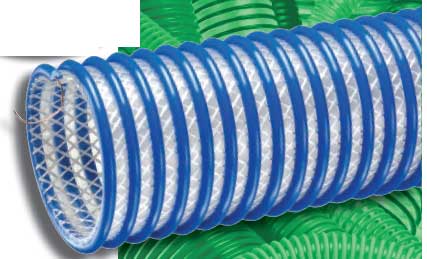

2020™ Series
Heavy Duty Food Grade
Polyurethane Fabric ReinforcedMaterial Handling Hose With
Grounding Wire
|
General Applications:
- Bulk truck and railcar unloading
- Food grade material handling &ndsah; heavy duty abrasive
- Material handling – heavy duty abrasive
- Suction and discharge
Construction:
Extra thick double-ply polyurethane tube, polyester fabric reinforcement, rigid PVC helix and grounding wire.
Service Temperature: -40°F (-40°C) to 150°F (+65°C)*
|
|
Features and Advantages:
- Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube – Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
- Food Grade Materials – Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(12) for use in meat and poultry plants.
- Fabric Reinforcement – Designed with high tensile strength, food grade(05), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
- Grounding Wire – Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It‘s embedded within the rigid helix to prevent contamination of transferred materials.
- Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow.
- “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
- Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-tohandle.
- Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.
- Now Phthalate Free!
Nominal Specifications
| Series |
ID |
OD |
Working Pressure (psi) |
Vacuum Rating (in. Hg) |
Min. Bending Radius |
Standard Length |
Weight |
| Series |
(in.) |
(mm) |
(in.) |
(mm) |
68°F |
104°F |
68°F |
104°F |
(in. @ 68°F) |
(ft.) |
(lbs./ft.) |
| 2020–200 | 2 | 50.1 | 2.65 | 67.5 | 75 | 40 | Full | 28 | 9 | 100 | 0.94
| | 2020–300 | 3 | 76.2 | 3.78 | 96.0 | 70 | 35 | Full | 28 | 10 | 100/50/20 | 1.20
| | 2020–400 | 4 | 101.6 | 4.84 | 123.0 | 65 | 30 | Full | 28 | 12 | 100/50/20 | 1.60
| | 2020–500 | 5 | 127.0 | 5.79 | 147.0 | 45 | 22 | 28 | 25 | 14 | 50/25/20 | 2.45
| | 2020–600 | 6 | 152.4 | 6.93 | 176.0 | 40 | 22 | 28 | 25 | 16 | 50/25/20 | 2.86
| | 2020–800 | 8 | 206.0 | 9.21 | 234.0 | 30 | 15 | 24 | 20 | 22 | 100 | 1.72 |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
NOTE: For details of the following compliances, refer to footnotes listed on page 62.
|
