NOW EASY TO INTERCHANGE NOMINAL PART NUMBERS

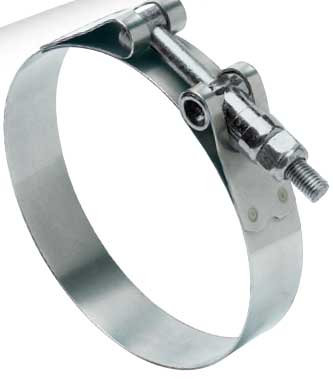

T-bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, offroad equipment, agricultural irrigation and machinery.

Standard T-Bolt 30050
- 1/4" T-Bolt Plated Carbon Steel
- 7/16" Hex Nut Plated Carbon Steel Nylon Insert
- 3/4" Band 300 Stainless
- 3/4" Bridge 300 Stainless
- Trunnion 300 Stainless
Standard T-Bolt 30051
- 1/4" T-Bolt 300 Stainless
- 7/16" Hex Nut 300 Stainless Nylon Insert
- 3/4" Band 300 Stainless
- 3/4" Bridge 300 Stainless
- Trunnion 300 Stainless
| Nominal Diameter (in) |
Min (in) |
Max (in) |
Ideal-Tridon 30050 |
Ideal-Tridon 30051 |
| 1.31 |
1.25 |
1.41 |
30050-0131-051 |
30051-0131-051 |
| 1.50 |
1.34 |
1.56 |
30050-0150-051 |
30051-0150-051 |
| 1.63 |
1.47 |
1.69 |
30050-0163-051 |
30051-0163-051 |
| 1.75 |
1.59 |
1.81 |
30050-0175-051 |
30051-0175-051 |
| 1.88 |
1.72 |
1.94 |
30050-0188-051 |
30051-0188-051 |
| 2.00 |
1.84 |
2.06 |
30050-0200-051 |
30051-0200-051 |
| 2.12 |
1.96 |
2.18 |
30050-0212-051 |
30051-0212-051 |
| 2.25 |
2.09 |
2.31 |
30050-0225-051 |
30051-0225-051 |
| 2.38 |
2.22 |
2.44 |
30050-0238-051 |
30051-0238-051 |
| 2.50 |
2.34 |
2.56 |
30050-0250-051 |
30051-0250-051 |
| 2.56 |
2.33 |
2.62 |
30050-0256-051 |
30051-0256-051 |
| 2.63 |
2.40 |
2.69 |
30050-0263-051 |
30051-0263-051 |
| 2.75 |
2.52 |
2.81 |
30050-0275-051 |
30051-0275-051 |
| 2.88 |
2.65 |
2.94 |
30050-0288-051 |
30051-0288-051 |
| 3.00 |
2.77 |
3.06 |
30050-0300-051 |
30051-0300-051 |
| 3.12 |
2.87 |
3.18 |
30050-0312-051 |
30051-0312-051
|
|
| 3.25 |
3.02 |
3.31 |
30050-0325-051 |
30051-0325-051 |
| 3.50 |
3.27 |
3.56 |
30050-0350-051 |
30051-0350-051 |
| 3.62 |
3.39 |
3.68 |
30050-0362-051 |
30051-0362-051 |
| 3.75 |
3.52 |
3.81 |
30050-0375-051 |
30051-0375-051 |
| 3.82 |
3.59 |
3.88 |
30050-0382-051 |
30051-0382-051 |
| 4.00 |
3.77 |
4.06 |
30050-0400-051 |
30051-0400-051 |
| 4.25 |
4.02 |
4.31 |
30050-0425-051 |
30051-0425-051 |
| 4.50 |
4.27 |
4.56 |
30050-0450-051 |
30051-0450-051 |
| 4.75 |
4.52 |
4.81 |
30050-0475-051 |
30051-0475-051 |
| 5.00 |
4.77 |
5.06 |
30050-0500-051 |
30051-0500-051 |
| 5.25 |
5.02 |
5.31 |
30050-0525-051 |
30051-0525-051 |
| 5.50 |
5.27 |
5.56 |
30050-0550-051 |
30051-0550-051 |
| 5.75 |
5.52 |
5.81 |
30050-0575-051 |
30051-0575-051 |
| 6.00 |
5.77 |
6.06 |
30050-0600-051 |
30051-0600-051 |
| 6.25 |
6.02 |
6.31 |
30050-0625-051 |
30051-0625-051 |
| 6.50 |
6.27 |
6.56 |
30050-0650-051 |
30051-0650-051 |
| 6.75 |
6.52 |
6.81 |
30050-0675-051 |
30051-0675-051 |
| 7.00 |
6.77 |
7.06 |
30050-0700-051 |
30051-0700-051 |
| 7.25 |
7.02 |
7.31 |
30050-0725-051 |
30051-0725-051 |
| 7.50 |
7.27 |
7.56 |
30050-0750-051 |
30051-0750-051 |
| 8.00 |
7.77 |
8.06 |
30050-0800-051 |
30051-0800-051 |
| 8.25 |
8.02 |
8.31 |
30050-0825-051 |
30051-0825-051 |
| 8.50 |
8.27 |
8.56 |
30050-0850-051 |
30051-0850-051 |
| 8.88 |
8.65 |
8.94 |
30050-0888-051 |
30051-0888-051 |
| 9.00 |
8.77 |
9.06 |
30050-0900-051 |
30051-0900-051 |
| 9.50 |
9.27 |
9.56 |
30050-0950-051 |
30051-0950-051 |
| 10.00 |
9.77 |
10.06 |
30050-1000-051 |
30051-1000-051 |
| 10.88 |
10.65 |
10.94 |
30050-1088-051 |
30051-1088-051 |
| 12.00 |
11.77 |
12.06 |
30050-1200-051 |
30051-1200-051 |
| 12.88 |
12.65 |
12.94 |
30050-1288-051 |
30051-1288-051 |
|
