Tridon Clamps

Javascript DHTML Drop Down Menu Powered by dhtml-menu-builder.com

MICRO–GEAR®

Micro–Gear clamps are tiny, tough and precision–engineered to use in small hose applications including emission control, fuel lines and vacuum hoses. Slim, 5/16" bands and low profile housings allow installation in confined areas.

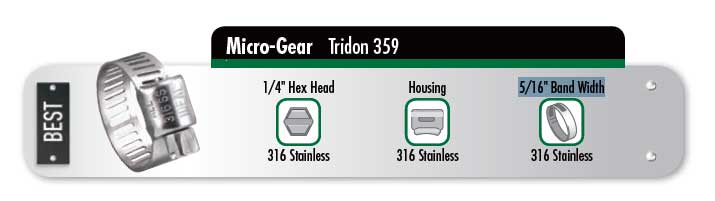

Micro–Gear Tridon 359

1/4" Hex Head : 316 Stainless
Housing : 316 Stainless
5/16" Band Width : 316 Stainless

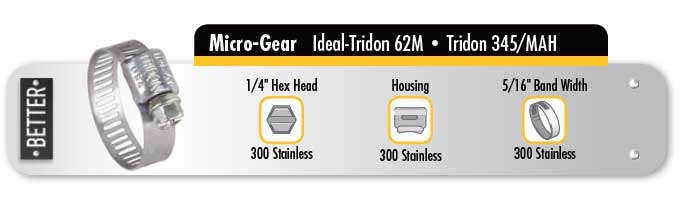

Micro–Gear Tridon 345/MAH


1/4" Hex Head : 300 Stainless
Housing : 300 Stainless
5/16" Band Width : 300 Stainless

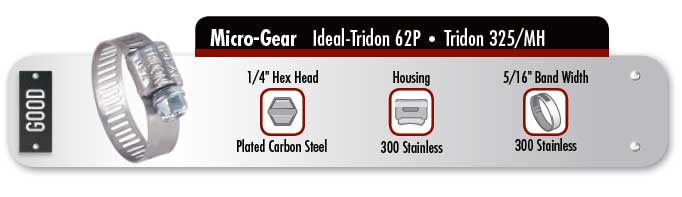

Micro–Gear Tridon 325/MH


1/4" Hex Head : Plated Carbon Steel
Housing : 300 Stainless
5/16" Band Width : 300 Stainless

Size Min (in) Max (in) Min (mm) Max (mm) Tridon 359 Tridon 345/MAH Tridon 325/MH
045/165/8816359–00462604(1)6204(3)
055/163/481962M0562P05
065/167/8822359–00662606(2)6206(4)
087/1611125359–00862M0862P08
101/21–1/161327359–01062M1062P10
129/161–1/4143262M1262P12
1611/161–1/2183862M1662P16
203/41–3/4194462M2062P20
2412265162M2462P24
301–3/82–3/8356062M3062P30
321–1/22–1/2386362M3262P32
361–3/42–3/4457062M3662P36
442–1/43–1/4578262M4462P44
482–1/23–1/2648962M4862P48


COMBO HEX® & MILITARY WORM DRIVE

Combo–Hex clamps are the clamps professional mechanics choose most often. Particularly helpful in hard–to–reach areas, they feature an exclusive, safety–collared, deep–slotted screw design that prevents screwdrivers from slipping and puncturing the hose wall. Combo–Hex clamps can be installed with a screwdriver, nutdriver or socket wrench.

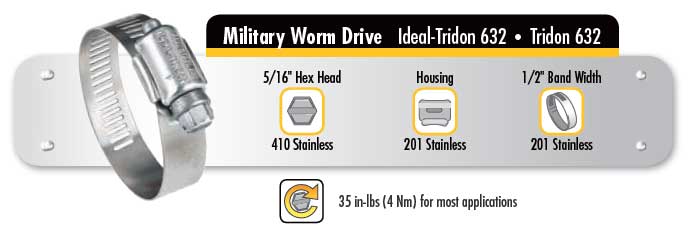

Military Worm Drive Ideal-Tridon 632 Tridon 632


5/16" Hex Head : 410 Stainless
Housing : 201 Stainless
1/2" Band Width : 201 Stainless
Size Min (in) Max (in) Min (mm) Max (mm) Ideal-Tridon 54-0 Ideal-Tridon 632
Tridon 632
63/87/8102254060632–006
87/161112554080
101/21–1/16132754100
121/21–1/4133254120632–012
1611/161–1/2183854160
203/41–3/4194454200
2412255154240632–024
281–1/42–1/4325754280
321–1/22–1/2386354320
363/42–3/4197054360632–036
4013267654400
441–1/43–1/4328354440
482–1/23–1/2648954480*632–048
521–3/43–3/4449554520
56245110154560
603–5/164–1/484108632–060
10447102178632–104**

*Min for 54480 is 1-1/2" 38 mm
**Non-stocking item



SNAPLOCK® QUICK RELEASE

Snaplock Quick Release worm drive clamps are good for closed system applications where the clamp must be disengaged to be applied. The swivel-action locking of screw to band makes installation and removal much faster. All Snaplock housings are 200 stainless steel.

Snaplock Ideal–Tridon 500 • Tridon 500/LS


5/16" Hex Head : Plated Carbon Steel
Housing : 410 Stainless
1/2" Band Width : 200 Stainless

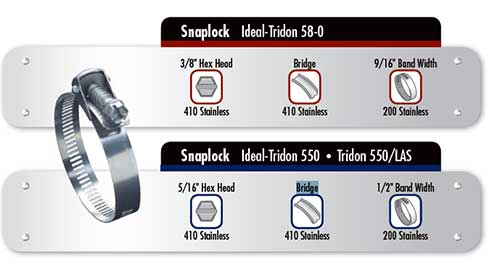

Snaplock Ideal–Tridon 550 • Tridon 550/LAS


5/16" Hex Head : 410 Stainless
Bridge : 410 Stainless
1/2" Band Width : 200 Stainless


LINED

Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner protects the hose surface and prevents it from extruding or shearing through the band notches as the clamp is tightened.

Lined Ideal–Tridon 53–0 • Tridon 613/ET

5/16" Hex Slotted : Plated Carbon Steel
Housing : 200 Stainless
1/2" Lined Band : 200 Stainless
