INDUSTRIAL SMOOTHBORE – PTFE HOSE

PARKER/PAGE International Smoothbore PTFE Hose is specified in many of the most challenging industrial applications. The extruded PTFE tube has excellent flex life, high temperature tolerance and superior chemical resistance. PARKER/PAGE PTFE is steam compatible and non adhesive, making it an excellent choice for applications requiring steam cleaning of an assembly or transfer of highly viscous media such as adhesives and paints.

PARKER/PAGE PTFE hose products are FDA compliant and an ideal choice for food and beverage applications. In addition to high temperature hydraulic and pneumatic systems, such as those found in steel mills, foundries, transit buses and air compressors are examples of industrial applications that showcase PARKER/PAGE hose as a problem solver.

SEAMLESS CONVOLUTED PTFE HOSE

PARKER/PAGE International designs and manufactures high quality seamless convoluted hoses that are open pitched and self draining. Standard seamless PTFE braided hoses are extremely lightweight, flexible and kink resistant. PARKER/PAGE Convoluted Fluoropolymer PTFE hoses are less subsceptible to cracking from stress or flexing than metal hoses or otherFluoroplastic hoses when used within designated operating parameters.

PARKER/PAGE offers two types of PTFE inncercore, natural and conductive (static-dissipative). External hose reinforcements consist of stainless steel, polypropylene and many other metallic and non-metallic braid options including fire sleeve, wire guard and polyolefinheat shrinkable tubing.

• PTFE is Extremely Chemical Resistant - (Non- Corrosive)
• Environmentally Safe - (Low Effusion)
• Non-Adhesive
• Easy Cleaning
• Long Life Expectancy
• Maximum Durability

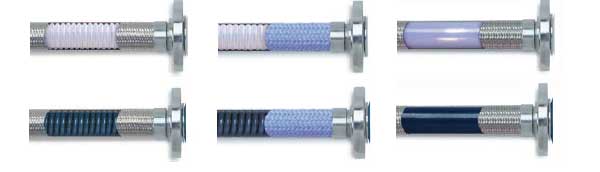

PTFE FLARE-SEAL™ PRODUCTS

Convoluted and Smoothbore

PARKER/PAGE Flare-Seal™ PTFE hose products are designed and manufactured to provide the ultimate in high purity, corrosion/chemical resistance and sanitary applications. PARKER/PAGE Flare-Seal™ PTFE hose products are available in convoluted or smooth True Bore with stainless steel braid or as polypropylene braided convoluted assemblies. They can be manufactured in natural (non-conductive) or black (conductive-static dissipating) assemblies.

One unique benefit offered by PARKER/PAGE Flare-Seal™ hoses is that the PTFE hose liner actually passes through the inside of the fitting and it is then flared over the face of the fitting. This special process is a significant improvement over conventional fitting assembly procedures, where the fitting normally passes through the inside of the liner, creating flow restrictions and bacterial entrapment. PARKER/PAGE Flare-Seal™ products solve these problems with the benefit of unrestricted flow leaving no area for bacterial entrapment while providing 100% PTFE coverage on all wetted surfaces. Flare-Seal™ products can be provided with flanged ends or sanitary tri-clamp end connections.

PLATINUM CURED SILICONE PRODUCTS

As a compliment to our successful Fluoropolymer and Sanitary Food Grade Hoses, PARKER/PAGE has expanded its hose and tubing line to include Platinum Cured Silicone Products. These high quality hoses continue our tradition of total customer satisfaction. PARKER/PAGE Fluoropolymer and Platinum Cured hoses meet or exceed the following requirements:

FDA 21 CFR 177.1550, 177.2600
UPS XXIII Class VI Requirements
European Pharmacopoeia 3.1.9
ISO 10993 Sections 5, 6 10, 11
USDA Standards
3A Standards

SPECIALTY HOSE

PARKER/PAGE is recognized as a world leader in the design and manufacture of custom hoses and fittings. Supreme flexibility, superior bend radius, improved vacuum resistance and increased hose life are just a few of the improvements we have made in our hoses over the last couple of years. As demands in the industry change, so do our products. Our engineers are continually surveying the demands of the market and creating specialty hoses and fittings to ensure our customers success.
