Goodyear Rubber Products

Spray Hose

Name: Spray Hose
Brand: Goodyear Rubber Products
Availability: InStock

Quote Cart: 0 item(s) | View Quote Cart

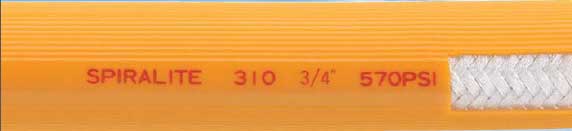

SPIRALITE®310

PVC YELLOW 570 PSI SPRAY HOSE

APPEARANCE/CONSTRUCTION:

Yellow PVC ribbed cover, smooth tube.
Woven fabric reinforcement.

BENEFITS:

Best combination of flexibility,
durability and value.

GENERAL APPLICATIONS:

Agricultural spraying.
Pest control.
Transferring compressed.water and air.

TEMPERATURE RANGE:

10°F to +130°F

STANDARD LENGTHS:

300ft.
1/2" also available in 400ft.

NOMINAL SIZE	inch	1/4" x 1B	3/8" x 1B	1/2" x 1B	5/8" x 1B	3/4" x 1B
INSIDE DIAMETER	inch	19/64	25/64	33/64	40/64	3/4
OUTSIDE DIAMETER	inch	17/32	43/64	13/16	31/32	1-5/64
MAX. WORKING PRESSURE AT 70°F	psi	570	570	570	570	570
DESIGN BURST PRESSURE AT 70°F	psi	1,710	1,710	1,710	1,710	1,710
APPROX. WT.	lbs./300'	24	35	47	64	80

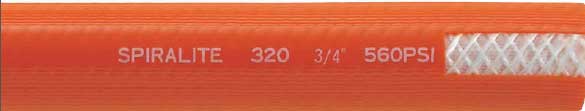

SPIRALITE®320

PVC ORANGE 560 PSI SPRAY HOSE

APPEARANCE/CONSTRUCTION:

Orange PVC ribbed cover, smooth tube.
Spiral yarn reinforcement.

BENEFITS:

Durable and flexible.

GENERAL APPLICATIONS:

Agricultural spraying.
Pest control.
Transferring compressed water and air.

TEMPERATURE RANGE:

10°F to +130°F

STANDARD LENGTHS:

300ft.
3/8" and 1/2" also available in 400ft.

NOMINAL SIZE	inch	3/8" x 4SP	1/2" x 4SP	3/4" x 4SP
INSIDE DIAMETER	inch	25/64	33/64	3/4
OUTSIDE DIAMETER	inch	43/64	13/16	1-5/64
MAX. WORKING PRESSURE AT 70°F	psi	560	560	560
DESIGN BURST PRESSURE AT 70°F	psi	1,710	1,710	1,710
APPROX. WT.	lbs./300'	36	48	80

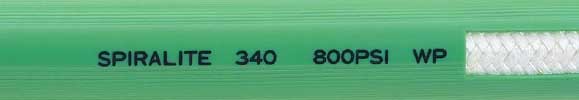

SPIRALITE®340

PVC GREEN 800 PSI SPRAY HOSE

APPEARANCE/CONSTRUCTION:

Green PVC ribbed cover, smooth tube.
Woven fabric reinforcement.

BENEFITS:

High working pressure in a light
weight, flexible package.

GENERAL APPLICATIONS:

Agricultural spraying.
Pest control.
Transferring compressed water and air.

TEMPERATURE RANGE:

10°F to +130°F

STANDARD LENGTHS:

300ft.

NOMINAL SIZE	inch	3/8" x 1B	1/2" x 1B	3/4" x 1B	1" x 1B
INSIDE DIAMETER	inch	25/64	33/64	3/4	1
OUTSIDE DIAMETER	inch	22/32	27/32	1-9/64	1-15/32
MAX. WORKING PRESSURE AT 70°F	psi	800	800	800	800
DESIGN BURST PRESSURE AT 70°F	psi	3,700	3,500	2,700	2,460
APPROX. WT.	lbs./300''	41	54	91	135

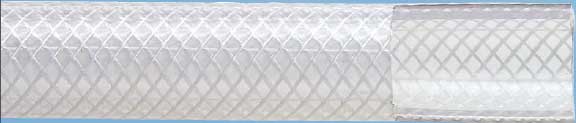

SPIRALITE®410

PVC CLEAR BRAIDED HOSE

APPEARANCE/CONSTRUCTION:

Clear PVC tube with braided
reinforcement.

BENEFITS:

Non-toxic FDA formula.

GENERAL APPLICATIONS:

Transferring compressed liquids and air.
Food processing.
Approved for use in USDA meat
and poultry plants.

TEMPERATURE RANGE:

10°F to +130°F

STANDARD LENGTHS:

1/4" thru 3/4"
300ft. 1" thru 2" 100ft.

NOMINAL SIZE	inch	1/4" x 1B	3/8" x 1B	1/2" x 1B	5/8" x 1B	3/4" x 1B	1" x 1B	11/4" x 1B	11/2" x 1B	2" x 1B
INSIDE DIAMETER	inch	33/128	49/128	33/64	81/128	49/64	1	11/4	11/2	2
OUTSIDE DIAMETER	inch	15/32	5/8	3/4	7/8	1-1/32	1-5/16	1-3/4 2	2-1/2	1-15/32
MAX. WORKING PRESSURE AT 70°F	psi	250	200	200	200	150	125	100	75	75
DESIGN BURST PRESSURE AT 70°F	psi	1000	800	800	800	600	500	400	300	300
APPROX. WT.	lbs./Roll	19.5	32	38	45	61	32	63	74	95

Add to Quote Cart

Applications

Spray Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.

Materials Overview

Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.

Selection Guidance

Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.

Installation and Maintenance Notes

Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.

Industries Served

Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.

Technical Specifications

Existing Technical Claim (Verbatim)
310 PVC YELLOW 570 PSI SPRAY HOSE APPEARANCE/CONSTRUCTION: Yellow PVC ribbed cover, smooth tube.
10°F to +130°F STANDARD LENGTHS: 300ft.
1/2" also available in 400ft.
1/4" x 1B 3/8" x 1B 1/2" x 1B 5/8" x 1B 3/4" x 1B INSIDE DIAMETER inch 19/64 25/64 33/64 40/64 3/4 OUTSIDE DIAMETER inch 17/32 43/64 13/16 31/32 1-5/64 MAX.
70°F psi 570 570 570 570 570 DESIGN BURST PRESSURE AT 70°F psi 1,710 1,710 1,710 1,710 1,710 APPROX.
300' 24 35 47 64 80 SPIRALITE®320 PVC ORANGE 560 PSI SPRAY HOSE APPEARANCE/CONSTRUCTION: Orange PVC ribbed cover, smooth tube.
3/8" and 1/2" also available in 400ft.
3/8" x 4SP 1/2" x 4SP 3/4" x 4SP INSIDE DIAMETER inch 25/64 33/64 3/4 OUTSIDE DIAMETER inch 43/64 13/16 1-5/64 MAX.
70°F psi 560 560 560 DESIGN BURST PRESSURE AT 70°F psi 1,710 1,710 1,710 APPROX.
300' 36 48 80 SPIRALITE®340 PVC GREEN 800 PSI SPRAY HOSE APPEARANCE/CONSTRUCTION: Green PVC ribbed cover, smooth tube.
