One of the biggest challenges in sealing air and coolant connections is being able to counteract thermal expansion and contraction caused by underhood temperature variations. Normal engine vibration alone can promote a leaky situation. The IDEAL-TRIDON® self-adjusting, stainless steel SmartSeal clamps solve this problem. Featuring patented SmartLiner technology on the inside, SmartSeal forms a unique 360 degree seal around joints and prevents leakage of fluid and air when subjected to temperature extremes and vibration. This technology is a whole new way to think about connections. It’s not just a solution – it’s a really smart one.

How SmartSeal Clamp Systems Outperform Standard Clamps

IDEAL-TRIDON SmartSeal Clamp Systems were designed in response to the leakage attributed to thermal cycling, plus today’s challenging lighter weight and space constraints.

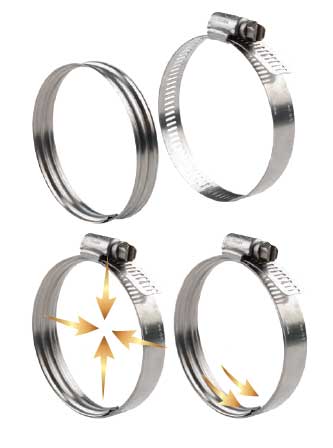

Integrated Two-Piece Design

SmartSeal Clamps are comprised of two main parts, the clamp assembly and the SmartLiner.

• The SmartLiner is a spring liner made of high quality stainless steel integrated inside the clamp
• Designed to be smart, the thin gauge steel expands and contracts around hose with temperature changes
• Clamp rides on top of lubricated liner, distributing pressure more evenly around hose

Tested Tough

Leak pressure tests show that SmartSeal clamps perform better in thermal cycling than typical constant tension clamps and perform better over time when compared to other leading brands in the same category.

A Proven Design Partner

IDEAL-TRIDON® has spent decades engineering the world’s best clamping products, and can provide customized solutions to fit your demanding applications. We offer a wide range of materials to choose from and can engineer a custom clamping product that meets or exceeds your expectations. In fact, our engineers become your engineers. And they are ready to help you find new ways to build stronger, lighter and more compact clamping assemblies today or for a future project.

IDEAL-TRIDON SmartSeal Clamp Systems are engineered to last longer, and perform better than traditional hose clamps in the most demanding environments.

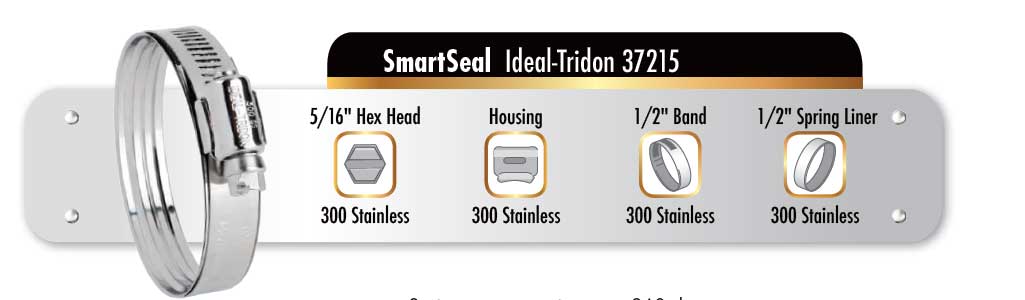

SmartSeal Ideal-Tridon 37215

• 5/16" Hex Head 300 Stainless
• Housing 300 Stainless
• 1/2" Band 300 Stainless
• 1/2" Spring Liner 300 Stainless

• Spring compensation over 360 degrees
• Improved clamp roundness eliminates leak paths at housing juncture
• Trough-shaped design creates higher pressure loading compared to conventional worm gear, increasing resistance against potential leaks
• Trough shape helps clamp “grip” by penetrating deeper into the hose wall over a narrower cross-section (footprint)

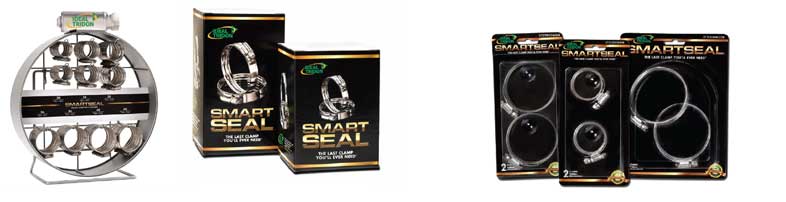

SmartSeal Profit Center Kits

If you’re looking to display your SmartSeal clamps, we offer an attractive profit center kit. This kit includes:

• SmartSeal Clamp Rack: holds 50 clamps and comes with peg-board hooks
• SmartSeal Clamps: 50 clamps in five 10-piece sub pack boxes in sizes 20, 24, 28, 36, and 40
• SmartSeal Blister Assortment with Clip Strip: comes with ten SmartSeal blister packs, two each of size 20, 24, 28, 36, and 40

SmartSeal Packaging

SmartSeal Clamps are available in 10-piece sub packs (with or without barcode), bulk, and in handy blister packs. The blister packs are clearly imprinted with the individual part number and sizing, while allowing your customers to view the latest in sealing technology for themselves!

FIND YOUR PROFIT CENTER PART NUMBER

* For barcoded clamps replace 051 with 053

FIND YOUR BLISTER PART NUMBER

FIND YOUR SMARTSEAL CLAMP PART NUMBER

Note: We offer custom assembly clips for easy installation via automation. Available in 1/2" and 10 mm band widths.
