Camlock

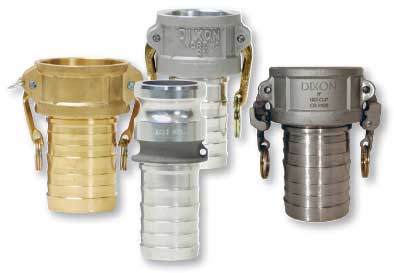

Cam and Groove

• Dixon® type C couplers
• EZ Boss-Lock™ type C couplers
• Dixon® type E adapters
• global type C couplers
• global type E adapters

• 356T6 aluminum
• brass
• 316 stainless steel
• unplated ductile iron

EZLink™ Armless Cam and Groove

• automatic couplers push-to-connect providing a reliable connection
• coupler tabs cannot be pushed to disconnect when pressurized to 20 PSI or over
• low profile allows easy connection and disconnection in tight applications
• coupler push tabs can be locked with safety pins and/or zip tie

• maximum working pressure with King Crimp™ ferrules: 250 PSI (2"), 150 PSI (3" and 4")
• maximum working pressure with crimp sleeves: 110 PSI
• maximum working pressure with band clamps: 100 PSI
• gasket temperature range: 5°F to 180°F (-15°C to 82°C)

Vent-Lock™ Safety Cam and Groove

• safety release cam and groove couplings permit the release of static pressure when disconnecting hose assemblies
• venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• rated to 250 PSI, recommendation based on the use of mating Dixon™ L-style fittings at ambient temperature 70°F (21°C) with standard Buna-N seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon™
  • 1", 1½" and 2" sizes have a maximum working pressure of 250 PSI
  • 3" maximum working pressure 150 PSI with King Crimp™ ferrules, crimp sleeves and bands at 125 PSI
• does not interchange with standard cam & groove products use only with Vent-Lock™ L-style fittings

Boss-Lock™ Cam and Groove

• Cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a patented safety feature. The clips prevent the coupler from being unlocked until they are removed, providing a positive locking action.
• Boss-Lock™ investment stainless steel cam arms are guaranteed! Should you break a Boss-Lock™ investment stainless steel cam arm, return it to the nearest warehouse for a free replacement.
• The pull ring safety clip simplifies the locking action on Boss-Lock™ couplers. No more inserting clips or dangling lanyards, just a twist and it's locked.

EZ Boss-Lock™ Cam and Groove

• no more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged
• ergonomic and extremely easy to open, the release lever is under your thumb when you want to open the fitting
• resistant to accidental disconnection when being dragged; the release lever opens in the direction opposite to the cam arm, so movements that can open the release lever also can close the cam arm
• if the rotating lever is not flush with the handle, it is not properly engaged
• no sliding pins to jam or pop open
• rotating action helps keep the locking device free of debris
• EZ Boss-Lock™ investment stainless steel cam arms are guaranteed! Should you break a EZ Boss-Lock™ investment stainless steel cam arm, return it to the nearest warehouse for a free replacement.
• can be supplied with custom shanks, also available with swaged and PF shanks for hard to couple chemical hoses
• small OD makes it easy to insert into the hose tubes on tank trucks and to use in restricted spaces
• assemblies can be retrofitted onto undamaged stainless steel Boss-Lock™ allowing you to protect your investment in stainless steel Boss-Lock™ couplings while you upgrade
