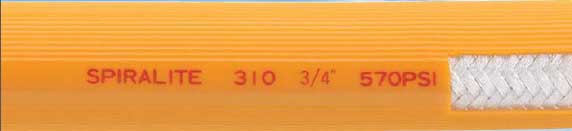

SPIRALITE®310
PVC YELLOW 570 PSI SPRAY HOSE
APPEARANCE/CONSTRUCTION:
Yellow PVC ribbed cover, smooth tube.
Woven fabric reinforcement.
BENEFITS:
Best combination of flexibility,
durability and value.
GENERAL APPLICATIONS:
Agricultural spraying.
Pest control.
Transferring compressed.water and air.
TEMPERATURE RANGE:
10°F to +130°F
STANDARD LENGTHS:
300ft.
1/2" also available in 400ft.
| NOMINAL SIZE |
inch |
1/4" x 1B |
3/8" x 1B |
1/2" x 1B |
5/8" x 1B |
3/4" x 1B |
| INSIDE DIAMETER |
inch |
19/64 |
25/64 |
33/64 |
40/64 |
3/4 |
| OUTSIDE DIAMETER |
inch |
17/32 |
43/64 |
13/16 |
31/32 |
1-5/64 |
| MAX. WORKING PRESSURE AT 70°F |
psi |
570 |
570 |
570 |
570 |
570 |
| DESIGN BURST PRESSURE AT 70°F |
psi |
1,710 |
1,710 |
1,710 |
1,710 |
1,710 |
| APPROX. WT. |
lbs./300' |
24 |
35 |
47 |
64 |
80 |

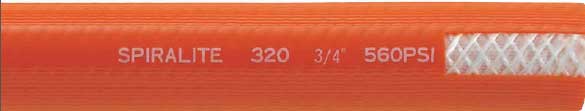

SPIRALITE®320
PVC ORANGE 560 PSI SPRAY HOSE
APPEARANCE/CONSTRUCTION:
Orange PVC ribbed cover, smooth tube.
Spiral yarn reinforcement.
BENEFITS:
Durable and flexible.
GENERAL APPLICATIONS:
Agricultural spraying.
Pest control.
Transferring compressed water and air.
TEMPERATURE RANGE:
10°F to +130°F
STANDARD LENGTHS:
300ft.
3/8" and 1/2" also available in 400ft.
| NOMINAL SIZE |
inch |
3/8" x 4SP |
1/2" x 4SP |
3/4" x 4SP |
| INSIDE DIAMETER |
inch |
25/64 |
33/64 |
3/4 |
| OUTSIDE DIAMETER |
inch |
43/64 |
13/16 |
1-5/64 |
| MAX. WORKING PRESSURE AT 70°F |
psi |
560 |
560 |
560 |
| DESIGN BURST PRESSURE AT 70°F |
psi |
1,710 |
1,710 |
1,710 |
| APPROX. WT. |
lbs./300' |
36 |
48 |
80 |

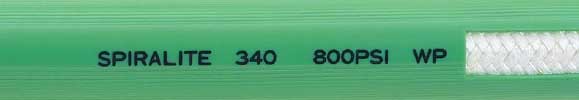

SPIRALITE®340
PVC GREEN
800 PSI SPRAY HOSE
APPEARANCE/CONSTRUCTION:
Green PVC ribbed cover, smooth tube.
Woven fabric reinforcement.
BENEFITS:
High working pressure in a light
weight, flexible package.
GENERAL APPLICATIONS:
Agricultural spraying.
Pest control.
Transferring compressed water and air.
TEMPERATURE RANGE:
10°F to +130°F
STANDARD LENGTHS:
300ft.
| NOMINAL SIZE |
inch |
3/8" x 1B |
1/2" x 1B |
3/4" x 1B |
1" x 1B |
| INSIDE DIAMETER |
inch |
25/64 |
33/64 |
3/4 |
1 |
| OUTSIDE DIAMETER |
inch |
22/32 |
27/32 |
1-9/64 |
1-15/32 |
| MAX. WORKING PRESSURE AT 70°F |
psi |
800 |
800 |
800 |
800 |
| DESIGN BURST PRESSURE AT 70°F |
psi |
3,700 |
3,500 |
2,700 |
2,460 |
| APPROX. WT. |
lbs./300'' |
41 |
54 |
91 |
135 |

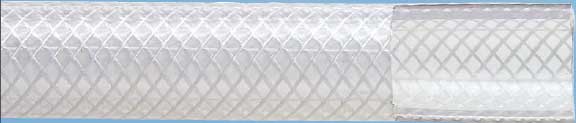

SPIRALITE®410
PVC CLEAR BRAIDED HOSE
APPEARANCE/CONSTRUCTION:
Clear PVC tube with braided
reinforcement.
BENEFITS:
Non-toxic FDA formula.
GENERAL APPLICATIONS:
Transferring compressed liquids
and air.
Food processing.
Approved for use in USDA meat
and poultry plants.
TEMPERATURE RANGE:
10°F to +130°F
STANDARD LENGTHS:
1/4" thru 3/4"
300ft.
1" thru 2" 100ft.
| NOMINAL SIZE |
inch |
1/4" x 1B |
3/8" x 1B |
1/2" x 1B |
5/8" x 1B |
3/4" x 1B |
1" x 1B |
11/4" x 1B |
11/2" x 1B |
2" x 1B |
| INSIDE DIAMETER |
inch |
33/128 |
49/128 |
33/64 |
81/128 |
49/64 |
1 |
11/4 |
11/2 |
2 |
| OUTSIDE DIAMETER |
inch |
15/32 |
5/8 |
3/4 |
7/8 |
1-1/32 |
1-5/16 |
1-3/4 2 |
2-1/2 |
1-15/32 |
| MAX. WORKING PRESSURE AT 70°F |
psi |
250 |
200 |
200 |
200 |
150 |
125 |
100 |
75 |
75 |
| DESIGN BURST PRESSURE AT 70°F |
psi |
1000 |
800 |
800 |
800 |
600 |
500 |
400 |
300 |
300 |
| APPROX. WT. |
lbs./Roll |
19.5 |
32 |
38 |
45 |
61 |
32 |
63 |
74 |
95 |
|
