Steam
Refer to ARPM IP-11-1 as a guide for use, testing, and inspection of Steam Hose. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexsteel® 250 EPDM-20 Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
The Flexsteel® 250 EPDM-20 features the superior performance of the Flexsteel 250 Steam Hose series enhanced with the increased design ratio of 20:1 This exceeds the ARPM safety standard and makes steam operations more secure and user-friendly The hose has a maximum operating pressure of 250 psi with a temperature range of -40°F to 450°F Construction> Tube Pyrosyn® synthetic rubber > CoverRed wrapped Pyrosyn®, pin-pricked > ReinforcementBraided steel wire (3/4" and larger have 2 steel wire braids) |
Temperature Range
-40°F to 450°F (-40°C to 232°C) PackagingBulk, cut lengths, coupled assemblies BrandingExample: Continental ContiTech Flexsteel® 250 EPDM-20 Steam 250 psi Made in USA CouplingsRefer to the ContiTech Industrial Hose Assembly Manual for crimp specifications Coupled assemblies available Order Codes539-486 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexsteel® 250 EPDM-20
Hose design ratio (burst pressure) 20:1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

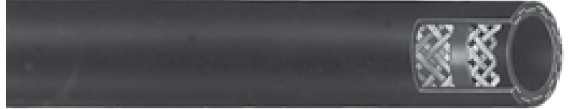

Flexsteel® 250 SteamProduct Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
Flexsteel® 250 is for cleaning, heat control, fire prevention, pumping, thawing, blow-out service, steam pumps and hoists in open-end or permanent installation operations It is used in refineries, shipyards, chemical plants, steel mills, foundries and heavy industrial applications where high strength is required and where severe environmental conditions are encountered Construction> Tube Pyrosyn® synthetic rubber > CoverBlack or red Pyrosyn® finish, pin-pricked > ReinforcementOne or two steel wire braids Temperature Range-40°F to 450°F (-40°C to 232°C)) |
Packaging
Reels or 50' cut lengths (1/2" – 4 per box, 3/4" – 3 per box, 1" – 2 per box) BrandingExample: Continental ContiTech Flexsteel® 250 Steam Max WP 250 psi Made in USA CouplingsRefer to the ContiTech Industrial Hose Assembly Manual for crimp specifications Coupled assemblies available Order Codes539-070 (black) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hose design ratio (burst pressure) 10:1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
Steam Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 266 -40°F to 450°F Yes Yes Red/Black Yes DAMPF Trix 6000 Steam 272 Max. |
| 269 0°F to 425°F Yes Black Yes Flexsteel 250 Steam 265 -40°F to 450°F Yes Yes Red/Black Yes Heavy Duty Steam Pile Driver 271 -40°F to 406°F Yes Red/Black MIL-D |
| 29210E Steam 273 0°F to 406°F Yes Black Plicord 250 Steam 270 0°F to 406°F Yes Red/Black Refer to ARPM IP-11-1 as a guide for use, testing, and inspection of Steam Hose. |
| 250 psi with a temperature range of -40°F to 450°F Construction > Tube Pyrosyn® synthetic rubber > Cover Red wrapped Pyrosyn®, pin-pricked > |
| 250 EPDM-20 Steam 250 psi Made in USA Couplings Refer to the ContiTech Industrial Hose Assembly Manual for crimp specificatio |
| 539-486 Flexsteel® 250 EPDM-20 SAP # ID Nom. |
| 40°F to 450°F (-40°C to 232°C)) Packaging Reels or 50' cut lengths (1/2" – 4 per box, 3/4" – 3 per box, 1" – |
| 076 (red) 539-470 (black wrapped) 539-476 (red wrapped) 559-201 (2" black wrapped) 559-202 (2" red wrapped) Flexsteel® 250 EPDM-20 SAP # ID Nom. |
