Ortac®
Product Specifications |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application

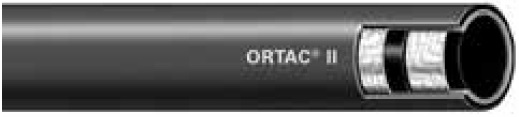

Ortac® (Oil-Resistant Tube and Cover) is our most popular premium-quality multipurpose hose. Used in the most abusive industrial applications, Ortac® will handle air, oil, water, kerosene and some chemicals. The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC. Available in 250, 300 and 400 psi working pressures. Note: Ortac® 400 Yellow is USMSHA approved. Construction> Tube Nitrile synthetic rubber, ARPM Class A (High Oil Resistance) > CoverRed or yellow Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) >ReinforcementSpiral synthetic yarn, 2” is braided |
Temperature Range
-20°F to 210°F (-29°C to 99°C) Packaging90% one-piece reels up to 1” Example: 1½” (38.1 mm) Ortac® 300 psi WP Made in USA Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Order CodesSee next page. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ortac® 250
Order Codes: 569-058 (1/4”–1½” red), 536-465 (2” red), 536-010 (2" black)
Ortac® 300 Order Codes: 569-059 (red)
Ortac® 400 Order Codes: 569-065 (yellow, USMSHA rated), 569-066 (red)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
Ortac Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 1 megohm per inch of hose length at 1000 volts DC. |
| 250, 300 and 400 psi working pressures. |
| 2” is braided Temperature Range -20°F to 210°F (-29°C to 99°C) Packaging 90% one-piece reels up to 1” 3/16”–3/4” – 500' reels, ma |
| 1 mm) Ortac® 300 psi WP Made in USA Continental ContiTech Couplings Refer to the ContiTech Industrial Hose Assembly Manu |
| 250 Order Codes: 569-058 (1/4”–1½” red), 536-465 (2” red), 536-010 (2" black) SAP # ID Nom. |
| 61 Ortac® 300 Order Codes: 569-059 (red) SAP # ID Nom. |
| 31 Ortac® 400 Order Codes: 569-065 (yellow, USMSHA rated), 569-066 (red) SAP # ID Nom. |
