FLEX–GEAR®
Flex–Gear clamps use a Belleville spring design to eliminate “cold flow” leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex–Gear clamps are an excellent choice for fluctuating temperature applications and thermal compensation. Features and Benefits: Belleville spring and clamp construction is built to respond to constant temperature fluctuations. The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. Inner liner protects against shearing of the hose surfaces.
|

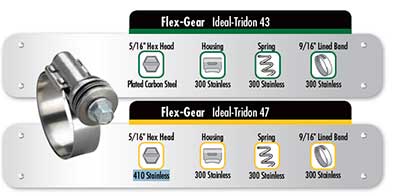

Flex–Gear Ideal–Tridon 43
5/16" Hex Head Plated Carbon Steel
Housing 300 Stainless
Spring 300 Stainless
9/16" Lined Band 300 Stainless
Flex–Gear Ideal–Tridon 47
5/16" Hex Head 410 Stainless
Housing 300 Stainless
Spring 300 Stainless
9/16" Lined Band 300 Stainless

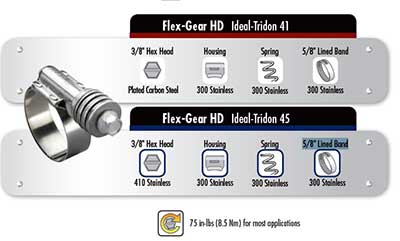

Flex–Gear HD Ideal–Tridon 41
3/8" Hex Head Plated Carbon Steel
Housing 300 Stainless
Spring 300 Stainless
5/8" Lined Band 300 Stainless
Flex–Gear HD Ideal–Tridon 45
3/8" Hex Head 410 Stainless
Housing 300 Stainless
Spring 300 Stainless
5/8" Lined Band 300 Stainless
|
|
SPRING LOADED T–BOLTS
Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, offroad equipment, agricultural irrigation and machinery. Features a spring-loaded t-bolt assembly, a 3/4" wide stainless steel band and welded construction for reliability.
|

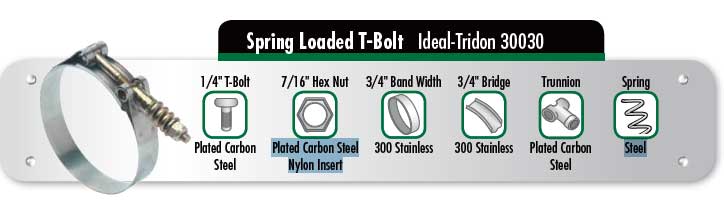

Spring Loaded T–Bolt Ideal–Tridon 30030
1/4" T-Bolt Plated Carbon Steel
7/16" Hex Nut Plated Carbon Steel Nylon Insert
3/4" Band Width 300 Stainless
3/4" Bridge 300 Stainless
Trunnion Plated Carbon Steel
Spring Steel
|
 |
| Size |
Min (in) |
Max (in) |
Min (mm) |
Max (mm) |
Ideal-Tridon 30030 |
| 225 | 2.250 | 2.563 | 57.2 | 65.1 | 30030–0225
| | 275 | 2.750 | 3.063 | 69.9 | 77.8 | 30030–0275
| | 300 | 3.000 | 3.313 | 76.2 | 84.1 | 30030–0300
| | 306 | 3.063 | 3.375 | 77.8 | 85.7 | 30030–0306
| | 313 | 3.125 | 3.438 | 79.4 | 87.3 | 30030–0313
| | 325 | 3.250 | 3.563 | 82.6 | 90.5 | 30030–0325
| | 338 | 3.375 | 3.688 | 85.7 | 93.7 | 30030–0338
| | 350 | 3.500 | 3.813 | 88.9 | 96.8 | 30030–0350
| | 356 | 3.563 | 3.875 | 90.5 | 98.4 | 30030–0356
| | 363 | 3.625 | 3.938 | 92.1 | 100.0 | 30030–0363
| | 375 | 3.750 | 4.063 | 95.3 | 103.2 | 30030–0375
| | 400 | 4.000 | 4.313 | 101.6 | 109.5 | 30030–0400
| | 406 | 4.063 | 4.375 | 103.2 | 111.1 | 30030–0406
| | 425 | 4.250 | 4.563 | 108.0 | 115.9 | 30030–0425
| | 450 | 4.500 | 4.813 | 114.3 | 122.2 | 30030–0450
| | 456 | 4.563 | 4.875 | 115.9 | 123.8 | 30030–0456
| | 475 | 4.750 | 5.063 | 120.7 | 128.6 | 30030–0475
| | 500 | 5.000 | 5.313 | 127.0 | 134.9 | 30030–0500
| | 506 | 5.063 | 5.375 | 128.6 | 136.5 | 30030–0506
| | 525 | 5.250 | 5.563 | 133.4 | 141.3 | 30030–0525
| | 550 | 5.500 | 5.813 | 139.7 | 147.6 | 30030–0550
| | 575 | 5.750 | 6.063 | 146.1 | 154.0 | 30030–0575
| | 625 | 6.250 | 6.563 | 158.8 | 166.7 | 30030–0625
| | 650 | 6.500 | 6.813 | 165.1 | 173.0 | 30030–0650
| | 750 | 7.500 | 7.813 | 190.5 | 198.4 | 30030–0750 |
|
|
|
T–BOLTS – NOMINAL DIAMETERS
Nominal Diameter Sized T-bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery. Easy to interchange competitors part numbers.
30050 Standard T-Bolt
1/4" T-Bolt Plated Carbon Steel
7/16" Hex Nut Plated Carbon Steel Nylon Insert
3/4" Band 300 Stainless
3/4" Bridge 300 Stainless
Trunnion Plated Carbon Steel
30051 Standard T-Bolt
1/4" T-Bolt 300 Stainless
7/16" Hex Nut 300 Stainless Nylon Insert
3/4" Band 300 Stainless
3/4" Bridge 300 Stainless
Trunnion 300 Stainless
| Nominal Diameter (in) |
Nominal Diameter (mm) |
Min (in) |
Max (in) |
Min (mm) |
Max (mm) |
Ideal-Tridon 30050 |
Ideal-Tridon 30051 |
| 1.31 | 33.3 | 1.25 | 1.41 | 31.8 | 35.7 | 30050–0131 | 30051–0131
| | 1.50 | 38.1 | 1.34 | 1.56 | 34.1 | 39.7 | 30050–0150 | 30051–0150
| | 1.63 | 41.4 | 1.47 | 1.69 | 37.4 | 43.0 | 30050–0163 | 30051–0163
| | 1.75 | 44.5 | 1.59 | 1.81 | 40.5 | 46.0 | 30050–0175 | 30051–0175
| | 1.88 | 47.8 | 1.72 | 1.94 | 43.8 | 49.3 | 30050–0188 | 30051–0188
| | 2.00 | 50.8 | 1.84 | 2.06 | 46.8 | 52.4 | 30050–0200 | 30051–0200
| | 2.12 | 53.8 | 1.96 | 2.18 | 49.9 | 55.4 | 30050–0212 | 30051–0212
| | 2.25 | 57.2 | 2.09 | 2.31 | 53.2 | 58.7 | 30050–0225 | 30051–0225
| | 2.38 | 60.5 | 2.22 | 2.44 | 56.5 | 62.0 | 30050–0238 | 30051–0238
| | 2.50 | 63.5 | 2.34 | 2.56 | 59.5 | 65.1 | 30050–0250 | 30051–0250
| | 2.56 | 65.0 | 2.33 | 2.62 | 59.1 | 66.6 | 30050–0256 | 30051–0256
| | 2.63 | 66.8 | 2.40 | 2.69 | 60.9 | 68.4 | 30050–0263 | 30051–0263
| | 2.75 | 69.9 | 2.52 | 2.81 | 63.9 | 71.4 | 30050–0275 | 30051–0275
| | 2.88 | 73.2 | 2.65 | 2.94 | 67.2 | 74.7 | 30050–0288 | 30051–0288
| | 3.00 | 76.2 | 2.77 | 3.06 | 70.3 | 77.8 | 30050–0300 | 30051–0300
| | 3.12 | 79.2 | 2.87 | 3.18 | 72.8 | 80.8 | 30050–0312 | 30051–0312
| | 3.25 | 82.6 | 3.02 | 3.31 | 76.6 | 84.1 | 30050–0325 | 30051–0325
| | 3.50 | 88.9 | 3.27 | 3.56 | 83.0 | 90.5 | 30050–0350 | 30051–0350
| | 3.62 | 91.9 | 3.39 | 3.68 | 86.0 | 93.5 | 30050–0362 | 30051–0362
| | 3.75 | 95.3 | 3.52 | 3.81 | 89.3 | 96.8 | 30050–0375 | 30051–0375
| | 3.82 | 97.0 | 3.59 | 3.88 | 91.1 | 98.6 | 30050–0382 | 30051–0382
| | 4.00 | 101.6 | 3.77 | 4.06 | 95.7 | 103.2 | 30050–0400 | 30051–0400
| | 4.25 | 108.0 | 4.02 | 4.31 | 102.0 | 109.5 | 30050–0425 | 30051–0425
| | 4.50 | 114.3 | 4.27 | 4.56 | 108.4 | 115.9 | 30050–0450 | 30051–0450
| | 4.75 | 120.7 | 4.52 | 4.81 | 114.7 | 122.2 | 30050–0475 | 30051–0475
| | 5.00 | 127.0 | 4.77 | 5.06 | 121.1 | 128.6 | 30050–0500 | 30051–0500
| | 5.25 | 133.4 | 5.02 | 5.31 | 127.4 | 134.9 | 30050–0525 | 30051–0525
| | 5.50 | 139.7 | 5.27 | 5.56 | 133.8 | 141.3 | 30050–0550 | 30051–0550
| | 5.75 | 146.1 | 5.52 | 5.81 | 140.1 | 147.6 | 30050–0575 | 30051–0575
| | 6.00 | 152.4 | 5.77 | 6.06 | 146.5 | 154.0 | 30050–0600 | 30051–0600
| | 6.25 | 158.8 | 6.02 | 6.31 | 152.8 | 160.3 | 30050–0625 | 30051–0625
| | 6.50 | 165.1 | 6.27 | 6.56 | 159.2 | 166.7 | 30050–0650 | 30051–0650
| | 6.75 | 171.5 | 6.52 | 6.81 | 165.5 | 173.0 | 30050–0675 | 30051–0675
| | 7.00 | 177.8 | 6.77 | 7.06 | 171.9 | 179.4 | 30050–0700 | 30051–0700
| | 7.25 | 184.2 | 7.02 | 7.31 | 178.2 | 185.7 | 30050–0725 | 30051–0725
| | 7.50 | 190.5 | 7.27 | 7.56 | 184.6 | 192.1 | 30050–0750 | 30051–0750
| | 8.00 | 203.2 | 7.77 | 8.06 | 197.3 | 204.8 | 30050–0800 | 30051–0800
| | 8.25 | 209.6 | 8.02 | 8.31 | 203.6 | 211.1 | 30050–0825 | 30051–0825
| | 8.50 | 215.9 | 8.27 | 8.56 | 210.0 | 217.5 | 30050–0850 | 30051–0850
| | 8.88 | 225.6 | 8.65 | 8.94 | 219.6 | 227.1 | 30050–0888 | 30051–0888
| | 9.00 | 228.6 | 8.77 | 9.06 | 222.7 | 230.2 | 30050–0900 | 30051–0900
| | 9.50 | 241.3 | 9.27 | 9.56 | 235.4 | 242.9 | 30050–0950 | 30051–0950
| | 10.00 | 254.0 | 9.77 | 10.06 | 248.1 | 255.6 | 30050–1000 | 30051–1000
| | 10.88 | 276.4 | 10.65 | 10.94 | 270.4 | 277.9 | 30050–1088 | 30051–1088
| | 12.00 | 304.8 | 11.77 | 12.06 | 298.9 | 306.4 | 30050–1200 | 30051–1200
| | 12.88 | 327.2 | 12.65 | 12.94 | 321.2 | 328.7 | 30050–1288 | 30051–1288 |
|
