Plicord® SAE J1527 Type A2 Fuel Fill
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Specifications Application The Plicord® SAE J1527 Type A2, ISO 7840 and CE Fuel Fill hose is for marine gasoline tanks. It is the connection from the boat's fuel fill port down to the boat's fuel tank. Construction > TubeNitrile synthetic rubber ARPM Class A (High Oil Resistance) > CoverChemivic synthetic rubber (wrapped impression) >ReinforcementSpiral-plied synthetic fabric with wire helix |
Temperature Range
-20°F to 180°F (-29°C to 82°C) Packaging50' exact lengths, coiled and poly-wrapped BrandingExample: Continental ContiTech Plicord® SAE J1527 USCG Type A2 ISO 7840 CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Order Codes543-414 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Marine Fuel Line USCG/SAE J1527 & ISO 7840 Type A1
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Specifications Application For marine gasoline tanks. For fuel feed and vent applications on marine pleasure craft. It meets U.S. Coast Guard and International Marine Certification Institute requirements for Type A1 service. Construction< Tube Black nitrile synthetic rubber ARPM Class A (High Oil Resistance) < CoverBlack Chemivic synthetic rubber < ReinforcementSpiral synthetic yarn |
Temperature Range
0°F to 115°F (-17&;C to 46°C) Packaging200' reels, maximum 3 pieces, increments of 50' BrandingExample: Continental ContiTech USCG/SAE J 1527 Type A1 ISO 7840-A1 CE CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Order Codes595-032 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

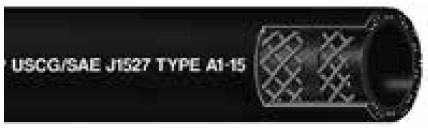

Flexshield™ SAE J1527 USCG Type A1-15 / ISO 7840 Marine Barrier Hose
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Specifications Application This hose is designed for marine gasoline tanks for fuel feed and vent applications on marine pleasure craft. Its barrier style construction meets the new EPA requirements for low permeation class A1-15 marine fuel lines. The fireresistant cover provides a minimum 2f-minute of fire resistivity for USCG Type A Service. Construction>Tube Black Chemivic synthetic rubber >Cover Nitrile synthetic rubber >Reinforcement Polyester spiral with nylon barrier Temperature Range -20°F to 180°F (-29°C to 82°C) |
Packaging
Reels BrandingExample: Flexshield™ 5412 3/8” SAE J1527 USCG Type A1-15 / ISO 7840-A1 CE Continental ContiTech Couplings Contact fitting manufacturer for proper fitting recommendation and coupling procedure. Non-Stock/Sizes Contact a ContiTech representative for special production run minimum requirements and private label options. Order Codes 1/4” – 475–412–008 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
Fuel Fill Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 20°F to 180°F (-29°C to 82°C) Packaging 50' exact lengths, coiled and poly-wrapped Branding Example: Continental ContiTech Pli |
| 543-414 SAP # ID Nom. |
| 0°F to 115°F (-17&;C to 46°C) Packaging 200' reels, maximum 3 pieces, increments of 50' Branding Example: Continental ContiTec |
| 595-032 SAP # ID Nom. |
| 20°F to 180°F (-29°C to 82°C) Packaging Reels Branding Example: Flexshield™ 5412 3/8” SAE J1527 USCG Type A1-15 / |
| 008 5/16” – 475–412–010 3/8” – 475–412–012 1/2” – 475–412–016 SAP # ID Nom. |
