100 SERIES TAPERED D-SHAPE / KEY BORE
The Duramax® Tapered D-shaped, Key-bore is designed for marine and industrial applications. Provides protection for small vessels, docks, loading docks, trucks and other equipment. Offered in three EPDM colors: black, non-marking grey, and white. Also see our 90 degree molded corner guard/end caps and poly washer strips.
| CODE NO. |
DURAMAX® PART NO. |
BASE WIDTH (W) |
HEIGHT (H) |
WALL THICKNESS |
WT./FT. |
LENGTH Up TO |
| DB-50 | 802005001 | 2 1/8” | 2” | 7/16” | 1.2 LBS. | 60FT.
| | DB-75 | 802007501 | 3 1/8” | 2 7/8” | 11/16” | 2.6 LBS. | 60 FT.
| | DB-100 | 802009001 | 4 1/4” | 3 7/8” | 3/4” | 5.1 LBS. | 60 FT. |
|

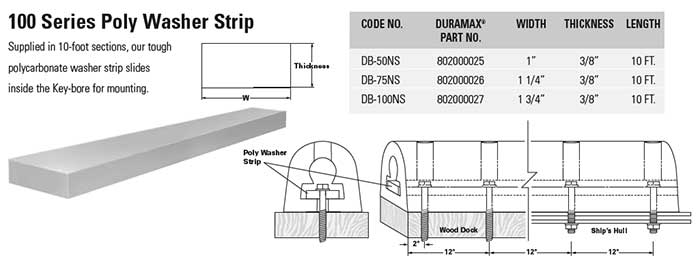

100 Series Poly Washer Strip
100 Series Poly Washer Strip Supplied in 10-foot sections, our tough polycarbonate washer strip slides inside the Key-bore for mounting.
|
| CODE NO. |
DURAMAX® PART NO. |
WIDTH |
THICKNESS |
LENGTH |
| DB-50NS | 802000025 | 1” | 3/8” | 10FT.
| | DB-75NS | 802000026 | 1 1/4” | 3/8” | 10FT.
| | DB-100NS | 802000027 | 1 3/4” | 3/8” | 10FT. |
|
|
90° Molded Insert Corners / End Caps
Insert the legs of these molded EPDM corners into the bore of the DB 50, 75 and 100 for a 90 degree corner. Or one side of the insert may be cut off and used to mount flush to vessel or structure and cap off the end of the extrusion. Stocked in black, grey and white.
|
| CODE NO. |
DURAMAX® PART NO. |
COLOR |
| DB-51 | 802005101 | BLACK
| | DB-52 | 802005202 | GREY
| | DB-53 | 802005303 | WHITE
| | DB-76 | 802007601 | BLACK
| | DB-77 | 802007702 | GREY
| | DB-78 | 802007803 | WHITE
| | DB-103 | 802009301 | BLACK
| | DB-104 | 802009402 | GREY
| | DB-105 | 802009503 | WHITE |
|

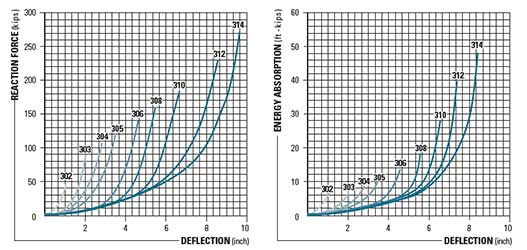

300 SERIES RECTANGULAR / O-BORE
Mounted vertically or horizontally to provide good protection to docks and vessels. Typical mounting is in a channel with through hole across the base of fender. Offered in three EPDM colors: black, non-marking grey and white.
|
|
| CODE NO. |
DURAMAX® PART NO. |
BASE WIDTH (W) |
HEIGHT (H) |
WALL THICKNESS |
WT./FT. |
LENGTH Up TO |
| DB-302 | 802030201 | 2” | 4” | SOLID | 3.9LBS. | 60FT.
| | DB-303 | 802030301 | 3½” | 4½” | 1” | 8LBS. | 60FT.
| | DB-304 | 802030401 | 5” | 5” | 2½” | 9.8LBS. | 60FT.
| | DB-305 | 802030501 | 5” | 6½” | 2 ½” | 13LBS. | 40FT.
| | DB-305A | 802030511 | 5½” | 6” | 2½” | 13.9LBS. | 40FT.
| | DB-306 | 802030601 | 6” | 6 ½” | 2 ½” | 17.4LBS. | 20FT.
| | DB-306A | 802030611 | 6” | 6” | 2 7/8” | 14.6LBS. | 20FT.
| | DB-306B | 802030621 | 6” | 7” | 2 ½” | 18LBS. | 20FT.
| | DB-307 | 802030701 | 7” | 10” | 3” | 34.1LBS. | 20FT.
| | DB-307A | 802030711 | 7” | 10” | 3 ½” | 30LBS. | 20FT.
| | DB-308 | 802030801 | 8” | 8” | 3” | 28.2LBS. | 20FT.
| | DB-309 | 802030901 | 8” | 10” | 3” | 39.5LBS. | 20FT.
| | DB-309A | 802030911 | 9” | 10” | SOLID | 50.7LBS. | 20FT.
| | DB-310 | 802031001 | 10” | 10” | 4” | 42.4LBS. | 20FT.
| | DB-311 | 802031101 | 10” | 12” | 4” | 60LBS. | 20FT.
| | DB-312 | 802031201 | 12” | 12” | 5” | 65LBS. | 20FT.
| | DB-313 | 802031301 | 12” | 12” | 4” | 68.5LBS. | 20FT.
| | DB-314 | 802031401 | 14” | 14” | 6” | 83LBS. | 20FT. |
|

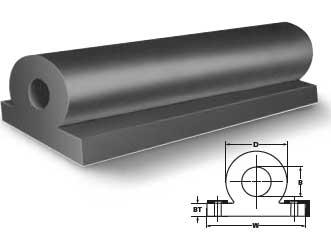

400 SERIES WING TYPE O-BORE
Designed for easy attachment to vessels and docks. Drill and bolt fender to structure using the integral wings. Eliminates need for mounting holes on the facing. Offered in three EPDM colors: black, non-marking grey and white.
|
|
|
| CODE NO. |
DURAMAX® PART NO. |
BASE WIDTH (W) |
BASE THICKNESS (BT) |
OUTSIDE DIME (D) |
BORE DIAM |
WT./FT. |
LENGTH Up TO |
| DB–404 | 802040401 | 4” | 1/2” | 21/2” | 1” | 3.5LBS. | 60FT.
| | DB–405 | 802040501 | 5” | ½” | 2½” | 1” | 4 LBS. | 60FT.
| | DB–406 | 802040601 | 6” | 3/4” | 3” | 1” | 5.3LBS. | 60FT.
| | DB–407 | 802040701 | 6½” | 1” | 4” | 2” | 7LBS. | 60FT.
| | DB–408 | 802040801 | 6½” | 1” | 4” | 1” | 8.9LBS. | 60FT.
| | DB–409 | 802040901 | 9” | 1½” | 6” | 3” | 15.3LBS. | 20FT.
| | DB–409A | 802040911 | 9” | 1½” | 6” | 2” | 17.4LBS. | 20FT.
| | DB–410 | 802041001 | 9½” | 1½” | 6” | 2” | 17.7LBS. | 20FT.
| | DB–412 | 802041201 | 12” | 2” | 8” | 4” | 27LBS. | 20FT.
| | DB–416 | 802041601 | 16” | 2½” | 10” | 4” | 47.5LBS. | 20FT.
| | DB–418 | 802041801 | 18” | 3” | 12” | 6” | 61LBS. | 20FT. |
|
