Metal Expansion Joints

Javascript DHTML Drop Down Menu Powered by dhtml-menu-builder.com

PRE–ENGINEERED Expansion Joint Products

PRE-ENGINEERED expansion joint products are pre-designed for immediate ordering. Because of their predetermined specifications, this catalog can be used as an on-site resourse by sales, engineering, MRO and purchasing professionals. PRE-ENGINEERED designs account for many basic expansion joint application requirements. Please refer to pages 4-14 for product designs and specifications.

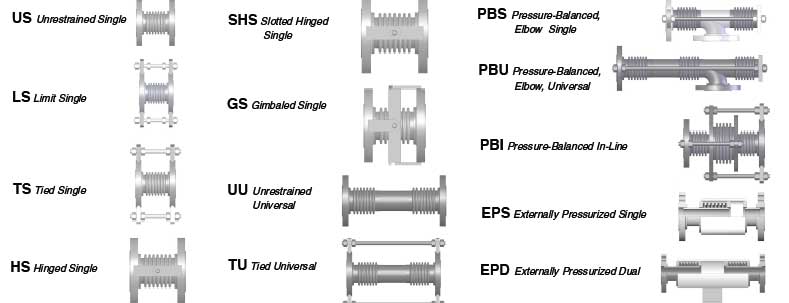

CUSTOM DESIGNED Expansion Joint Options

  • US Unrestrained Single
  • SHS Slotted Hinged Single
  • PBU Pressure-Balanced, Elbow, Universal
  • PBS Pressure-Balanced, Elbow Single
  • TU Tied Universal
  • UU Unrestrained Universal
  • GS Gimbaled Single
  • LS Limit Single
  • TS Tied Single
  • HS Hinged Single
  • PBI Pressure-Balanced In-Line
  • EPS Externally Pressurized Single
  • EPD Externally Pressurized Dual

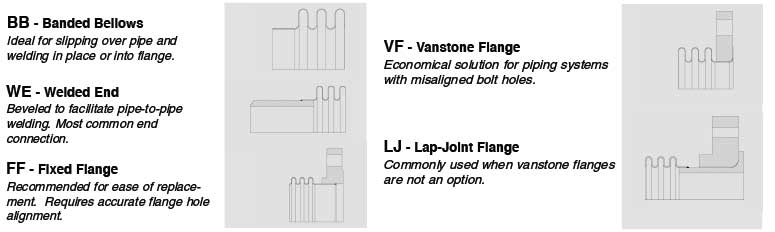

CUSTOM DESIGNED Expansion Joint End Connections

BB – Banded Bellows

Ideal for slipping over pipe and welding in place or into flange.

WE – Welded End

Beveled to facilitate pipe-to-pipe welding. Most common end connection.

FF – Fixed Flange

Recommended for ease of replacement. Requires accurate flange hole alignment

VF – Vanstone Flange

Economical solution for piping systems with misaligned bolt holes.

LJ – Lap–Joint Flange

Commonly used when vanstone flanges are not an option.

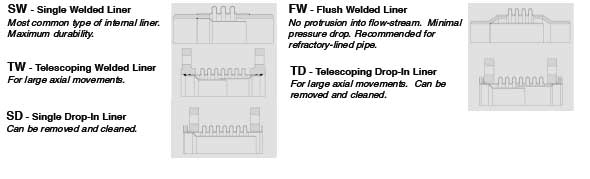

CUSTOM DESIGNED Expansion Joint Internal Liners


SW – Single Welded Liner

Most common type of internal liner.
Maximum durability.

TW – Telescoping Welded Liner

For large axial movements.

SD – Single Drop–In Liner

Can be removed and cleaned.

FW – Flush Welded Liner

No protrusion into flow-stream.
Minimal pressure drop. Recommended for refractory-lined pipe.

TD – Telescoping Drop–In Liner

For large axial movements. Can be removed and cleaned.

PRE – ENGINEERED Expansion Joint Types

Though Hose Master Inc. manufactures many customized and intricate expansion joints for a variety of specialized applications, there are four basic designs that are most commonly used. Each is available in 15, 50, 150, and 300 psi and manufactured from T321 or T316 stainless steel. Inside diameters range from 2” – 30” (Pre-Engineered 300 psi expansion joints are available up to 24” i.d.).

Basic Bellows

A Bellows is an expansion joint without end fittings. Skirt (cuff at end of bellows) is sized to fit into flange or over pipe. Please specify at time of order.

Unrestrained Single Expansion Joint

An Unrestrained Single expansion joint is best used when piping systems are equipped with proper guides and anchors, to absorb axial, angular, and a small amount of lateral movement.

Example of an Unrestrained Single expansion joint used in a proper piping system to absorb axial pipeline expansion.

Example of an Unrestrained Single expansion joint used in a proper piping system to absorb lateral deflection, as well as axial compression.

Limit Single Expansion Joint

A Limit Single expansion joint is best used when main anchors and guides are in the pipeline. It allows for some axial movement as well as lateral movement; however, the rod spacers protect the expansion joint from over-compression or overextension.

Tied Single Expansion Joint

A Tied Single expansion joint is best used in piping systems without a main anchor. It allows for lateral movement only while retaining pressure thrust.

Example of a Tied Single expansion joint where the expansion joint is installed 90° to the thermal growth of the piping. Because of the rods, the expansion joint is able to absorb lateral movement only.
