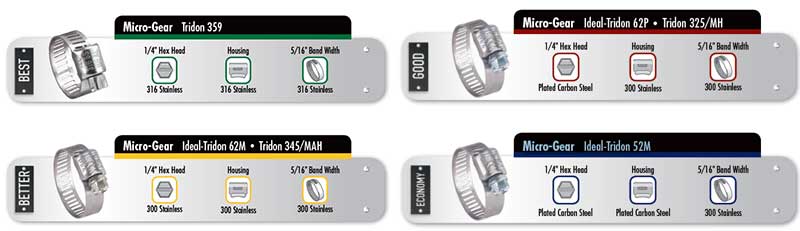

Micro-Gear clamps are tiny, tough and precision-engineered to use in small hose applications including emission control, fuel lines and vacuum hoses. Slim, 5/16” bands and low profile housings allow installation in confined areas.
|
Micro-Gear Tridon 359
| 1/4" Hex Head |
Housing |
5/16" Band Width |
| 316 Stainless |
316 Stainless |
316 Stainless |
Micro-Gear Ideal-Tridon 62M • Tridon 345/MAH
| 1/4" Hex Head |
Housing |
5/16" Band Width |
| 300 Stainless |
300 Stainless |
300 Stainless |
Micro-Gear Ideal-Tridon 62P • Tridon 325/MH
| 1/4" Hex Head |
Housing |
5/16" Band Width |
| Plated Carbon Steel |
300 Stainless |
300 Stainless |
Micro-Gear Ideal-Tridon 52M
| 1/4" Hex Head |
Housing |
5/16" Band Width |
| Plated Carbon Steel |
Plated Carbon Steel |
300 Stainless |
|
|
| Size |
Min (in) |
Max (in) |
Min (mm) |
Max (mm) |
Tridon 359 |
Ideal-Tridon 62M |
Ideal-Tridon 62P |
Ideal-Tridon 52M |
| 04 | 5/16 | 5/8 | 8 | 16 | 359-004 | 62604(1) | 6204(3) | 5202
| | 05 | 5/16 | 3/4 | 8 | 19 | - | 62M05 | 62P05 | -
| | 06 | 5/16 | 7/8 | 8 | 22 | 359-006 | 62606(2) | 6206(4) | 5203
| | 08 | 7/16 | 1 | 11 | 25 | 359-008 | 62M08 | 62P08 | -
| | 10 | 1/2 | 1-1/16 | 13 | 27 | 359-010 | 62M10 | 62P10 | -
| | 12 | 9/16 | 1-1/4 | 14 | 32 | - | 62M12 | 62P12 | -
| | 16 | 11/16 | 1-1/2 | 18 | 38 | - | 62M16 | 62P16 | -
| | 20 | 3/4 | 1-3/4 | 19 | 44 | - | 62M20 | 62P20 | -
| | 24 | 1 | 2 | 26 | 51 | - | 62M24 | 62P24 | -
| | 28 | 1-1/4 | 2-1/4 | 32 | 57 | - | 62M28 | 62P28 | -
| | 30 | 1-3/8 | 2-3/8 | 35 | 60 | - | 62M30 | 62P30 | -
| | 32 | 1-1/2 | 2-1/2 | 38 | 63 | - | 62M32 | 62P32 | -
| | 36 | 1-3/4 | 2-3/4 | 45 | 70 | - | 62M36 | 62P36 | -
| | 44 | 2-1/4 | 3-1/4 | 57 | 82 | - | 62M44 | 62P44 | -
| | 48 | 2-1/2 | 3-1/2 | 64 | 89 | - | 62M48 | 62P48 | - |
(1) Old part no. 62602 (2) Old part no. 62603 (3) Old part no. 6202 (4) Old part no. 6203
|
|

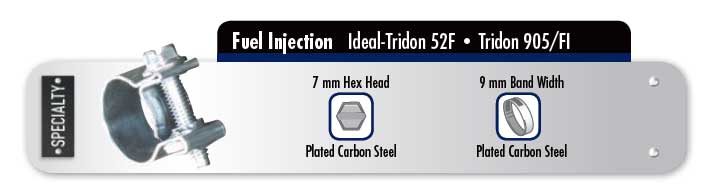

Fuel Injection clamps are designed to provide the uniform sealing pressure required on fuel injection hoses. They feature a solid band with rolled edges and a special nut and bolt design.
| Size |
Min (in) |
Max (in) |
Min (mm) |
Max (mm) |
Ideal-Tridon 52F |
Tridon 905/FI |
| 13 | 7/16 | 1/2 | 11 | 13 | 52F13 | 905-004
| | 15 | 1/2 | 9/16 | 13 | 15 | 52F15 | 905-006
| | 16 | 9/16 | 5/8 | 14 | 16 | 52F16 | 905-008 |
|
