PVC Hose

Javascript DHTML Drop Down Menu Powered by dhtml-menu-builder.com

NEXBRAID® Clear PVC Hose

FDA, NSF 51, USP Class VI

Series 125 (Standard Wall) / Series 126 (Heavy Duty)

Series 125 (standard wall) and Series 126 (thick wall) are flexible PVC transfer hoses for dry abrasive materials such as grains, granules, pellets and powders; beverages and potable water; non-fatty and non-oily foods; and sanitary products. The hoses feature a smooth tube that is abrasion resistant and will not impart taste or odor, and allows full-flow, while the clear PVC construction permits visual observation of materials being conveyed. Series 125 and Series 126 also provide excellent general industrial service in air breathing supply pneumatics, flexible conduit, harness and light vacuum applications.

Tube:

Clear PVC

Reinforcement:

Multiple textile plies

Cover:

Blue tint PVC; smooth finish

Temp. Range:

+25°F to +150°F (-5°C to +65°C)



Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on page 445.

Brand Method:

Black ink

Brand Example:

Series 125: NEXBRAID® SW FOOD GRADE PVC BY PARKER NEXGEN® (P/N) (ID) MAX WP XXX PSI AT 68F (20C) NSF-51 MAX TEMP 150F (65C) CANADA (DATE CODE)



Series 126: NEXBRAID® HD FOOD GRADE PVC BY PARKER NEXGEN® (P/N) (ID) MAX WP XXX PSI AT 68F (20C) NSF-51 MAX TEMP 150F (65C) CANADA (DATE CODE)

Industry Standards:


• FDA ingredients***, NSF 51 certified to 180°F (82°C)***, USP Class VI Rated***
• EU: Meets requirements and amendments of Resolution AP(89) for food contact
• RoHS Compliant

Applications:

• Beverages, potable water, pure water
•Dry abrasive materials, flour, grains, granules, pellets, powders, sugar
•Air, flexible conduit, light vacuum, wire harness

Vacuum:

Light

Packaging:

Coils

!WARNINGS!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.

Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on page 445.

Part Number

ID (in)

ID (mm)

Reinf Plies

OD (in)

OD (mm)

Approx Wt (lbs/ft)

Approx Wt (kg/ft)

Max Rec WP (psi) @ 68°F

Max Rec WP (bar) @ 20°C

Perm Cplg Rec *

Std Pack Qty (ft)

Stock Status ** (USA)

125-03000300

3/16

4.8

2

.375

9.5

0.05

0.02

250

17.2

*

300

Y

125-04000300

1/4

6.4

2

.438

11.1

0.06

0.03

250

17.2

*

300

Y

125-05000300

5/16

7.9

2

.525

13.3

0.08

0.03

250

17.2

*

300

N

125-06000300

3/8

9.5

2

.594

15.1

0.09

0.04

225

15.5

*

300

Y

125-08000300

1/2

12.7

2

.750

19.1

0.14

0.06

200

13.8

*

300

Y

125-10000300

5/8

15.9

2

.875

22.2

0.17

0.08

200

13.8

*

300

Y

125-12000300

3/4

19.1

2

1.030

26.2

0.22

0.10

150

10.3

*

300

Y

125-16000200

1

25.4

2

1.300

33.0

0.31

0.14

125

8.6

*

200

Y

125-20000100

1-1/4

31.8

2

1.625

41.3

0.45

0.20

100

6.9

*

100

Y

125-24000100

1-1/2

38.1

2

1.937

49.2

0.64

0.29

100

6.9

*

100

Y

125-32000100

2

50.8

2

2.490

63.3

0.95

0.43

75

5.2

*

100

Y

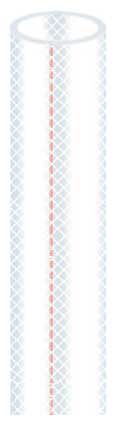

THORO-BRAID ® Clear PVC Hose FDA

FDA, NSF 51, USP Class VI

Series 7581

Series 7581 is a flexible PVC transfer hose for dry abrasive materials such as grains, granules, pellets and powders; beverages and potable water; and non-fatty and non-oily foods and sanitary products. This hose features a smooth tube that is abrasion resistant and will not impart taste or odor, and allows full-flow. The clear PVC construction permits visual observation of materials being conveyed. Series 7581 also provides excellent general industrial service in air, flexible conduit and water applications. The red tracer yarn provides easily identifiable color-coding.

Tube:

Clear PVC

Reinforcement:

Multiple textile plies with longitudinal red tracer yarn

Cover:

Blue tint PVC; smooth finish

Temp. Range:

+14°F to +140°F (-10°C to +60°C)
Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on page 445

Brand Method:

Not branded

Industry Standards:


FDA

Applications:

• Beverages, potable and pure water
•Dry abrasive materials, flour, grains, granules, pellets, powders, sugar
•Air, flexible conduit, light vacuum, wire harness

Compare To:

Gates 7744; Jason 4511; Kentak 50H, Pacific Echo 410; Petzetakis 10206; Superflex BTC; Vehance Pliovic 200

Packaging:

Coils

Part Number

ID (in)

ID (mm)

Reinf Plies

OD (in)

OD (mm)

Approx Wt (lbs/ft)

Approx Wt (kg/ft)

Min Bend Rad (in)

Min Bend Rad (mm)

Max Rec WP (psi) @ 68°F

Max Rec WP (bar) @ 20°C

Perm Cplg Rec *

Std Pack Qty (ft)

Stock Status ** (USA)

7581-251

1/4

6.4

2

0.490

12.4

0.07

0.03

3.0

76.2

355

24.5

*

300

Y

7581-381

3/8

9.5

2

0.600

15.2

0.10

0.05

4.0

101.6

315

21.7

*

300

Y

7581-501

1/2

12.7

2

0.750

19.1

0.12

0.05

5.0

127.0

215

14.8

*

300

Y

7581-631

5/8

15.9

2

0.870

22.1

0.17

0.08

6.0

152.4

185

12.8

*

300

Y

7581-751

3/4

19.1

2

1.030

26.2

0.21

0.10

7.0

177.8

170

11.7

*

300

Y

7581-1001

1

25.4

2

1.300

33.0

0.28

0.13

9.0

228.6

140

9.7

*

300

Y

7581-1251

1-1/4

31.8

2

1.610

40.9

0.42

0.19

12.0

304.8

115

7.9

*

100

Y

7581-1501

1-1/2

38.1

2

1.890

48.0

0.58

0.26

15.0

381.0

100

6.9

*

100

Y

7581-2001

2

50.8

2

2.400

61.0

0.75

0.34

18.0

457.2

85

5.9

*

100

Y

* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
