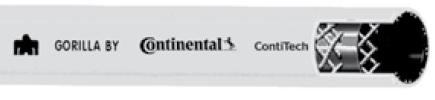

Gorilla®
Product Specifications
|
|
Application
A premium-quality, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry and shipbuilding All sizes are crush-resistant and rated at 500 psi (3 4 MPa) maximum working pressure The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses Non–conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 Volts DC
Construction
< Tube
Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
< Cover
Yellow Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) MSHA approved
< Reinforcement
Spiral aramid yarn, 2” is braided synthetic yarn
Temperature Range
–20”F to 210°F (–29°C to 99°C)
|
Packaging
90% one–piece reels up to 1”
3/16”– 3/4”– 500’ reels, maximum 3 pieces, 50’ increments
1”– 450’ reels, maximum 3 pieces, 50’ increments
1¼”– 250’–400’ reels, maximum 3 pieces, 50’ increments
1½”– 150’–300’ reels, maximum 3 pieces, 50’ increments
2” – 200’ carton, maximum 3 pieces, 50’ increments
Coupled assemblies available: 1/4”, 3/8”, 1/2”, and 3/4”
Branding
Example: Gorilla® by Continental ContiTech 1” (25 4 mm)
500 psi Made in USA Flame Resistant USMSHA No 2G–IC–14C/39
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications
Coupled assemblies available
Order Codes
569–035
536–446 (2”)
|
|
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Yellow |
in. |
mm |
in. |
mm |
psi |
MPa |
lb./ft. |
kg/m |
| 20026239 | 1/4 | 6.4 | 0.61 | 15.5 | 500 | 3.45 | 0.17 | 0.25
| | 20026256 | 3/8 | 9.5 | 0.73 | 18.6 | 500 | 3.45 | 0.22 | 0.33
| | 20026273 | 1/2 | 12.7 | 0.89 | 22.6 | 500 | 3.45 | 0.28 | 0.42
| | 20026289 | 5/8 | 15.9 | 1.06 | 26.9 | 500 | 3.45 | 0.35 | 0.52
| | 20026290 | 3/4 | 19.1 | 1.19 | 30.2 | 500 | 3.45 | 0.41 | 0.61
| | 20026304 | 1 | 25.4 | 1.50 | 37.8 | 500 | 3.45 | 0.58 | 0.86
| | 20026306 | 1¼ | 31.8 | 1.77 | 45.6 | 500 | 3.45 | 0.79 | 1.18
| | 20026309 | 1½ | 38.1 | 2.04 | 51.8 | 500 | 3.45 | 0.86 | 1.27
| | 20023183 | 2 | 50.8 | 2.62 | 66.6 | 500 | 3.45 | 1.22 | 1.82 |
|
Ortac®
Product Specifications
|
|
Application
Ortac® (Oil-Resistant Tube and Cover) is our most popular premium-quality multipurpose hose. Used in the most
abusive industrial applications, Ortac® will handle air, oil, water, kerosene and some chemicals. The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses. Non–conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC. Available in 250, 300 and 400 psi working pressures. Note: Ortac® 400 Yellow is USMSHA approved.
Construction
< Tube
Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
< Cover
Red or yellow Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance)
< Reinforcement
Spiral synthetic yarn, 2” is braided
|
Temperature Range
–20°F to 210°F (–29°C to 99°C)
Packaging
90% one-piece reels up to 1”
3/16” – 3/4” – 500' reels, maximum 3 pieces, 50’ increments
1” – 450' reels, maximum 3 pieces, 50’ increments
1¼ – 400' reels, maximum 3 pieces, 50’ increments
1½ – 300' reels, maximum 3 pieces, 50’ increments
2” – 200', cartons, maximum 3 pieces, 50’ increments
Branding
Example: 1½" (38.1 mm) Ortac® 300 psi WP Made in USA
Continental ContiTech
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual
for crimp specifications.
Order Codes
See next page.
|
|
Ortac® 250
Order Codes: 569-058 (1/4"-1½" red), 536-465 (2" red), 536-010 (2" black)
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Red |
in. |
mm |
in. |
mm |
psi |
MPa |
lb./ft. |
kg/m |
| 20026527 | 1/4 | 6.4 | 0.53 | 13.5 | 250 | 1.72 | 0.09 | 0.13
| | 20026529 | 5/16 | 7.9 | 062 | 17.5 | 250 | 1.72 | 0.14 | 0.21
| | 20026531 | 3/8 | 9.5 | 0.69 | 17.5 | 250 | 1.72 | 0.15 | 0.22
| | 20026534 | 1/2 | 12.7 | 0.84 | 21.3 | 250 | 1.72 | 0.20 | 0.30
| | 20026538 | 5/8 | 15.9 | 1.00 | 25.4 | 250 | 1.72 | 0.26 | 0.39
| | 20026540 | 3/4 | 19.1 | 1.14 | 29.0 | 250 | 1.72 | 0.34 | 0.51
| | 20026544 | 1 | 25.4 | 1.47 | 37.3 | 250 | 1.72 | 0.51 | 0.76
| | 20023278 | 2 | 50.8 | 2.50 | 63.5 | 200 | 1.37 | 1.08 | 1.61 |
Hose design ratio (burst pressure) 4:1.
|
Ortac® 300
Order Codes: 569-059 (red)
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Red |
in. |
mm |
in. |
mm |
psi |
MPa |
lb./ft. |
kg/m |
| 20026560 | 3/16 | 4.8 | 0.44 | 11.8 | 300 | 2.07 | 0.07 | 0.10
| | 20026561 | 1/4 | 6.4 | 0.61 | 15.7 | 300 | 2.07 | 0.14 | 0.21
| | 20026563 | 5/16 | 7.9 | 0.68 | 17.3 | 300 | 2.07 | 0.16 | 0.24
| | 20026564 | 3/8 | 9.5 | 0.73 | 18.6 | 300 | 2.07 | 0.18 | 0.27
| | 20026568 | 1/2 | 12.7 | 0.89 | 22.6 | 300 | 2.07 | 0.25 | 0.37
| | 20026570 | 5/8 | 15.9 | 1.06 | 26.9 | 300 | 2.07 | 0.35 | 0.52
| | 20026571 | 3/4 | 19.1 | 1.19 | 30.2 | 300 | 2.07 | 0.40 | 0.60
| | 20026575 | 1 | 25.4 | 1.50 | 38.1 | 300 | 2.07 | 0.59 | 0.88
| | 20026579 | 1¼ | 31.8 | 1.81 | 46.0 | 300 | 2.07 | 0.76 | 1.13
| | 20026583 | 1½ | 38.1 | 2.08 | 52.8 | 300 | 2.07 | 0.88 | 1.31 |
Hose design ratio (burst pressure) 4:1.
|
Ortac® 400
Order Codes: 569-065 (yellow, USMSHA rated), 569-066 (red)
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Red |
in. |
mm |
in. |
mm |
psi |
MPa |
lb./ft. |
kg/m |
| 20026596 | 1/4 | 6.4 | 0.61 | 15.7 | 400 | 2.76 | 0.16 | 0.24
| | 20026598 | 3/8 | 9.5 | 0.73 | 18.8 | 400 | 2.76 | 0.20 | 0.30
| | 20026599 | 1/2 | 12.7 | 0.89 | 22.8 | 400 | 2.76 | 0.26 | 0.39
| | 20026600 | 3/4 | 19.1 | 1.18 | 30.0 | 400 | 2.76 | 0.41 | 0.61
| | 20026601 | 1 | 25.4 | 1.50 | 38.1 | 400 | 2.76 | 0.61 | 0.91 |
Hose design ratio (burst pressure) 4:1.
|
Crimped Jackhammer Assembly
Product Specifications
|
|
Application
An economical EPDM air hose available as factory-made
assemblies with high-quality crimped universal couplings
for jackhammer and other uses on construction sites.
Available in 3/4" and 1" red and yellow covers at 200
and 300 psi.
Construction
< Tube
EPDM, ARPM Class C (Limited Oil Resistance)
< Cover
EPDM, ARPM Class C (Limited Oil Resistance)
< Reinforcement
Spiral synthetic yarn
|
Temperature Range
–20”F to 210°F (–-29°C to 99°C)
Branding
-40°F to 210°F (-40°C to 99°C)
Couplings
3/4" (19.1 mm) 300 WP Jackhammer Hose Made in USA.
Working Pressure:
200 psi and 300 psi Maximum.
Note: finished assembly is rated at 150 psi for all sizes.
|
|
Crimped Jackhammer Assembly
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Red |
Yellow |
Length (ft.) |
in. |
mm |
in. |
mm |
psi |
lb./ft. |
| 20749635 | | 25 | 3/4 | 19.1 | 1.10 | 28.0 | 200 | 9.63
| | 20665753 | 20715475 | 50 | 3/4 | 19.1 | 1.10 | 28.0 | 300 | 19.25
| | 20749635 | | 100 | 3/4 | 19.1 | 1.10 | 28.0 | 300 | 38.50
| | 20665550 | | 50 | 3/4 | 19.1 | 1.10 | 28.0 | 200 | 19.25
| | 20415002 | | 50 | 1 | 25.4 | 1.47 | 37.3 | 200 | 27.95
| | 20759549 | 50 | 1 | 25.4 | 1.47 | 37.3 | 300 | 33.60 |
Hose design ratio (burst pressure) 4:1.
|
