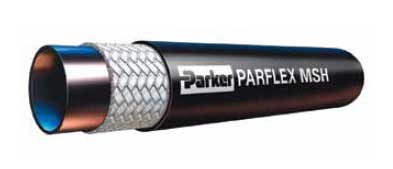

MSH – Marine Steering Fast Response Hose
|
Features
- Fast, accurate response
- Permanent or field attachable
- Salt water, corrosion resistant
|
Applications/Markets
- Wide range of marine applications
- Marine hydraulic steering systems
|
| Part Number |
Nominal I.D. |
Maximum O.D. |
Maximum Working Pressure |
Minimum Bend Radius |
Vac. Rating Hg./73°F |
Weight |
Permanent Fitting Series |
Field Attachable Series |
|
Inch |
mm |
Inch |
mm |
psi |
MPa |
Inch |
mm |
Inch |
lbs./ft. |
kg./mtr |
|
|
| MSH-5 |
5/16 |
8 |
.48 |
12 |
1,000 |
6.9 |
2.25 |
57 |
28 |
.05 |
.07 |
MS |
MS |
| MSH-6 |
3/8 |
10 |
.59 |
15 |
1,000 |
6.9 |
3.00 |
76 |
28 |
.07 |
.11 |
MS |
MS |
|
|
Construction
Tube: Nylon
Reinforcement: Fiber
Cover: Polyurethane
Operating Parameters
Temperature Range:
-40°F to +200°F (-40°C to +93°C) (Limited to +135°F (+57°C) for synthetic hydraulic fluids and water-based fluids)
Change in length at Max. Working Pressure: ± 2%
Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
|
Fittings
MS Series – pg. E-125
For most Parker products, Crimp Die Selection charts can be found online at www.parker.com/crimpsource Access instructions are on pg. G-13
Colors
Black
Notes
Non-perforated cover
Bend restrictions are available only for permanent fittings. HBR (Hose Bend Restrictor) available for Marine Steering Hose Assemblies. See Hose Guard in Tooling Equipment and Accessories Section pg. F-18
|

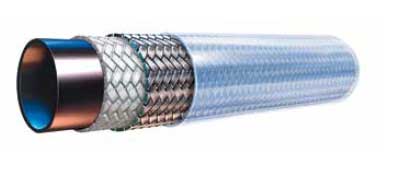

PTH – Marine Power Tilt Hose
|
Features
- Compact design
- Abrasion resistant polyurethane cover
- Excellent flexibility
- Corrosion resistant
|
Applications/Markets
- Power tilt mechanisms for outboard and stern drive engines
- Trim Tab assemblies
- Jack Plate assemblies
|
| Part Number |
Nominal I.D. |
Maximum O.D. |
Maximum Working Pressure |
Minimum Bend Radius |
Vac. Rating Hg./73°F |
Weight |
Permanent Fitting Series |
|
Inch |
mm |
Inch |
mm |
psi |
MPa |
Inch |
mm |
Inch |
lbs./ft. |
kg./mtr |
|
| PTH-3 |
3/16 |
5 |
.43 |
11 |
3,000 |
20.7 |
28 |
0.75 |
19 |
.08 |
.11 |
92 |
|
|
Construction
Tube: Nylon
Reinforcement: Fiber and Stainless Steel braid
Cover: Polyurethane
Operating Parameters
Temperature Range:
-40°F to +212°F (-40°C to +100°C)
Change in length at Max. Working Pressure: ± 2%
Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
|
Fittings
92 Series – pg. E-85
For most Parker products, Crimp Die Selection charts can be found online at www.parker.com/crimpsource Access instructions are on pg. G-13
Colors
Clear
Notes
Non-perforated cover
Also available as custom order with black cover
|
