Fuel Oil Hose

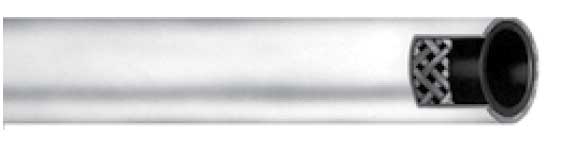

Redwing® Fuel Oil

Product Specifications Application

Redwing® Fuel Oil is for the transfer and delivery of fuel oil and petroleum products for home delivery, commercial and industrial service Redwing® Fuel Oil has two textile braids. The braided construction reduces kinking and twisting when reeling The smooth cover has low drag resistance

Construction
> Tube

Nitrile synthetic rubber (ORS), ARPM Class A (High Oil Resistance)

> Cover

Red Chemivic synthetic rubber (smooth finish) (ORS)

> Reinforcement

Two braided synthetic yarn

Temperature Range

-40°F to 140°F (-40°C to 60°C)

Packaging

Reels, cut lengths and coupled lengths

Branding

Example: Continental ContiTech 1" (25 4 mm) 2BD Redwing® Fuel Oil Made in USA

Couplings

Coupled assemblies available

Order Codes

532-016

Redwing® Fuel Oil

SAP#	ID		Nom. OD		Max. WP		Weight
Red	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20021667	1	25 4	1 50	38 1	250	1 72	0 57	0 85
20021681	1 1\4	31 8	1 80	45 7	250	1 72	0 65	0 97
20021708	1 3\8	34 9	1 88	47 8	250	1 72	0 70	1 04
20021735	1 1\2	38 1	2 10	53 3	150	1 03	0 92	1 37

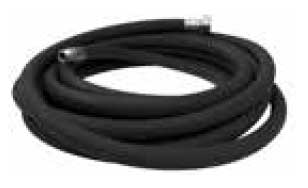

Blue Low Temp Fuel Oil Delivery

Product Specifications Application

The new and improved Low-Temperature Fuel Oil Delivery Hose is for transfer and delivery of fuel oil and petroleum products for home delivery, commercial and industrial service designed to remain flexible in cold temperatures and provide superior oil resistance. The braided construction reduces kinking and twisting when reeling. The smooth cover has low drag resistance.

Construction
> Tube

Nitrile (ORS)

> Cover

Blue Chemivic synthetic rubber (ORS) (smooth finish)

> Reinforcement

Two-braid textile with static wire

Packaging

Cut lengths

Branding

Example: Continental ContiTech 1 1/4" (31.8 mm) 2BD Low Temp Fuel Oil A/S Made in USA

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedures.

Order Codes

532-021

Blue Low Temp Fuel Oil Delivery

SAP#	ID/in.	ID/mm	Length	Stocked	psi	Weight	Product Code
20054898	1¼	31.75	100'	YES	250	0.65/ft.	53202104010000
20031895	1¼	31.75	125'	YES	250	0.65/ft.	53202104012500
20031896	1¼	31.75	150'	YES	250	0.65/ft.	53202104015000
20054428	1¼	31.75	175'	N/S	250	0.65/ft.	53202104017500
20031897	1⅜	34.92	125'	YES	250	0.70/ft.	53202104412500
20031898	1⅜	34.92	150'	YES	250	0.70/ft.	53202104415000
20145510	1⅜	34.92	175'	N/S	250	0.70/ft.	53202104417500
20750636	1½	38.10	100'	2500'	250	0.92/ft.	53202104810000
20046244	1½	38.10	125'	2500'	250	0.92/ft.	53202104812500
20031899	1½	38.10	150'	2500'	250	0.92/ft.	53202104815000
20750635	1½	38.10	175'	2500'	250	0.92/ft.	53202104817500
