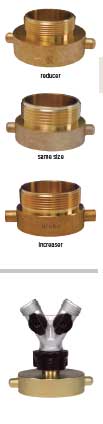

Brass Hydrant Adapters – Pin Lug
Feature:
• configurations are also available, consult Dixon™ for information
| Female Thread |
Male Thread |
Cast Brass Part # |
| 1½"NPSH | ¾"GHT | HA15S76
| | 1½"NPSH | ¾"NPSH | HA15S75
| | 1½"NPSH | ¾"NPT | HA15S75T
| | 1½"NPSH | 1"NPSH | HA15S10S
| | 1½"NPSH | 1"NPT | HA15S10T
| | 1½"NPSH | 1½"NPT | HA15S15T
| | 1½"NPSH | 1½"NST(NH) | HA15S15F
| | 1½"NPT | 1½"NPSH | HA15T15S
| | 1½"NPT | 1½"NST(NH) | HA15T15F
| | 1½"NST(NH) | ¾"GHT | HA1576
| | 1½"NST(NH) | ¾"NPSH | HA1575
| | 1½"NST(NH) | ¾"NPT | HA1575T
| | 1½"NST(NH) | 1"NPSH | HA1510
| | 1½"NST(NH) | 1"NST(NH) | HA1510F
| | 1½"NST(NH) | 1"NPT | HA1510T
| | 1½"NST(NH) | 1½"NPSH | HA1515
| | 1½"NST(NH) | 1½"NPT | HA1515T
| | 1½"NST(NH) | 1½"NST(NH) | HA1515F
| | 1½"NST(NH) | 2½"NST(NH) | HA1525F
| | 2"NPSH | 1½"NPSH | HA20S15S
| | 2"NPSH | 1½"NPT | HA20S15T
| | 2"NPSH | 1½"NST(NH) | HA20S15F
| | 2"NPSH | 2½"NST(NH) | HA20S25F
| | 2"NPT | 2½"NST(NH) | HA20T25F
| | 2"NST(NH) | 2½"NST(NH) | HA2025F
| | 2½"NPSH | 1"NPT | HA25S10T
| | 2½"NPSH | 1½"NPSH | HA25S15S
| | 2½"NPSH | 1½"NPT | HA25S15T
| | 2½"NPSH | 1½"NST(NH) | HA25S15F
| | 2½"NPSH | 2½"NST(NH) | HA25S25F
| | 2½"NST(NH) | ¾"GHT | HA2576
| | 2½"NST(NH) | ¾"NPT | HA2575T
| | 2½"NST(NH) | 1"NPSH | HA2510
| | 2½"NST(NH) | 1"NST(NH) | HA2510F
| | 2½"NST(NH) | 1"NPT | HA2510T
| | 2½"NST(NH) | 1½"NPSH | HA2515
| | 2½"NST(NH) | 1½"NST(NH) | HA2515F
| | 2½"NST(NH) | 1½"NPT | HA2515T
| | 2½"NST(NH) | 2"NPSH | HA2520
| | 2½"NST(NH) | 2"NST(NH) | HA2520F
| | 2½"NST(NH) | 2"NPT | HA2520T
| | 2½"NST(NH) | 2½"NPSH | HA2525
| | 2½"NST(NH) | 2½"NST(NH) | HA2525F
| | 2½"NST(NH) | 2½"NPT | HA2525T
| | 2½"NST(NH) | 3"NPSH | HA2530
| | 2½"NST(NH) | 3"NST(NH) | HA2530F
| | 2½"NST(NH) | 3"NPT | HA2530T
| | 3"NPSH | 2½"NST(NH) | HA30S25F
| | 3"NPSH | 2½"NPSH | HA30S25S
| | 3"NPSH | 2½"NPT | HA30S25T
| | 3"NST(NH) | 1½"NPSH | HA3015S
| | 3"NST(NH) | 1½"NST(NH) | HA3015F
| | 4"NST(NH) | 2½"NST(NH) | HA4025F
| | 4½"NST(NH) | 2½"NST(NH) | HA4525F |
• All adapters are made to approved Dixon™ specifications.
|
|

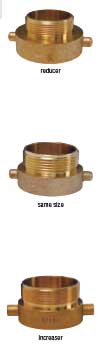

Brass Hydrant Adapters – Pin Lugs (New York Threads)
Features:
• NYFD thread = 3.031 x 8 TPI
• NYC thread = 3.00 x 8 TPI
• other configurations are also available, consult Dixon™ for information
| Female NYFD |
Male Thread |
Cast Brass Part # |
| 1½" | ¾" GHT | HA15NYFD76
| | 1½" | 1½" NPT | HA15NYFD15T
| | 2½" | ¾" NPT | HA25NYFD75T
| | 2½" | ¾" GHT | HA25NYFD76
| | 2½" | 1½"NPSH | HA25NYFD15S
| | 2½" | 1½" NST (NH) | HA25NYFD15F
| | 2½" | 1½" NPT | HA25NYFD15T
| | 2½" | 1½" NYFD | HA25NYFD15NYFD
| | 2½" | 2" NPT | HA25NYFD20T
| | 2½" | 2½" NST(NH) | HA25NYFD25F |
| Female NYFD |
Male Thread |
Cast Brass Part # |
| 2½" | ¾"NPT | HA25NYC75T
| | 2½" | ¾"GHT | HA25NYC76
| | 2½" | 1"NPT | HA25NYC10T
| | 2½" | 1½"NPT | HA25NYC15T
| | 2½" | 1½"NST(NH) | HA25NYC15F
| | 2½" | 2"NPT | HA25NYC20T |
Brass Hazmat Adapters – Pin Lugs
Feature:
• divides single stream into double stream
| Female NST |
Male Thread |
Cast Brass Part # |
| 1½" |
(2) GHT |
HHA1576 |
| 2½" |
(2) GHT |
HHA2576 |
|
|

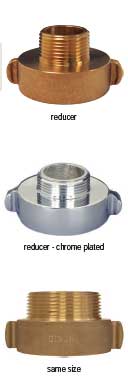

Brass Hydrant Adapters – Rocker Lug
Features:
• finishes: -C polished chrome plated
• other configurations are also available, consult Dixon™ for information
| Female Thread |
Male Thread |
Cast Brass Part # |
| 1½"NH | ¾"GHT | RHA1576
| | 1½"NPSH | ¾"NPT | RHA15S75T
| | 1½"NH | 1"NPSH | RHA1510
| | 1½"NST(NH) | 1"NST(NH) | RHA1510F
| | 1½"NST(NH) | 1"NPT | RHA1510T
| | 1½"NPSH | 1"NPSH | RHA15S10
| | 1½"NPSH | 1"NPT | RHA15S10T
| | 1½"NST(NH) | 1½"NPSH | RHA1515
| | 1½"NST(NH) | 1½"NST(NH) | RHA1515F
| | 1½"NST(NH) | 1½"NPT | RHA1515T
| | 1½"NPSH | 1½"NST(NH) | RHA15S15F
| | 1½"NPSH | 1½"NPT | RHA15S15T
| | 1½"NPT | 1½"NST(NH) | RHA15T15F
| | 1½"NST(NH) | 2"NPSH | RHA1520
| | 1½"NST(NH) | 2½"NST(NH) | RHA1525F
| | 2"NST(NH) | 2½"NST(NH) | RHA2025F
| | 2½"NST(NH) | ¾"GHT | RHA2576
| | 2½"NST(NH) | 1"NPSH | RHA2510
| | 2½"NST(NH) | 1"NST(NH) | RHA2510F
| | 2½"NST(NH) | 1"NPT | RHA2510T
| | 2½"NST(NH) | 1½"NPSH | RHA2515
| | 2½"NST(NH) | 1½"NST(NH) | RHA2515F
| | 2½"NST(NH) | 1½"NST(NH) | RHA2515F-C
| | 2½"NST(NH) | 1½"NPT | RHA2515T
| | 2½"NPSH | 1½"NPSH | RHA25S15
| | 2½"NPSH | 1½"NST(NH) | RHA25S15F
| | 2½"NST(NH) | 2"NST(NH) | RHA2520F
| | 2½"NST(NH) | 2"NPT | RHA2520T
| | 2½"NST(NH) | 2½"NPT | RHA2525T
| | 2½"NPSH | 2½"NST(NH) | RHA25S25F
| | 2½"NPT | 2½"NST(NH) | RHA25T25F
| | 2½"NST(NH) | 3"NPT | RHA2530T
| | 3"NST(NH) | 2½"NST(NH) | RHA3025F |
|
|
