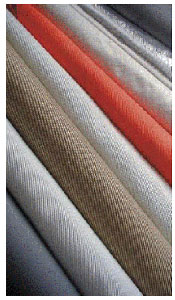

TETRAGLAS CLOTH
Darco Southern's Tetraglas Cloth is Mine Saftey BC 109 approved!
Manufactured of texturized fiberglass yarns, Tetraglas cloth withstands temperature up to 1000 degree F continuous service.

Applications include welding blankets and curtains , fire blankets, expansion joints, insulation pad covers and gasketing products, and a wide variety of specialty products.

Available with treatments of ...

* Silver Silicone Impregnated service Temperature: 500 degrees F/700 degree F. Excellent use for Removeable Insulation Covers , Insulation Strips for Boilers and Curtains
Can be used indoors and outdoors

* PTFE Impregnation
Plan TetraGlas Cloth impregnated with PTFE Fluropolymer Resin, offers the advantage of a non-asbestos material with higher temperature range and with excellent resistance to almost all solvents, caustics and acids. For service temperatures up to 550 degrees F.

* Vermiculite Coated Manufactured of texturized fiberglass yarns then coated with Vermiculite(a 100% inorganic dispersion), Vermiculite Coated Tetraglas Cloth will withstand temperature of 1500 degrees F with excursions to 2000 degrees F. This product is an excellent choice for welding curtains and blankets, insulation pad covers and the manufacture of gasketing products. Vermiculite Coated Tetraglas Cloth is another high temperature alternative manufactured by Darco Southern. Vermiculite also aides in abrasion resistance and stability.

* Aluminium foil

* Heat treatment

TETRAGLAS 3000 CLOTH
TETRAGLAS 3000 is a high temperature fabric for service temperatures to 2300°F with short excursions to 3000°F. Cloth available in a plain or satin weave and is silica cloth.

• Special coatings and aluminum foil available

Excellent in a variety of applications:
• refractory
• boiler
• steel
• aluminum
• petrochemical
• pulp and paper
• shipyards
• fire departments
• welding
• automotive
• anywhere heat protection is required.

TETRAGLAS 3000 BLANKET
Tetraglas 3000 Blanket is a high temperature insulation made from amorphous silica. This blanket is an excellent alternative to Refractory Ceramic Fiber (RCF) Insulation and can be used in applications up to 2000 degreeF continuous.

TETRAGLAS@ TAPE
Manufactured of texturized fiberglass yarns, Tetragloas Tape will withstand temperatures up to 1000°F in continuous service.

Tetraglas Tape offers superior insulating properties as well as low
chloride content.

Tetraglas Tape w/PSA features a pressure sensitive adhesive backing that is intended to facilitate the installation of the tape when adhering the tape to the surface over which it is being applied. The tape is used around sheet metal flanges and around small doors. At elevated temperatures, there will be some loss of adhesive properties.

Tetraglas Tape impregnated with PTFE Fluoropolymer Resin, offers
the advantages of a non-asbestos material with higher temperature range and with excellent resistance to almost all solvents, caustics and acids.

Seals effectively at low bolt stresses. Service temperature up to 550 degree F.

Provides excellent resistance to almost all solvents, caustics and acids.

Vermiculite Coated Tetraglas Tape and Vermiculite Coated Tetraglas
Tape w/PSA are manufactured from texturized fiberglass yarns then
coated with Vermiculite, a 100% inorganic dispersion. Vermiculite
coated Tetraglas Tape will withstand temperatures up to 1500 degree F constant with excursions to 2000 degree F. Also offers abrasion resistant stability.

This tape maintains the same characteristics as the Vermiculite
Coated Tetraglas Cloth. It is an excellent choice for pipe wrap or
gasketing products.

• Special coatings of PTFE Impregnation and Vermiculite are
available as well as heat treatment.

• Shrink wrapped for added protection.

• Available in Plain or Drop Warp Styles

TETRAGLAS TAPE
Applications include:
• steam tracer line wrapping
• hot pipe protection
• exhaust manifold insulation
• strip curtains for oven doors
• tadpole tapes
• gasketing

KNITTED TETRAGLAS ROPE
TETRAGLAS' KNITTED ROPE offers the advantages of economy with more consistency and workability without
sacrificing any of the physical, chemical or high temperature characteristics. Service temperature of 1000"F constant.
Both styles are completely incombustible.

• Style 250-S is a soft and easily compressible material for gasketing, caulking for oven and furnace doors and expansion joints, as well as woodstoves.

• Style 250-D is a firm, dense material that more resembles twisted Rope. Used in applications requiring a more dense material, yet one which will not unravel during installation.

• Vermiculite Coated Knitted Tetraglas Rope is manufactured from texturized fiberglass yarns then coated with Vermiculite, a 100% inorganic dispersion. Vermiculite coated Tetraglas Knitted Rope will withstand temperatures up to 1500°F constant with excursions to 2000°F.

This economical alternative can be used for gasketing, caulking for oven and furnace doors and expansion joints.

• Also available w/Graphite & PTFE Impregnation

TWISTED TETRAGLAS ROPE
TETRAGLAS TWISTED ROPE is a completely incombustible material capable of withstanding continuous service temperatures up to 1000°F. This rope will resist most acids and alkalis and will remain unaffected by solvents and bleaches.
