Anhydrous Ammonia Hose Nylon Reinforced Series 7262

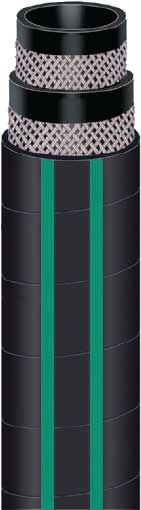

Series 7262 is a lightweight anhydrous ammonia transfer hose. The hose construction incorporates corrosion resistant high tensile nylon braids for flexibility and kink resistance. The perforated cover is resistant to abrasion, mild chemicals and ozone, and the distinctive dual green stripes provide color-coded identification.
NOTES:
- Refer to the Safety and Technical section of this catalog for safety, handling and use information. Refer to the Chemical Guide section of this catalog to determine compatibility with specific chemicals.
- Contact Parker for additional chemical compatibility information, and for suitability for non-agricultural/industrial refrigeration applications.
- Do not use with LPG or natural gas.
- Series 7262 is a non-stock, seasonal product available only through Parker Certified Anhydrous Ammonia Hose Assembly Fabricators. Contact Parker for a referral.
Tube: Black EPDM
Reinforcement: Multiple textile braids
Cover: Black EPDM; perforated wrapped finish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method Side 1: Embossed
Side 2: Two solid green stripes
Brand Example: PARKER SERIES 7262 NYLON ANHYDROUS AMMONIA - (YEAR) - REMOVE NO LATER THAN (YEAR +6) - 350 PSI MAX WP ARPM (BATCH CODE) CAUTION ANHYDROUS AMMONIA USE ONLY - (YEAR) -REMOVE NO LATER THAN (YEAR +6)
Design Factor:5:1
Industry Standards: ARPM IP-14
Applications:
- Anhydrous ammonia
- In-plant and tank transfer, transport and delivery; fertilizer dispensing
- Agriculture
Vacuum: Not recommended
Compare to:Goodall N2000
Packaging: Coils (bulk hose available only to Parker Certified Anhydrous Ammonia Hose Assembly Fabricators)
WARNINGS!
- Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
- Refer to the Safety and Technical Data Information section of this catalog for the proper use of this hose.
- For Anhydrous Ammonia use ONLY. Do not use in Liquid Petroleum Gas (LPG)/Propane or Natural Gas applications. Use only with couplings qualified by Parker. Do not use with couplings containing hidden o-rings such as male swivel couplings. For non-agricultural or refrigeration applications, contact Parker.
- Contact with Anhydrous Ammonia (NH3) will burn skin and is especially damaging to the eyes and lungs. This is true for its liquid and gaseous (vapor) state. Many accidents involving NH3 have occurred by using the wrong hose. NH3 hose must be specially compounded and constructed to handle the media. NEVER use a hose that is not designed for NH3 because it may fail very quickly and cause bodily injury or death. It is especially important to ensure that only Anhydrous Ammonia hose is recommended and used for this service. Refer to ARPM Publications IP-14 ”Anhydrous Ammonia Hose, Specifications” and IP-11-2 “Anhydrous Ammonia Hose, Manual for Maintenance,Testing and Inspection.”
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock:“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Hose Assemblies: Available only from Parker Certified Anhydrous Ammonia Hose Assembly Fabricators.
|
|
Anhydrous Ammonia Hose Stainless Steel Reinforced Series 7261
Series 7261 is a premium anhydrous ammonia transfer hose. The hose construction incorporates corrosion resistant high tensile stainless steel and nylon braids for superior durability and service life. The perforated cover is resistant to abrasion, mild chemicals and ozone, and the distinctive silver stripe provides color-coded identification.
NOTES:
- Refer to the Safety and Technical section of this catalog for safety, handling and use information. Refer to the Chemical Guide section of this catalog to determine compatibility with specific chemicals.
- Contact Parker for additional chemical compatibility information, and for suitability for non-agricultural/industrial refrigeration applications.
- Do not use with LPG or natural gas.
- Series 7261 is a non-stock, seasonal product available only through Parker Certified Anhydrous Ammonia Hose Assembly Fabricators. Contact Parker for a referral.
Tube: Black EPDM
Reinforcement:One or multiple stainless steel braids and one textile braid
Cover:Black EPDM; perforated wrapped finish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method Side 1: Embossed
Side 2: Two solid green stripes
Brand Example: PARKER SERIES 7261 SS ANHYDROUS AMMONIA - (YEAR)REMOVE NO LATER THAN (YEAR +7) - 350 PSI MAX WP ARPM(BATCH CODE) - CAUTION ANHYDROUS AMMONIA USE ONLY -(YEAR) REMOVE NO LATER THAN (YEAR +7)
Design Factor: 5:1
Industry Standards: ARPM IP-14
Applications:
- Anhydrous ammonia
- In-plant and tank transfer, transport and delivery; fertilizer dispensing
- Agriculture
Vacuum:Not recommended
Compare to:Goodall N2595
Packaging: Coils (bulk hose available only to Parker Certified Anhydrous Ammonia Hose Assembly Fabricators)
|
|
WARNINGS!
- Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines..
- Refer to the Safety and Technical Data Information section of this catalog for the proper use of this hose.
- For Anhydrous Ammonia use ONLY. Do not use in Liquid Petroleum Gas (LPG)/Propane or Natural Gas applications. Use only with couplings qualified by Parker. Do not use with couplings containing hidden o-rings such as male swivel couplings. For non-agricultural or refrigeration applications, contact Parker.
- Contact with Anhydrous Ammonia (NH3) will burn skin and is especially damaging to the eyes and lungs. This is true for its liquid and gaseous (vapor) state. Many accidents involving NH3 have occurred by using the wrong hose. NH3 hose must be specially compounded and constructed to handle the media. NEVER use a hose that is not designed for NH3 because it may fail very quickly and cause bodily injury or death. It is especially important to ensure that only Anhydrous Ammonia hose is recommended and used for this service.
|
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Hose Assemblies: Available only from Parker Certified Anhydrous Ammonia Hose Assembly Fabricators.
|
|
