NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Torridair Hoses
|
|

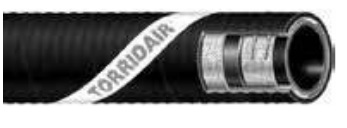

Plicord® Torridair™ Hot Air Blower
Product Specifications | |
ApplicationDesigned to transfer hot, non-oily air, up to 400°F (204°C), from manifold blowers or in-plant compressors to holding tanks used in the transfer of dry bulk materials. Construction TubeBlack, STF (Super Thermo-Flo) EPDM synthetic rubber CoverBlack, weather-resistant, STF (Super Thermo-Flo) EPDM synthetic rubber (wrapped impression) ReinforcementSpiral-plied synthetic fabric with double wire helix Temperature Range-40 °F to 400°F (-40°C to 204°C) |
Packaging100’ lengths, coiled and polywrapped BrandingExample: Continental ContiTech Torridair™ Blower Hose 400°F (204°C) CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Use Continental ContiTech Insta-Lock™ Cam & Groove Fittings with this product. See the Coupling Systems information pages at the back of the catalog. Order Codes549-856 |
|
Plicord® Torridair™ SAP # ID Nom. OD Max. WP Bend Radius Vacuum HG Weight Black in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m 20020255 2 50.8 2.51 63.8 100 0.52 5 127 29 737 1.06 1.58 20020257 2f 63.5 3.00 76.2 100 0.52 6 152 29 737 1.35 2.01 20020260 3 76.2 3.53 89.7 100 0.52 7 178 29 737 1.84 2.74 20020261 4 101.6 4.60 116.8 100 0.69 16 400 29 737 2.47 3.68 20130428 6 152.4 6.70 170.0 100 0.69 30 750 29 737 4.46 6.65 |
|
