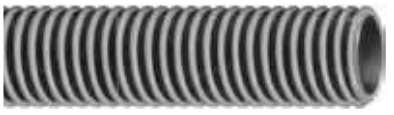

Paladin Hoses
|
|
Paladin®
Product Specifications |
|
ApplicationDesigned as a lightweight and flexible hose to transfer biodiesel and ethanol blends, gasoline and other petroleum products under pressure, gravity flow or medium suction ( up to 23" Hg) at ambient temperature. Maximum aromatic content 60%. Outer PVC helix provides abrasion resistance and low coefficient of friction. With Antistatic wire (low resistance). Construction TubeBlack Nitrile synthetic rubber (static dissipating) CoverBlack Chemivic® synthetic rubber with double Orange Pliovic® outer helix ReinforcementSynthetic fabric plies Temperature Range-40 °F to 160°F (-40°C to 71°C) |
Packaging100’ lengths, coiled and bagel pack BrandingExample: Continental ContiTech Paladin® Drop Hose (Date Code). Made in Canada CouplingsUse Continental ContiTech Insta-Lock™ Cam & Groove Fittings with this product. See the Coupling Systems information pages at the back of the catalog. Order Codes543-138 |
|
Paladin® SAP # ID Nom. OD Max. WP Bend Radius Vacuum HG Weight Black in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m 20130856 2 50.8 2.87 72.9 150 1.03 2 51 23 584 1.04 1.55 20130857 3 76.2 3.92 99.6 150 1.03 3 76 23 584 1.58 2.35 20131000 4 101.6 4.85 123.2 75 0.52 5 127 23 584 1.94 2.89 |
|
