NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Neptune Hoses
|
|

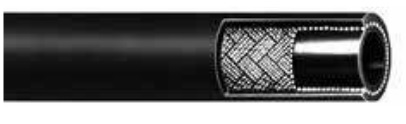

Neptune™ 1500
Product Specifications | |
ApplicationFor pressure washer equipment, agricultural sprayers and high-pressure air lines. Construction TubeNitrile synthetic rubber CoverBlue, Gray, Red, Yellow or Black oil-resistant synthetic rubber, RMA Class B (Medium Oil Resistance) ReinforcementBraided (1) synthetic yarn up through 1/2”. Braided (2) synthetic yarn for 3/4” Temperature Range-20 °F to 200°F (-29°C to 93°C) |
Packaging1/4”-5/16” – 550’ to 750’ reels, max 8 pieces, 25’ minimum BrandingExample: Continental ContiTech Neptune™ 1500 3/8” 1500 psi WP. Made in U.S.A. CouplingsContact fitting manufacturer for proper fitting Order Codes536-374 ( blue) |
|
Neptune™ 1500 SAP # ID Nom. OD Max. WP Weight Blue Gray Black Yellow in. mm in. mm psi MPa lb./ft. kg/m 20449806 20023093 20023102 1/4 6.4 0.59 15.0 1500 10.34 0.11 0.16 20023106 5/16 7.9 0.69 17.5 1500 10.34 0.15 0.22 20142362 20023096 20023109 20029580 3/8 9.5 0.75 19.1 1500 10.34 0.18 0.27 20590578 20023099 20023116 1/2 12.7 0.84 21.3 1200 8.27 0.19 0.28 Note: Not recommended for steam service. |
|
