NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Gauntlet Hoses
|
|

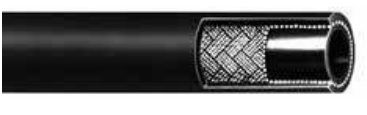

Gauntlet® 1500
Product Specifications | |
ApplicationGauntlet® 1500 is for pressure washer equipment with working pressures up to 1500 psi. Its super abrasionresistant cover provides maximum protection against adverse effects of oil and animal fats. Construction TubeNitrile synthetic rubber CoverBlack or Yellow oil-resistant Carbryn™ synthetic rubber, RMA Class A (High Oil Resistance) ReinforcementBraided (1) synthetic yarn up through 1/2”. Braided (2) synthetic yarn for 3/4” Temperature Range-20 °F to 200°F (-29°C to 93°C) |
Packaging500’ reel, maximum 3 pieces, 50’ increments BrandingExample: Continental ContiTech Gauntlet® 1500 3/8” 1500 psi. Made in U.S.A. CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Coupled lengths with MxMS fittings and Kink Guards available. Order Codes536-480 ( black) |
|
Gauntlet® 1500 SAP # ID Nom. OD Max. WP Weight Black Yellow Red in. mm in. mm psi MPa lb./ft. kg/m 20023338 20045137 1/4 6.4 0.59 15.0 1500 10.34 0.11 0.16 20023339 20023331 3/8 9.5 0.75 19.1 1500 10.34 0.18 0.27 20023341 20023333 20115073 1/2 12.7 0.84 21.3 1200 8.27 0.18 0.27
Note: Not recommended for steam service. |
|
