NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Brewline Hoses
|
|

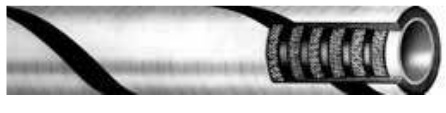

Plicord® Brewline
Product Specifications | |
ApplicationA quality discharge hose designed specifically for the highly demanding service of transferring non-oily liquid products in wineries and breweries. Construction TubeWhite chlorobutyl rubber (FDA/USDA compliant and conforms to 3-A Sanitary Standard 18-03) CoverRed EPDM with a white spiral stripe (wrapped impression) ReinforcementSpiral-plied synthetic fabric, 4 plies to 11/2” ID; 6 plies over 11/2” ID Temperature Range-40 °F to 220°F (-40°C to 104°C) |
Packaging100’ length, coiled, polywrapped BrandingExample: Continental ContiTech Plicord® Brewline® hose 250 psi; FDA, 3–A and USDA CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Order Codes549-885 |
| Plicord® Brewline SAP # ID Nom. OD Max. WP Weight Red in. mm in. mm psi MPa lb./ft. kg/m 20020324 3/4 19.1 1.34 34.0 250 1.72 0.54 0.80 20020327 1 25.4 1.69 42.9 250 1.72 0.81 1.21 20032192 1e 31.8 2.00 50.8 250 1.72 1.05 1.56 20020335 1f 38.1 2.23 56.6 250 1.72 1.19 1.77 20020341 2 50.8 2.88 73.2 250 1.72 1.86 2.77 20020345 2f 63.5 3.51 89.2 250 1.72 2.66 3.96 20020348 3 76.2 4.09 103.9 250 1.72 3.57 5.31 20020352 4 101.6 5.31 134.9 250 1.72 5.43 8.08 | |
