NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|

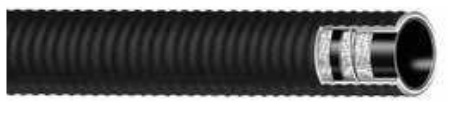

Blucor Hoses
|
|
Blucor™
Product Specifications | |
ApplicationBlucor™ material handling hose with the Continental ContiTech 150 psi bolt-on split flange coupling is an easy and economical choice. Blucor™ has the high strength needed to handle pressure or suction service in the transfer of dry bulk, slurry, salt, cement, fertilizers and a limited quantity of oil-based products. Construction Tube3/8” Black Pureten™, 3/8” Black ChemiTuf® (static dissipating/static conductive), or 3/8” Tan Pureten™ CoverBlack corrugated abrasion-resistant SBR (wrapped impression) ReinforcementSpiral-plied synthetic fabric with wire helix Temperature Range-25 °F to 180°F (-32°C to 82°C) |
Packaging3”-8” – coiled or straight and polywrapped BrandingExample: Continental ContiTech Blucor™ Black Pureten™ Liner CouplingsBlucor™ bolt-on split flange couplings, see next page. Non-Stock/SizesMaximum shipping length: 3”-8”: 100 ft.; 10”, 12” & 16”: 50 ft. Order Codes541-789 ( black Pureten™) |
|
Blucor™ SAP # ID Nom. OD Max. WP Bend Radius Vacuum HG Weight Black Pureten Tan Pureten Black Tufysn W/ Survivor Compound in. mm in. mm psi in. mm in. mm lb./ft. kg/m 20016075 20727995 20174317 20677611 3 76.2 4.39 111.5 150 16 406 29 737 4.63 6.89 20016084 20015583 20472262 20606370 4 101.6 5.25 133.4 150 20 508 29 737 5.67 8.44 20016105 20015584 20016070 20673534 6 152.4 7.37 187.2 150 36 914 29 737 9.48 14.11 20016127 20091843 20616942 20710232 8 203.2 9.44 239.8 150 48 1219 29 737 14.20 21.13 20016144 20015585 20099997 20548906 10 254.0 11.38 289.1 150 60 1524 29 737 16.63 24.75 20032306 20015586 20050994 12 304.8 13.81 350.8 100 72 1829 29 737 23.40 34.82 20562563 20693889 20766664 16 407.8 18.30 464.8 100 96 2438 29 737 40.60 |
|
