NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Arvac Hoses
|
|

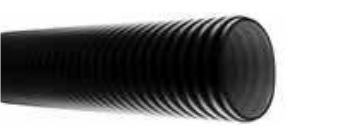

Arvac™ SW
Product Specifications | |
ApplicationHeavy-duty abrasion-resistant suction hose used for a variety of abrasive material-handling applications, including the transfer of sand, gravel, cement, fly ash, glass, metals, plastic pellets, fertilizers, rock salts and slurries. Static wire for static dissipation. Construction TubeHigher-temperature urethane CoverStatic-dissipating thermoplastic alloyed blend of nitrile, polyurethane and PVC ReinforcementRigid high-density PVC helix Temperature Range-40 °F to 158°F (-40°C to 70°C) |
Packaging11/4”-6” – 20’ lengths, polytube BrandingNot branded CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Non-Stock/SizesContact Continental ContiTech for special production run minimum requirements. Order Codes586-550 |
| SAP # ID Nom. OD Max. WP Weight Vacuum HG Bend Radius Length Black in. mm in. mm psi MPa lb./ft. kg/m in. mm in. mm ft. 20448195 1e 31.8 1.60 40.7 45 0.31 0.35 0.52 29 737 3.0 76 100 20448194 1f 38.1 1.87 47.4 40 0.28 0.39 0.58 29 737 3.0 76 100 20448193 2 50.8 2.46 62.5 40 0.28 0.67 0.99 29 737 2.5 63 100 20448192 2f 63.5 3.03 77.0 35 0.24 0.90 1.33 29 737 4.0 101 100 20448191 3 76.2 3.60 91.5 30 0.21 1.17 1.73 29 737 6.0 152 100 20448190 4 101.6 4.74 120.5 30 0.21 1.97 2.91 29 737 7.0 177 100 20447689 5 127.0 5.81 147.5 30 0.21 2.58 3.82 29 737 8.0 203 100 20452698 6 152.4 6.89 175.0 25 0.17 3.32 4.91 29 737 8.0 203 20 20452697 6 152.4 6.89 175.0 25 0.17 3.32 4.91 29 737 8.0 203 50 20447688 6 152.4 6.89 175.0 25 0.17 3.32 4.91 29 737 8.0 203 100 20447687 8 203.2 9.13 232.0 20 0.14 5.66 8.38 29 737 18.0 456 20 20450354 8 203.2 9.13 232.0 20 0.14 5.66 8.38 29 737 18.0 456 50 20447686 10 254.0 11.16 283.5 20 0.14 7.86 11.63 29 737 36.0 912 20 20460651 10 254.0 11.16 283.5 20 0.14 7.86 11.63 29 737 36.0 912 40 | |
