NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Allcrete Hoses
|
|

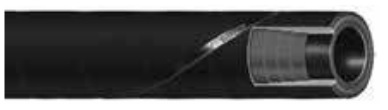

Allcrete® Textile Plaster, Grout & Concrete
Product Specifications | |
ApplicationFor use in plaster & grout and shotcrete applications, handling a multitude of materials being pumped to concrete structures, dams, tunnel faces, swimming pools, etc. For use as a flexible connection between pumping equipment and hard piping. Exceeds ASME B30.27-2009. 2:1 WP to burst ratio. Construction TubeBlack ChemiTuf® synthetic rubber CoverBlack SBR rubber (wrapped impression) ReinforcementSpiral-plied high-strength fabric Temperature Range-25°F to 180°F (-32°C to 82°C) |
Packaging50’ lengths, coiled and polywrapped Branding (Spiral)Example: Allcrete® Textile Ply Plaster, Grout and Concrete Continental ContiTech 2” 1233 psi / 85 Bars WP. Weight filled with concrete (150 lbs/ft3). Exceeds ASME B30.27-2009 CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Order Codes549-638, Survivor 549-802 |
|
Allcrete® Textile SAP # ID Nom. OD Max. WP Weight Black Survivor Compound in. mm in. mm psi MPa lb./ft. kg/m 20019934 20677614 1 25.4 1.67 42.3 1233 8.5 0.67 1.00 20019938 1e 32.0 1.93 49.0 1233 8.5 0.80 1.19 20019942 20673536 1f 38.1 2.31 58.7 1233 8.5 1.14 1.70 20019947 20673537 (50 ft) 20673538 (100 ft) 2 51.6 2.83 71.8 1233 8.5 1.46 2.18 20019960 20673539 2f 63.7 3.40 86.3 1233 8.5 1.96 2.92 20019965 20673580 3 76.1 3.92 99.6 1233 8.5 2.39 3.56 20019971 4 102.1 4.96 126.0 1233 8.5 3.16 4.67 20164566 5 127.0 6.06 153.3 1233 8.5 4.22 6.25 |
|
