Flexsteel Hoses
|
|

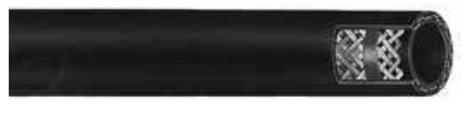

Flexsteel® 250 Steam
Product Specifications | |
ApplicationFor cleaning, heat control, fire prevention, pumping, thawing, blow-out service, steam pumps and hoists in open-end or permanent installation operations. It is used in refineries, shipyards, chemical plants, steel mills, foundries and heavy industrial applications where high strength is required and where severe environmental conditions are encountered. Construction TubePyrosyn® synthetic rubber CoverBlack or red Pyrosyn finish, pin-pricked ReinforcementBraided steel wire (3/4” and 1” have 2 steel wire braids) Temperature Range-40 °F to 450°F (-40°C to 232°C) |
PackagingReels or 50’ cut lengths (1/2” - 4 per box, 3/4” - 3 per box, 1” - 2 per box) BrandingExample: Continental ContiTech Flexsteel® 250 Steam Max WP 250 psi. Made in U.S.A. CouplingsCSee Continental ContiTech Hose Assembly Manual for most current crimp solutions. Order Codes539-070 ( black) |
|
Flexsteel® 250 Steam SAP # ID Nom. OD Max. WP Weight Black Red Black Wrapped Red Wrapped in. mm in. mm psi MPa lb./ft. kg/m 20023390 20136859 20575082 20767531 1/2 12.7 1.06 26.9 250 1.72 0.45 0.67 20023401 20023462 20757055 20757277 3/4 19.1 1.28 32.5 250 1.72 0.56 0.83 20023419 20024994 20760526 1 25.4 1.63 41.4 250 1.72 0.91 1.35 20615488 20620044 1e 31.8 1.88 47.8 250 1.72 1.02 1.52 20575082 20620048 1f 38.1 2.12 53.8 250 1.72 1.23 1.830 20617154 20620060 2 50.8 2.70 68.6 250 1.72 1.79 2.66 |
|
