Flexdock Hose
|
|

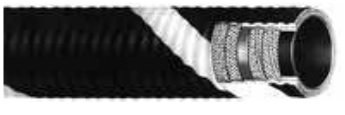

Flexdock® 225
Product Specifications | |
ApplicationBuilt with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the type of material handled. Construction TubeNitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn® tube for up to 100% aromatics. CoverBlack Wingprene® synthetic cover, corrugated, wrapped finish ReinforcementSpiral-plied heavy-duty synthetic fabric with double wire helix Temperature Range-25 °F to 200°F (-32°C to 93°C) |
PackagingChloroplast heavy-duty packaging Branding(Spiral)Example: Continental ContiTech Flexdock® 225 psi WP Nitrile Oil Service CouplingsCoupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges on request. Swage nipples are offered up to 10“. Hose assembly is electrically continuous unless otherwise specified by customer. Non-Stock/SizesCustom lengths available, contact Customer Service. Order Codes541-532 ( Nitrile tube) |
|
Flexdock™ 225 SAP # ID Nom. OD Max. WP Bend Radius Vacuum HG Weight Nitrile Tube Flosyn Tube in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m 20346713 20424276 3 76.2 3.89 98.8 225 1.55 11 279 29 737 3.28 4.88 20655171 20054995 4 101.6 5.29 134.4 225 1.55 15 381 29 737 6.30 9.38 20032061 20054996 6 152.4 7.34 186.4 225 1.55 22 559 29 737 9.50 14.14 20476794 20129447 8 203.2 9.43 239.5 225 1.55 30 762 29 737 13.81 20.55 20098252 20139283 10 254.0 11.63 295.4 225 1.55 40 1016 29 737 20.49 30.49 20704428 20424277 12 304.8 13.72 348.5 225 1.55 60 1524 29 737 25.13 37.40 Note: Factory coupled hose manufactured according to the code of Federal Regulations Standard 33 CFR 154.500 and 33 CFR 156.170. |
|
