Extremeflex Hose

ExtremeFlex™ Beverage

Enhanced flexibility for enhanced operational efficiencies

Ideal for beer, wine, distillery and beverage (edible liquid) transfer processing facilities, ExtremeFlex Beverage features a microberesistant chlorobutyl tube that does not impart taste or smell. Suited for applications requiring flexible and/or tight bend connections, ExtremeFlex is lightweight, flexible and easy to handle.

Product Specifications

Application

AFor beer, wine, distillery and beverage (edible liquid) transfer processing facilities. Ideal for applications requiring flexible and/ or tight bend connections.

Construction Tube

White Chlorobutyl (FDA/ USDA compliant & conforms to 3-A Sanitary Standard 18-03).

Cover

Corrugated grey chemical (wrapped impression), new corrugated red EZ Clean UHMWPE cover (semi-smooth finish).

Reinforcement

Spiral-plied fabrics with double galvanized helix wire.

Temperature Range

-30° F to 220° F (-34° C to 104° C)

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

Order Codes

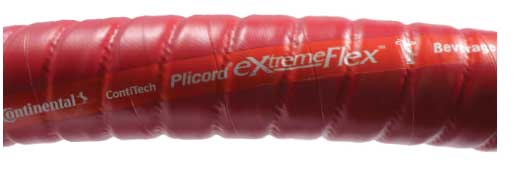

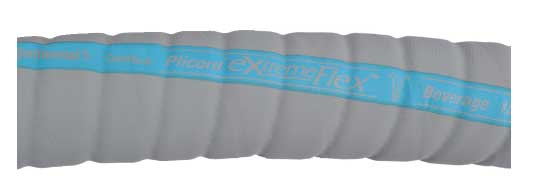

549-603 gray cover, 549-605 EZ
Clean red cover

ExtremeFlex™ beverage gray hose specifications*

	in.	mm	in.	mm	psi	MPa	in.	mm	in. Hg	mm Hg	lb./ft.	kg/m
Part #	ID		OD		Working Pressure at 72°F (22°C)		Bend Radius		Vacuum at 72°F (22°C)		Weight
20762678	1	25.4	1.56	39.7	250	1.72	1.5	38	29	737	.73	1.09
20762679	1.5	38.1	2.02	51.3	250	1.72	2.3	57	29	737	.92	1.38
20762651	2	50.8	2.53	64.2	250	1.72	3.0	76	29	737	1.20	1.79
20762652	3	76.2	3.59	91.2	200	1.38	4.5	114	29	737	2.02	3.01
20762653	4	101.6	4.60	116.8	150	1.03	6.0	152	29	737	2.76	4.11

*Excludes EZ Clean cover

ExtremeFlex™ beverage red hose specifications*

	in.	mm	in.	mm	psi	MPa	in.	mm	in. Hg	mm Hg	lb./ft.	kg/m
Part #	ID		OD		Working Pressure at 72°F (22°C)		Bend Radius		Vacuum at 72°F (22°C)		Weight
20776605	1	25.4	1.52	38.7	250	1.72	2	51	29	737	.65	.96
20762754	1.5	38.1	2.03	51.6	250	1.72	3	76	29	737	.93	1.38
20752524	2	50.8	2.537	64.5	250	1.72	4	102	29	737	1.21	1.80
20762758	3	76.2	3.601	91.5	200	1.38	6	152	29	737	2.03	3.02
20762760	4	101.6	4.607	117	150	1.03	8	203	29	737	2.77	4.12
