Dixon Boss Couplings

Javascript DHTML Drop Down Menu Powered by dhtml-menu-builder.com

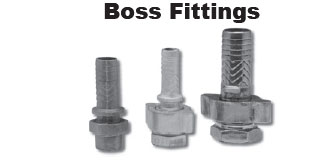

Boss and EZ-Boss ground joint and washer type couplings, male and LP stems, Boss clamps, air hammer fittings, Boss Holedall fittings, steam quick disconnects, hammer unions, Dixon mining fittings.

Features: The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut onto the spud. When connected they achieve a mechanical, as well as, a pressure seal.

Services: Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fl uid petroleum, chemicals and liquid petroleum gas up to 1" ID. Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose. Consult the factory for specifi c media capabilities.

Purpose: Boss couplings supply a convenient threaded fi tting to connect two lengths of hose, or a single length to a male or female threaded (NPT) outlet.



Boss Ground Joint Seal

Positive Metal-to-Polymer Seal

• A leakproof seal is formed when the metal head of the stem makes contact with the patented polymer seat in the spud.

• The non-metallic polymer seat resists most chemicals found in manufacturing facilities (reference corrosion resistance chart on pages 512-517).

• Recommended for steam service up to 450°F

• Easy to seal

• Works with existing ground joint fittings

• Plated steel and/or iron

• Use with Boss clamps found on pages 88 and 89.


Products Recommended for Steam Service

Quick Disconnect Fittings
Quick disconnect fi ttings (socket and plug) are available in solid brass with stainless steel springs and locking balls in sizes ¼" through 1½". For further information see page 92.

GJ Boss™ Female Ground Joint Fittings
GJ Boss™ female ground joint fi ttings are available in plated steel and/or iron in sizes ¼" through 6". For further information see page 93.

Boss Female Washer Seal Fittings
Boss female washer seal fi ttings are available in plated steel and/or iron in sizes 3/8" through 6". For further information see page 94.

Boss Male Stems
Boss male stems are available in steel bar stock in sizes ¼" through 1"; iron in sizes 1¼" through 4"; 316 stainless steel in sizes ½" through 4" and brass in sizes ¾" through 3". For further information see page 95.

Boss Clamps
Boss clamps in the 2-bolt and 4-bolt style are available in plated iron in sizes ¼" through 3"; stainless steel in sizes ½" through 3" and brass in sizes ½" through 2". Boss clamps in the three-piece style are available in plated iron in sizes 3" through 6". For further information see pages 98 and 99.

180° Steam Gauge Siphon
180° steam gauge siphon is available in red brass pipe in ¼". In order to prevent live steam from entering a pressure gauge bourdon tube a siphon fi lled with water should be installed between the gauge and the process line. For further information see page 255.

250 PSIG Steam Ball Valve
250 lb. steam ball valves are available with a threaded bronze valve, 316 stainless steel ball and stem in sizes ½" through 2". For further information see page 504.
