Testing:
• All assembled pumps are hydrostatically tested.

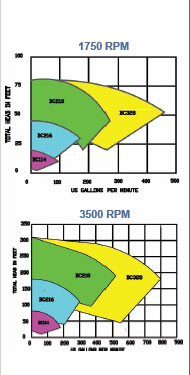

• Certified performance curves are available.

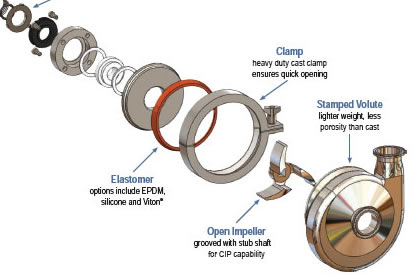

Mechanical Specifications
• Volute: 316L stainless steel
• Impeller: CF8M (316) stainless steel
• Backplate: 316L stainless steel
• Stub Shaft: 316L stainless steel

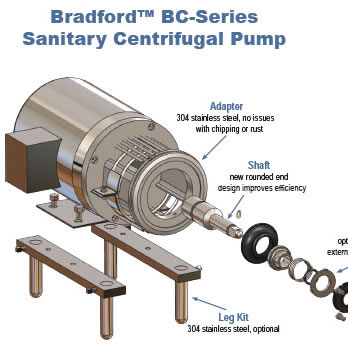

• Adapter: 304 stainless steel
• Optional Leg Kit: 304 stainless steel
• Seal Types: externally balanced 'D' & 'DG' with clamped in seat
• Rotary Seal Material: carbon
• DG Seal Seat Material: silicon carbide, ceramic and tungsten carbide
• Elastomers: EPDM, silicone and Viton®
• Finish: sanitary polish 32RA Standard Construction Performance Characteristics
• Nominal Capacity: up to 780 GPM
• Temperature: 32°F to 212°F, consult factory for other temperatures
• Nominal speed: up to 3500 RPM - 60 Hz
• Motor: standard C-face, 1750 & 3450 RPM, TEFC
and washdown, foot mounted
• Additional motor types available upon request
• Mounting: pump head mounted to a C-Face motor |
