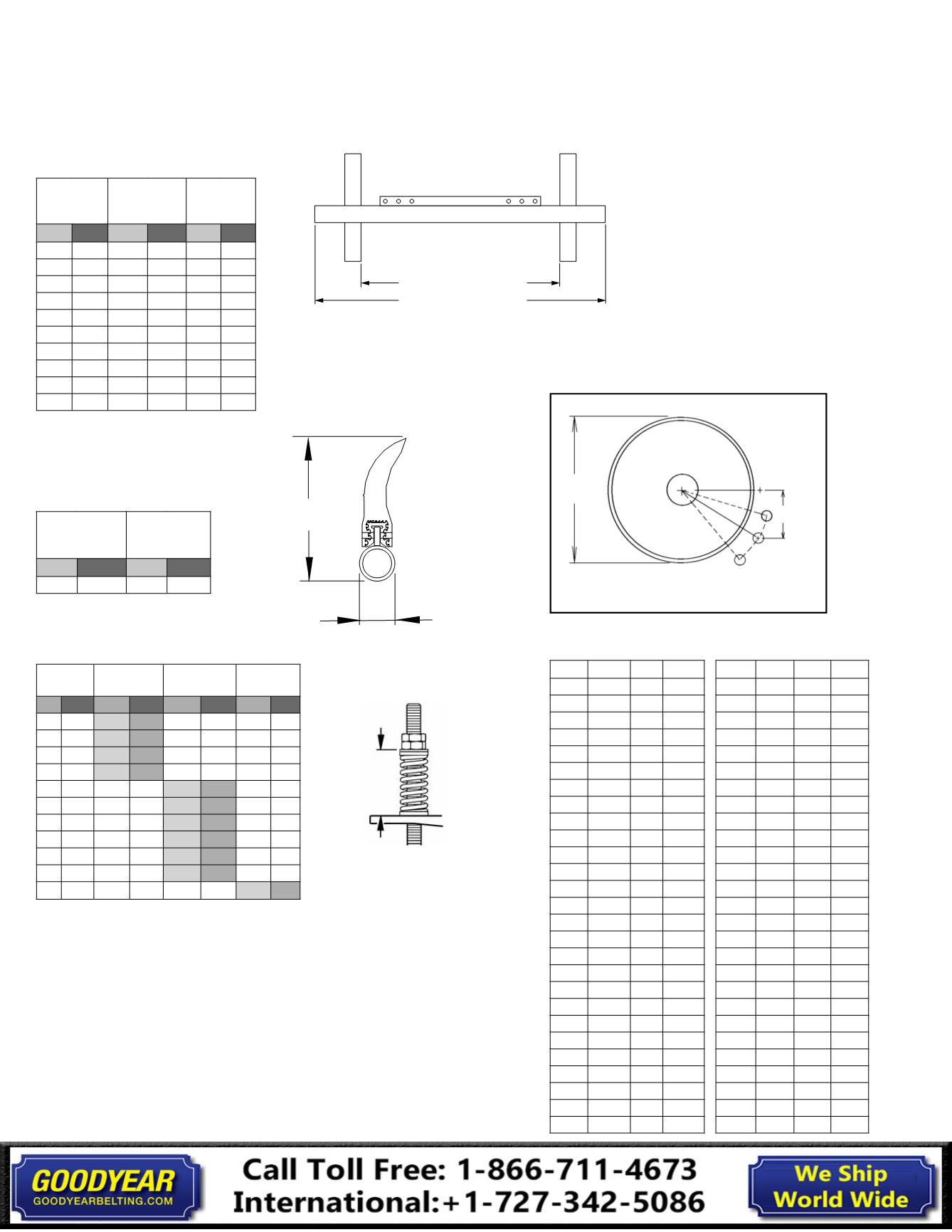

Specifications
& Guidelines
EZP1 Stainless Steel
Precleaner with
White ConShear™ Blade
Specifications:
• Maximum Belt Speed...........................................700 FPM (3.5M/sec)
• Temperature Rating ..............................................-30°F to 180°F (-35°C to 82°C)
• Minimum Pulley Diameter ...................................10" (250mm)
• Blade Height ..........................................................7-1/4" (185mm)
• Usable Blade Wear Length .................................4" (100mm)
• Blade Material.......................................................Urethane (chemical resistant/
food grade)
• Available for Belt Widths.....................................12" to 72" (300 to 1800mm)
Top of
washer
to top of
torque
arm
Pole Location Specs
A = Pulley Diameter + Lagging and Belt
C = Critical Spec to move location if necessary
A X
C
Y
Move Dim. C
on arc
*
*Each pole size can be used with a blade size either belt
width minus 2" (50mm), belt width minus 8" (200mm), or
belt width minus 14" (350mm).
Max Conveyor Span
Pole Length
Clearance Guidelines
For Installation
HORIZONTAL
CLEARANCE
REQUIRED
VERTICAL
CLEARANCE
REQUIRED
in. mm in. mm
4 100 9 1/2 238
Pole Length Specifications
CLEANER
SIZE
POLE
LENGTH
MAXIMUM
CONVEYOR
SPAN
in. mm in. mm in. mm
12 300 42 1050 37 925
18 450 48 1200 43 1075
24 600 54 1350 49 1225
30 750 60 1500 55 1375
36 900 66 1650 61 1525
42 1050 72 1800 67 1675
48 1200 78 1950 73 1825
54 1350 88 2200 83 2075
60 1500 94 2350 89 2225
72 1800 106 2650 101 2525
Pole Diameter - 2-3/8" (60mm)
Spring Length Chart
BLADE
WIDTH
PURPLE
SPRING
WHITE
SPRING
GOLD
SPRING
in. mm in. mm in. mm in. mm
10 250 5 5/8 143 6 3/8 162 N/A N/A
16 400 5 127 6 1/8 156 N/A N/A
22 550 4 3/8 111 6 152 N/A N/A
28 700 3 7/8 98 5 7/8 149 N/A N/A
34 850 N/A N/A 5 5/8 143 6 1/8 156
40 1000 N/A N/A 5 1/2 140 6 152
46 1150 N/A N/A 5 1/4 133 5 7/8 149
52 1300 N/A N/A 5 1/8 130 5 7/8 149
58 1450 N/A N/A 5 127 5 3/4 146
64 1600 N/A N/A 4 3/4 121 5 5/8 143
70 1750 N/A N/A N/A N/A 5 1/2 140
Shading indicates preferred spring option
Pole Location Chart
IMPERIAL
A X Y C
10 3 9 9 1/2
11 3 3/4 9 9 3/4
12 4 3/8 9 10
13 5 3/8 9 10 1/2
14 5 7/8 9 10 3/4
15 6 3/8 9 11 1/4
16 7 1/8 9 11 1/2
17 7 7/8 9 12
18 8 1/4 9 12 1/4
19 9 9 12 3/4
20 9 3/8 9 13
21 10 9 13 1/2
22 10 3/4 9 14
23 11 3/8 9 14 1/2
24 12 9 15
25 12 5/8 9 15 1/2
26 13 1/4 9 16
27 13 7/8 9 16 1/2
28 14 3/8 9 17
29 15 9 17 1/2
30 15 5/8 9 18
31 16 1/8 9 18 1/2
32 16 3/4 9 19
33 17 1/4 9 19 1/2
34 17 7/8 9 20
35 18 3/8 9 20 1/2
36 19 9 21
Pole Location Chart
METRIC
A X Y C
250 74 230 242
275 92 230 248
300 108 230 254
325 131 230 265
350 146 230 273
375 166 230 284
400 179 230 291
425 195 230 301
450 207 230 309
475 223 230 320
500 235 230 329
525 249 230 339
550 266 230 352
575 283 230 365
600 299 230 377
625 314 230 390
650 330 230 402
675 346 230 415
700 360 230 427
725 374 230 439
775 389 230 452
775 403 230 464
825 417 230 477
825 432 230 489
850 446 230 501
875 460 230 514
900 474 230 526
