2
4
1
3
3a
7
5
5a
Detail view of
Item 7
6
(hidden)

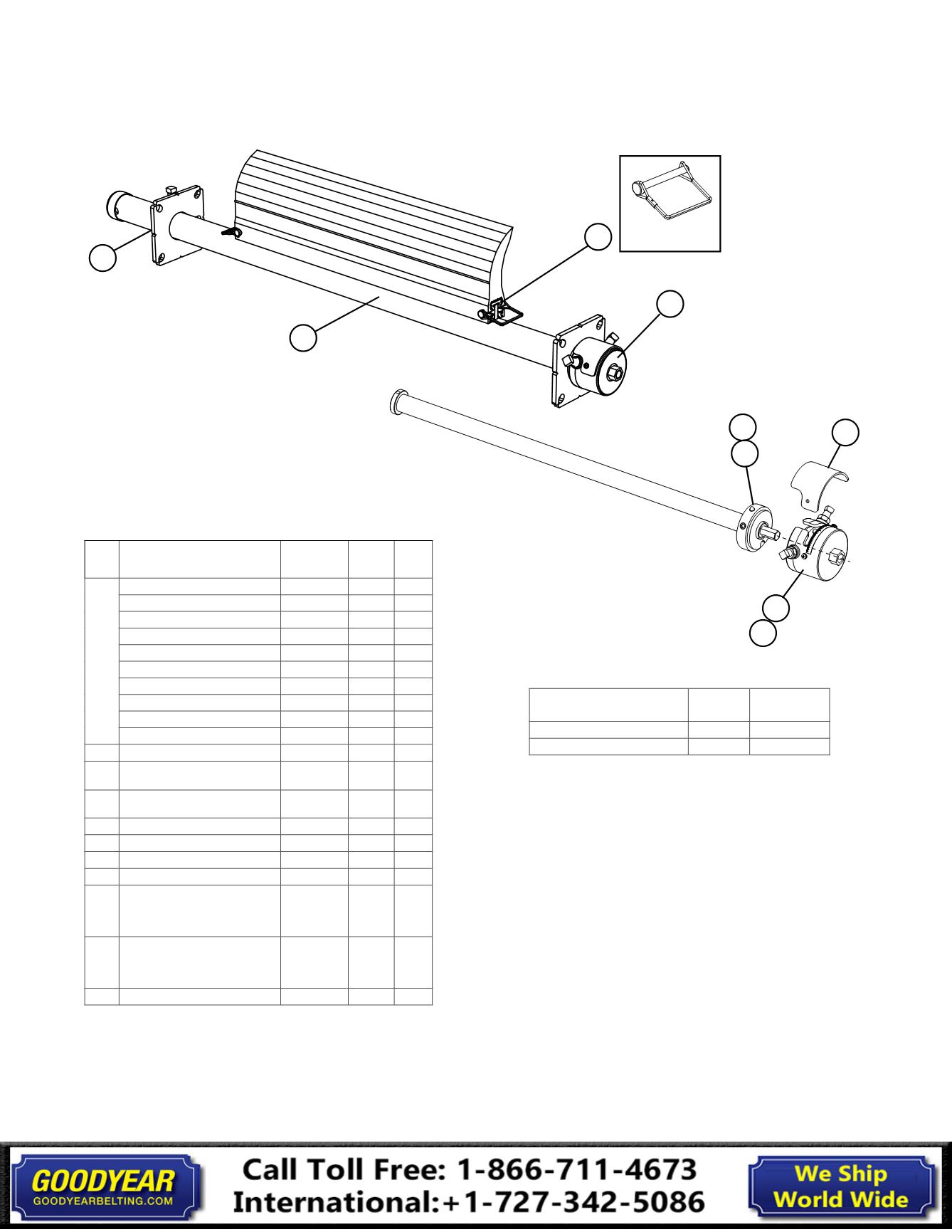

Replacement
Parts List
EZP1T
TwistTensioner Precleaner
Torsion Bar Tensioner Selection Chart
CLEANER BLADE WIDTH 77384EZPTBT
77385
EZPTBTHD
ConShear 12" - 48" (300 - 1200mm) X
ConShear 54" - 72" (1350 - 1800mm) X
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
12" (300mm) Pole EZP1P12 75619 17.4
18" (450mm) Pole EZP1P18 75620 20.3
24" (600mm) Pole EZP1P24 75621 22.7
30" (750mm) Pole EZP1P30 75622 26.5
36" (900mm) Pole EZP1P36 75623 30.4
42" (1050mm) Pole EZP1P42 75624 32.7
48" (1200mm) Pole EZP1P48 75625 35.3
54" (1350mm) Pole EZP1P54 75626 39.2
60" (1500mm) Pole EZP1P60 75627 43.3
72" (1800mm) Pole EZP1P72 75772 48.2
2 Torsion Mounting Plate Kit* (2 ea.) EZPTMPK 78507 8.7
3 Torsion Cap Kit* (1 ea.)
(includes 1 ea. Item 4) EZPTCK 78508 3.2
3a Torsion Cap Kit HD* (1 ea.)
(includes 1 ea. Item 4) EZPTCKHD 78509 3.2
4 Torsion Shield EZPTSR 78510 .1
5 Torsion Spring Kit EZPTSK 78511 6.0
5a Torsion Spring Kit HD EZPTSKHD 78512 8.5
6 Pole Lock* (1 ea.) EZP1PL 75641 1.1
–
Torsion Bar Tensioner
for blade widths 12" - 48"
(300 - 1200mm)
(includes 1 each items 3, 4, & 5)
EZPTBT 77384 17.4
–
Torsion Bar Tensioner HD
for blade widths 54" - 72"
(1350 - 1800mm)
(includes 1 each items 3a, 4, & 5a)
EZPTBTHD 77385 20.0
7 Blade Pin (1 ea.) EZP1BP 75642 0.1
*Hardware Included
Lead time: 1 working day
