Specifications:
• Maximum Belt Speed.....................................................700 FPM (3.5M/sec)
• Temperature Rating (ConShear, ConShear White)....-30°F to 180°F (-35°C to 82°C)
• Temperature Rating (ConShear High Temp)...............Up to 275°F (135°C) with spikes to 325°F (164°C)
• Minimum Pulley Diameter .............................................10" (250mm)
• Blade Height ....................................................................7-1/4" (185mm)
• Usable Blade Wear Length ...........................................4" (100mm)
• Blade Material.................................................................Urethane (proprietary blend for abrasion resistance
...........................................................................................and long wear)
• Available for Belt Widths...............................................12" to 72" (300 to 1800mm)

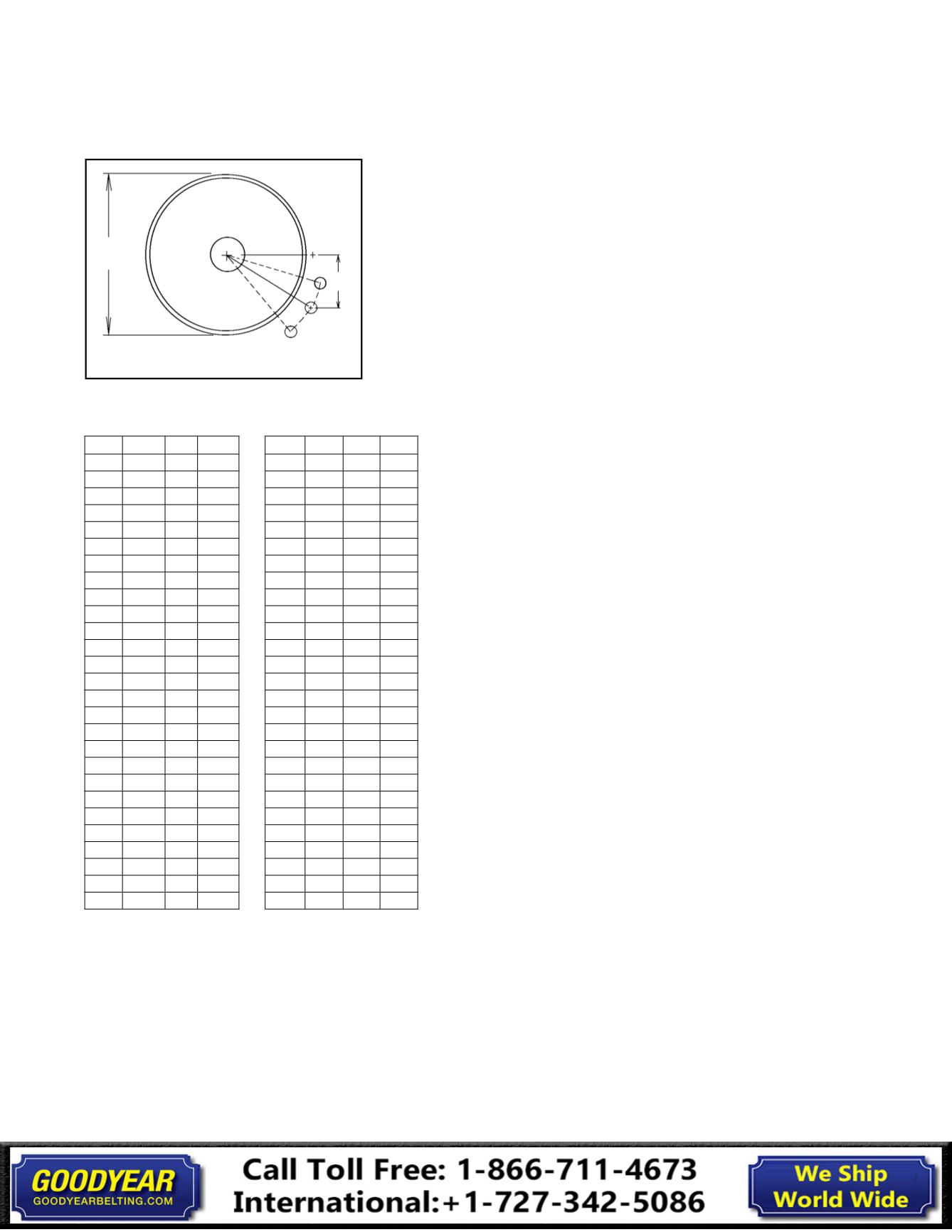

Pole Location Specs
A = Pulley Diameter + Lagging and Belt
C = Critical Spec to move location if necessary
A
X
C
Y
Move Dim. C
on arc
Specifications
& Guidelines
EZP1 & EZP1T
Standard Duty Precleaners
Pole Location Chart
IMPERIAL
A X Y C
10
3
9
9 1/2
11
3 3/4
9
9 3/4
12
4 3/8
9
10
13
5 3/8
9 10 1/2
14
5 7/8
9 10 3/4
15
6 3/8
9 11 1/4
16
7 1/8
9 11 1/2
17
7 7/8
9
12
18
8 1/4
9 12 1/4
19
9
9 12 3/4
20
9 3/8
9
13
21
10
9 13 1/2
22 10 3/4 9
14
23 11 3/8 9 14 1/2
24
12
9
15
25 12 5/8 9 15 1/2
26 13 1/4 9
16
27 13 7/8 9 16 1/2
28 14 3/8 9
17
29
15
9 17 1/2
30 15 5/8 9
18
31 16 1/8 9 18 1/2
32 16 3/4 9
19
33 17 1/4 9 19 1/2
34 17 7/8 9
20
35 18 3/8 9 20 1/2
36
19
9
21
Pole Location Chart
METRIC
A X Y C
250
74
230 242
275
92
230 248
300
108 230 254
325
131 230 265
350
146 230 273
375
166 230 284
400
179 230 291
425
195 230 301
450
207 230 309
475
223 230 320
500
235 230 329
525
249 230 339
550
266 230 352
575
283 230 365
600
299 230 377
625
314 230 390
650
330 230 402
675
346 230 415
700
360 230 427
725
374 230 439
750
389 230 452
775
403 230 464
800
417 230 477
825
432 230 489
850
446 230 501
875
460 230 514
900
474 230 526
