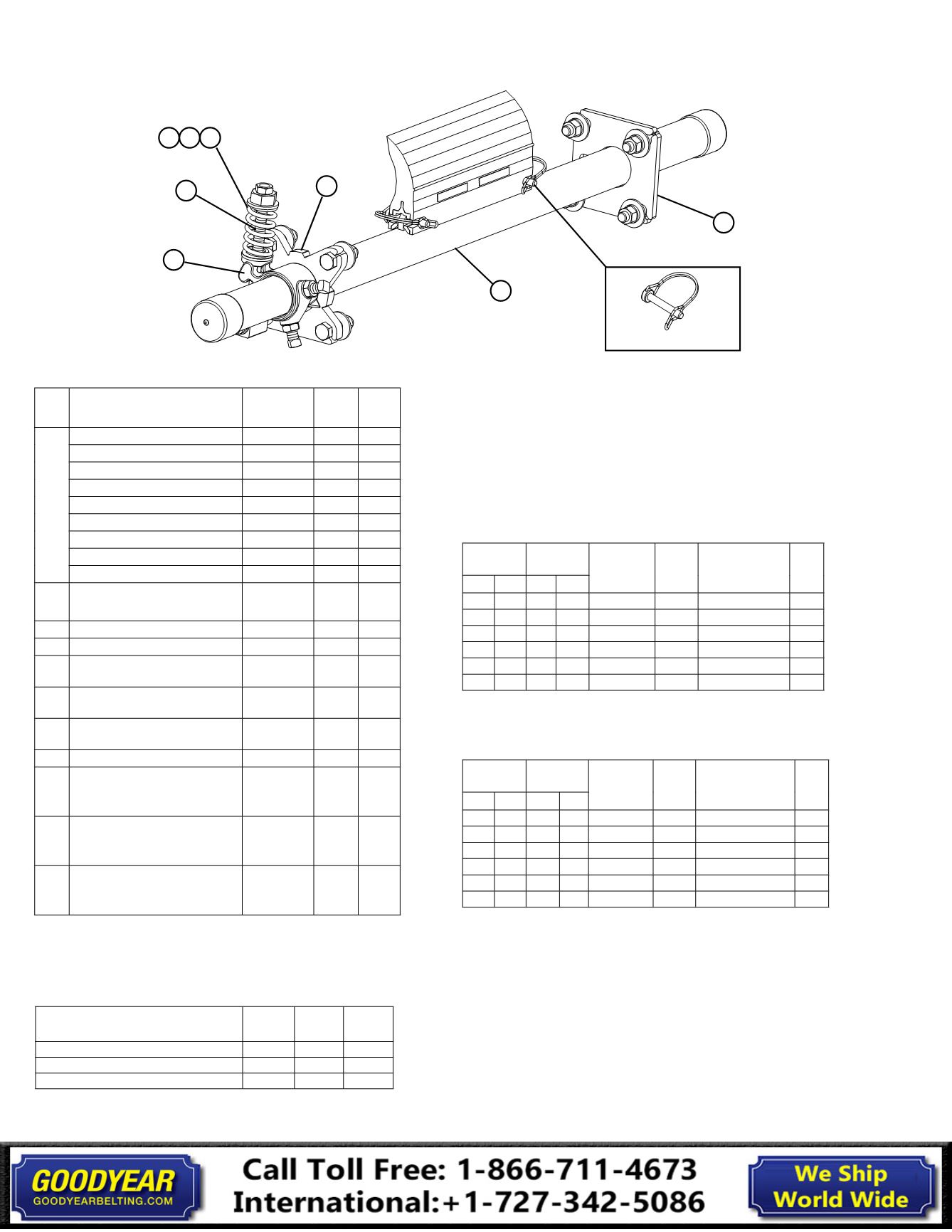

EZP-LS
Limited Space Precleaner
5
2
2
5a 5b
Detail view of Item 6
3
4
1
For best results use Flexco Genuine
Replacement Blades and Parts.
U.S. Patent No. D482,508S (blade)
Patent Pending (tensioner)
Spring Tensioner Selection Chart
CLEANER BLADE WIDTH
77121
Purple
77122
White
77123
Silver
ConShear-LS 10" - 16" (250 - 400mm)
X
ConShear-LS 22" - 46" (550 - 1150mm)
X
ConShear-LS 52" - 58" (1300 - 1450mm)
X
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
12" (300mm) Pole
LSP12
77070
13.3
18" (450mm) Pole
LSP18
77071 15.5
24" (600mm) Pole
LSP24
77072
17.7
30" (750mm) Pole
LSP30
77073
19.9
36" (900mm) Pole
LSP36
77074
22.1
42" (1050mm) Pole
LSP42
77075
24.3
48" (1200mm) Pole
LSP48
77076
26.5
54" (1350mm) Pole
LSP54
77077
28.7
60" (1500mm) Pole
LSP60
77078
31.0
2
Mounting Plate Kit*
(incl. 1 tensioner mounting plate and 1
pole mounting plate)
LSTMPK
77366 3.6
3
Torque Arm Kit*
(1 ea.)
LST-TAK
77120 1.4
4
Pivot Block/Rod Kit*
(1 ea.)
LSTPB-RK
77367
.8
5
Tension Spring - Purple
(1 ea.)
for blades 10-16" (250-400mm)
LS-SPK
77365
.2
5a Tension Spring - White
(1 ea.)
for blades 22" - 46" (550 - 1150mm)
LS-SW
77117
.3
5b Tension Spring - Silver
(1 ea.)
for blades 52" - 58" (1300 - 1450mm)
LS-SS
77118
.3
6
LS Blade Pin
(1 ea.)
LS-BP
77114
.1
-
LST Spring Tensioner* - Purple
incl. 1 tensioner mounting plate and
1 ea. items 3, 4 & 5
for blades 10"-16" (250-400mm)
LST-P
77121 7.5
-
LST Spring Tensioner* - White
incl. 1 tensioner mounting plate and
1 ea. items 3, 4 & 5a
for blades 22"- 46" (550 - 1150mm)
LST-W
77122 7.6
-
LST Spring Tensioner* - Silver
incl. 1 tensioner mounting plate and 1 ea.
items 3, 4 & 5b
for blades 52"- 58" (1300 - 1450mm)
LST-S
77123 7.6
Hardware Included
For Arch/Gordon Mini-Saber Blades
BELT
WIDTH
BLADE
WIDTH ORDERING
NUMBER
ITEM
CODE
ARCH/GORDON
PART NUMBER
WT.
LBS.
in.
mm in.
mm
18 450 16 400 RBAGM-16 77106 MRBMN00018 3.3
24 600 22 550 RBAGM-22 77107 MRBMN00024 4.6
30 750 28 700 RBAGM-28 77108 MRBMN00030 5.8
36 900 34 850 RBAGM-34 77109 MRBMN00036 7.1
42 1050 40 1000 RBAGM-40 77110 MRBMN00042 8.3
48 1200 46 1150 RBAGM-46 77111 MRBMN00048 9.6
Additional sizes are available upon request. Call for pricing.
For ASGCO Mini-Skalper Blades
BELT
WIDTH
BLADE
WIDTH ORDERING
NUMBER
ITEM
CODE
ASGCO
PART NUMBER
WT.
LBS.
in.
mm in.
mm
18 450 12 400 RBAMS-12 77376 ASG-SBBM-12A 2.1
24 600 18 550 RBAMS-18 77377 ASG-SBBM-18A 3.3
30 750 24 700 RBAMS-24 77378 ASG-SBBM-24A 4.6
36 900 30 850 RBAMS-30 77379 ASG-SBBM-30A 5.8
42 1050 36 1000 RBAMS-36 77380 ASG-SBBM-36A 7.1
48 1200 42 1150 RBAMS-42 77381 ASG-SBBM-42A 8.3
Additional sizes are available upon request. Call for pricing.
