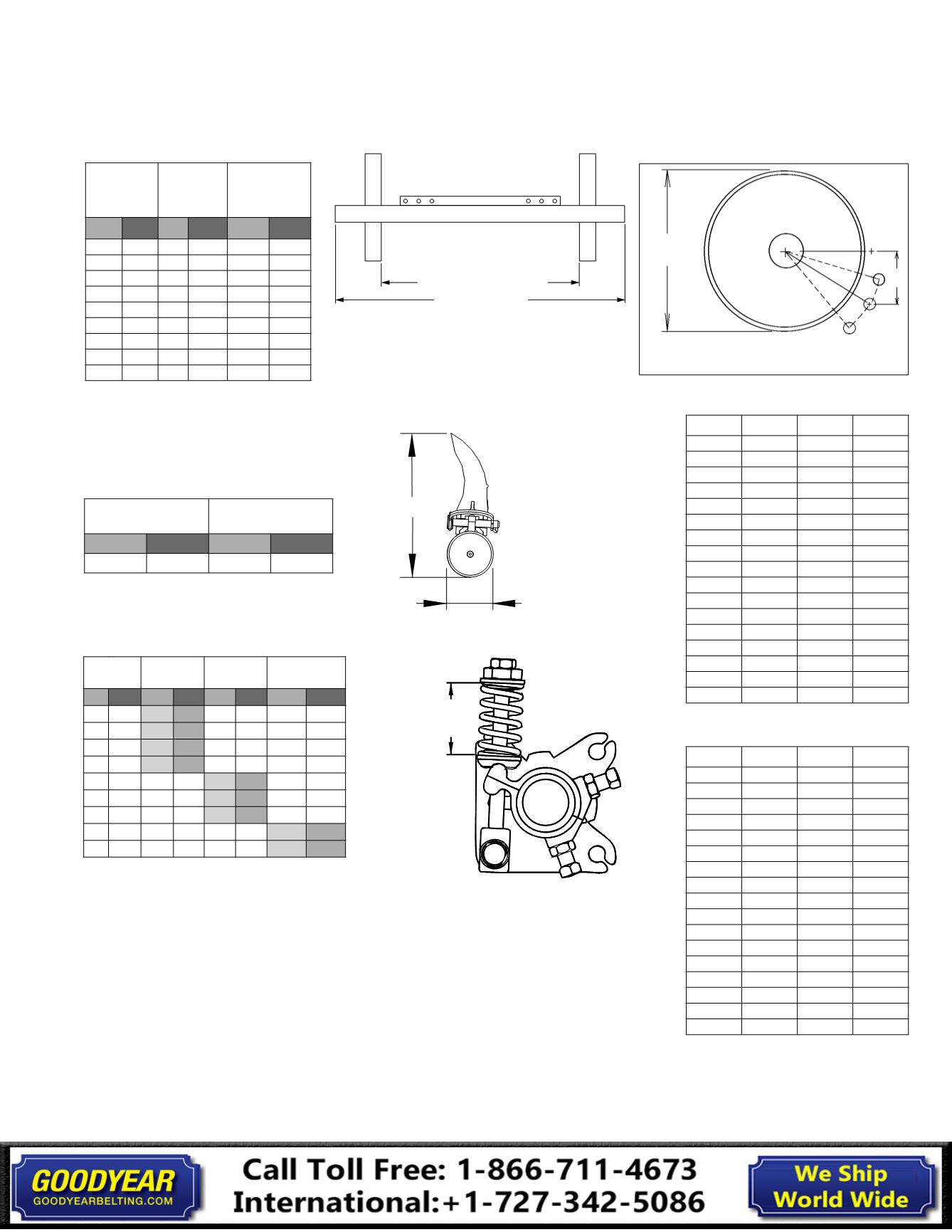

Specifications
& Guidelines
EZP-LS Stainless Steel
Limited Space Precleaner
with White ConShear
™
LS Blade
Specifications:
• Maximum Belt Speed....................................................... 500 FPM (2.5M/sec)
• Temperature Rating (ConShear, ConShear White)...... -30°F to 180°F (-35°C to 82°C)
• Temperature Rating (ConShear High Temp)................. Up to 275°F (135°C) with spikes to
............................................................................................. 325°F (164°C)
• Minimum Pulley Diameter ............................................... 6" (150mm)
• Blade Height ...................................................................... 4.5" (115mm)
• Usable Blade Wear Length ............................................. 2-3/8" (60mm)
• Blade Material (ConShear White).................................. Urethane (chemical resistant/food grade)
• Available for Belt Widths................................................. 12" to 60" (300 to 1500mm).
Vertical
Horizontal
Pole Location Specs
A = Pulley Diameter + Lagging and Belt
C = Critical Spec to move location if necessary
X
A
C
Y
Pole Length
*
Max Conveyor Span
Move Dim. C
on arc
Pole Location Chart -
Imperial
A
X
Y
C
6"
2 5/8"
5 1/2"
6 1/8"
7"
3 1/4"
5 1/2"
6 3/8"
8"
3 7/8"
5 1/2"
6 3/4"
9"
4 3/8"
5 1/2"
7"
10"
5"
5 1/2"
7 3/8"
11"
5 1/2"
5 1/2"
7 3/4"
12"
6 1/8"
5 1/2"
8 1/4"
13"
6 5/8"
5 1/2"
8 5/8"
14"
7 1/8"
5 1/2"
9"
15"
7 5/8"
5 1/2"
9 3/8"
16"
8 1/4"
5 1/2"
9 7/8"
17"
8 3/4"
5 1/2"
10 3/8"
18"
9 1/4"
5 1/2"
10 3/4"
19"
9 3/4"
5 1/2"
11 1/4"
20"
10 1/4"
5 1/2"
11 5/8"
21"
10 3/4"
5 1/2"
12 1/8"
22"
11 1/4"
5 1/2"
12 1/2"
Pole Location Chart - Metric
A
X
Y
C
150
65
140
150
175
81
140
155
200
96
140
162
225
109
140
171
250
125
140
179
275
138
140
189
300
153
140
198
325
166
140
209
350
178
140
219
375
191
140
229
400
206
140
239
425
219
140
252
450
231
140
263
475
244
140
273
500
256
140
284
525
269
140
295
550
281
140
307
Measure spring
length only (do not
include bushings)
Pole Length Specifications
CLEANER
SIZE
POLE
LENGTH
MAXIMUM
CONVEYOR
SPAN
in.
mm in.
mm in.
mm
12 300 42 1050 37
925
18 450 48 1200 43 1075
24 600 54 1350 49 1225
30 750 60 1500 55 1375
36 900 66 1650 61 1525
42 1050 72 1800 67 1675
48 1200 78 1950 73 1825
54 1350 88 2200 83 2075
60 1500 94 2350 89 2225
Pole Diameter - 1-7/8" (48 mm)
Clearance Guidelines
for Installation
HORIZONTAL
CLEARANCE REQUIRED
VERTICAL
CLEARANCE REQUIRED
in.
mm
in.
mm
3
75
6 1/2
165
*Each pole size can be used with a blade size
either belt width minus 2" (50mm), belt width minus
8" (200mm), or belt width minus 14" (350mm).
Spring Length Chart
BLADE
WIDTH
BLACK
SPRING
WHITE
SPRING
DUAL WHITE
SPRINGS
in.
mm in.
mm in.
mm in.
mm
10 250 3 1/2 89 3 3/4 95 3 7/8
98
16 400 3 1/4 83 3 5/8 92 3 7/8
98
22 550 2 7/8 73 3 1/2 89 3 3/4
95
28 700 2 5/8 67 3 3/8 86 3 3/4
95
34 850 N/A N/A 3 1/4 83 3 5/8
92
40 1000 N/A N/A 3 1/8 79 3 5/8
92
46 1150 N/A N/A 3 76 3 1/2
89
52 1300 N/A N/A N/A N/A 3 1/2
89
58 1450 N/A N/A N/A N/A 3 3/8
86
Shading indicates preferred spring option
