Flexco Belt Cleaners Handbook GoodyearBelting.com 866-711-4673

32 / 206

• phone: 1-630-971-0150 32
3a
2 2a
2a
2
3
Detail view of Item 4
1
Spring Tensioner Selection Chart
For best results use Flexco Genuine Replacement Blades and Parts.
CLEANER BLADE WIDTH
77124
Black
(single)
77125
White
(single)
77126
White
(dual)
Food Grade-LS 10" - 28" (250 - 700mm) X
Food Grade-LS 34" - 46" (850 - 1150mm) X
Food Grade-LS 52" - 70" (1300 - 1750mm) X
Replacement

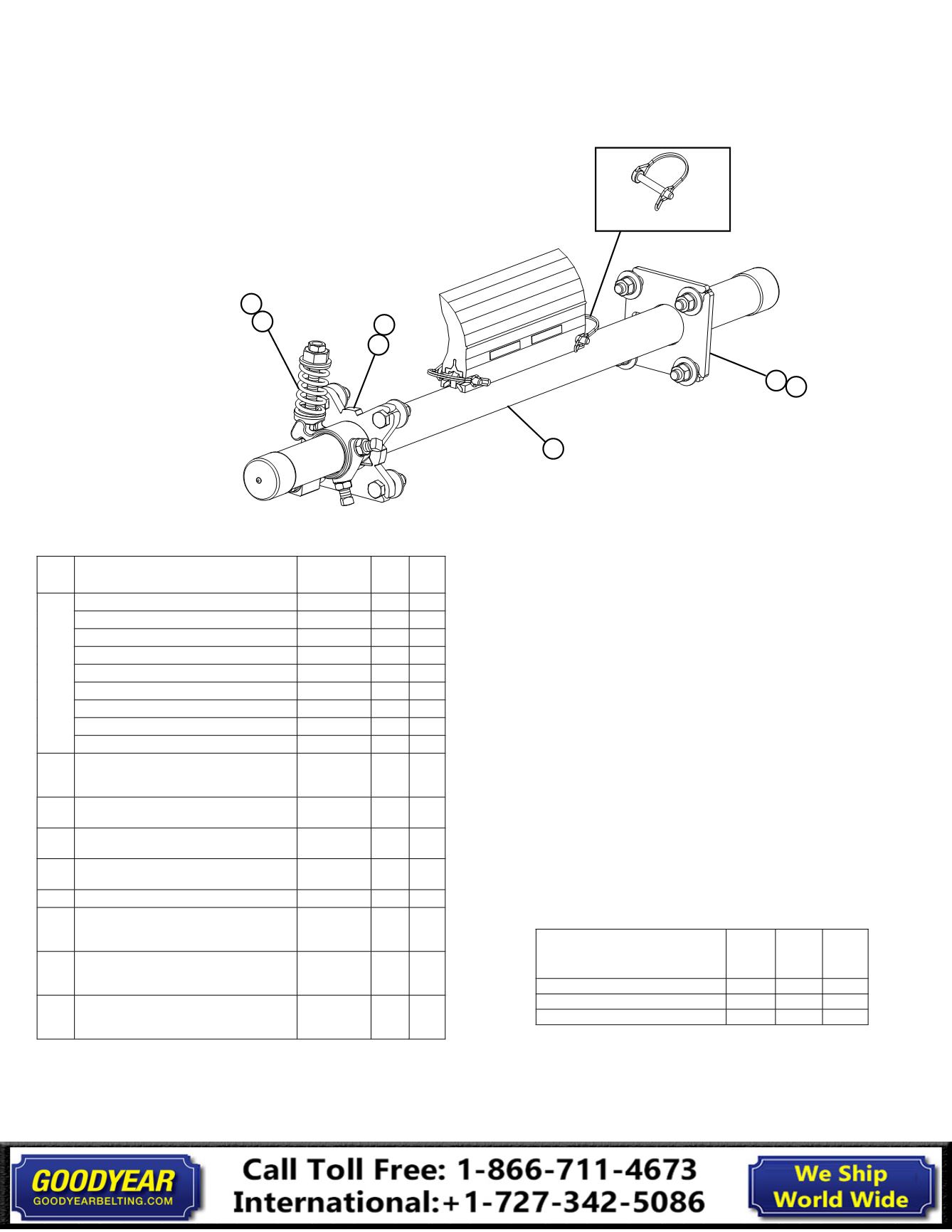

Parts List
EZP-LS Stainless Steel
Limited Space Precleaner
with White ConShear™ LS Blade
Replacement Parts
P R O D U C T H A N D B O O K
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
12" (300mm) SS Pole LSP12-S/S 77079 13.3
18" (450mm) SS Pole LSP18-S/S 77080 15.5
24" (600mm) SS Pole LSP24-S/S 77081 17.7
30" (750mm) SS Pole LSP30-S/S 77082 19.9
36" (900mm) SS Pole LSP36-S/S 77083 22.1
42" (1050mm) SS Pole LSP42-S/S 77084 24.3
48" (1200mm) SS Pole LSP48-S/S 77085 26.5
54" (1350mm) SS Pole LSP54-S/S 77086 28.7
60" (1500mm) SS Pole LSP60-S/S 77087 31.0
2
SS Mounting Plate Kit (10”-46”/250-1150mm)*
(incl. 1 tensioner mounting plate and
1 pole mounting plate)
LSTMPK-S/S 78933 3.6
2a SS Mounting Plate Kit (52”+/1300mm+)*
(incl. 2 tensioner mounting plates)
LSTMPK2-S/S 78462 7.2
3 Tension Spring - Black (1 ea.)
for blades 10-28" (250-700mm) CTS-B-S/S 78387 .2
3a Tension Spring - White (1 ea.)
for blades 34" - 70" (850 - 1750mm) LS-SW-S/S 78850 .3
4 SS LS Blade Pin (1 ea.) LS-BP-S/S 77115 .1
-
SS LST Spring Tensioner* - Black
incl. 1 ea. items 2 & 3
for blades 10"-28" (250 - 700mm)
LST-B-S/S 77124 7.5
-
SS LST Spring Tensioner* - White
incl. 1 ea. items 2 & 3a
for blades 34"- 46" (850 - 1150mm)
LST-W-S/S 77125 7.6
-
SS LST Spring Tensioner* - White (dual)
incl. 1 ea. item 2a and 2 ea. item 3a
for blades 52"- 70" (1300 - 1750mm)
LST-W-S/S-2 77126 15.2
*Hardware Included
