Replacement
Parts List
Stainless Steel MSP
Standard Mine-Duty Precleaner
U.S. Patent No. D482,508S
Shaded items are made to order.
Lead time: 3 weeks
Spring Tensioner Selection Chart
CLEANER BLADE WIDTH
77584
QMT-P-S/S
77585
QMT-W-S/S
77586
QMT-G-S/S
ConShear 16" - 28"
(400 - 700mm)
X
ConShear 34" - 70"
(850 - 1750mm)
X
ConShear 76" - 82"
(1900 - 2050mm)
X
2
6
1
3
4
6a
8
9
5

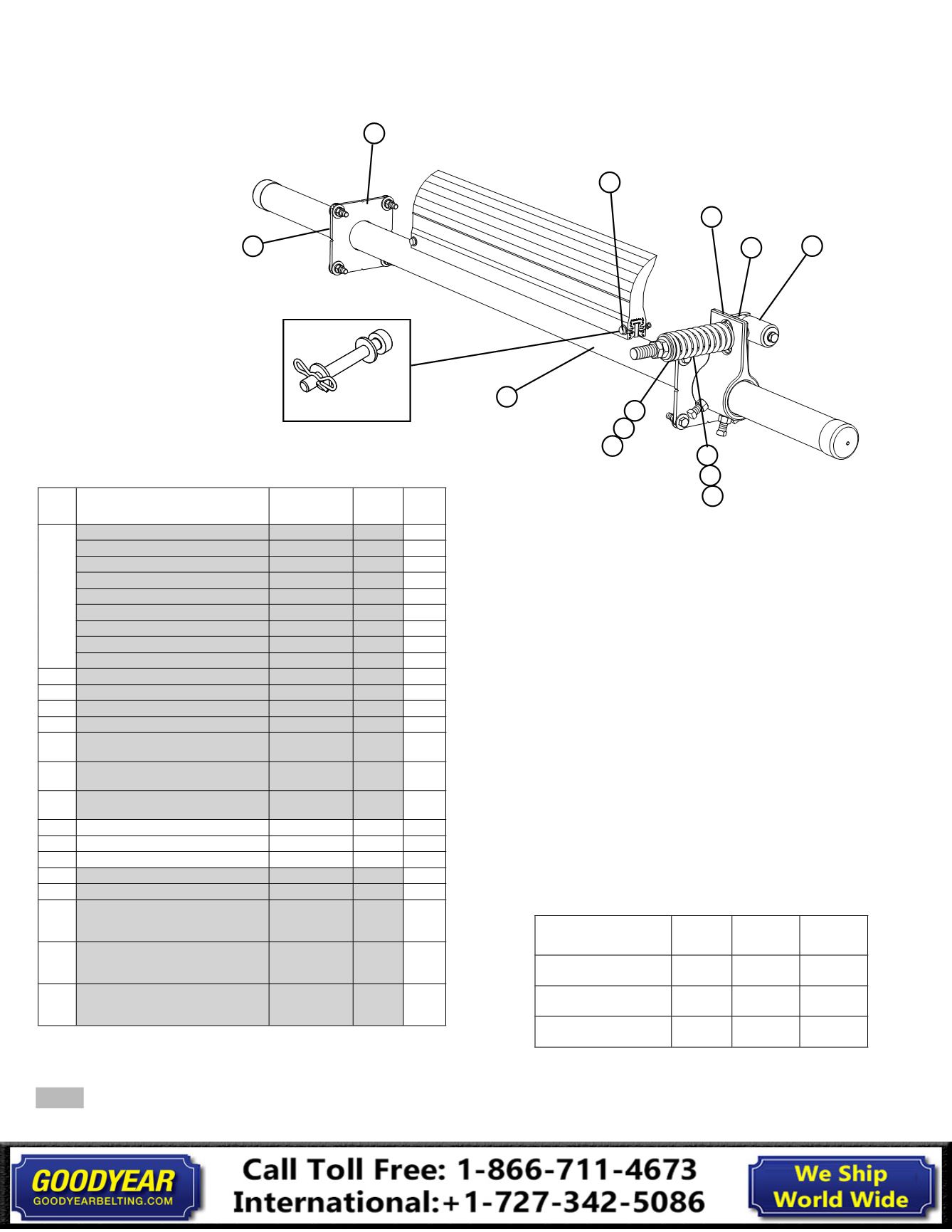

Detail view of Item 4
7
7a
Hidden
6b
7b
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
24" (600mm) SS Pole
MSPP24-S/S 77472 42.5
30" (750mm) SS Pole
MSPP30-S/S 77473 46.0
36" (900mm) SS Pole
MSPP36-S/S 77474 50.5
42" (1050mm) SS Pole
MSPP42-S/S 77475 55.5
48" (1200mm) SS Pole
MSPP48-S/S 77476 60.0
54" (1350mm) SS Pole
MSPP54-S/S 77477 64.0
60" (1500mm) SS Pole
MSPP60-S/S 77478 67.0
72" (1800mm) SS Pole
MSPP72-S/S 77479 76.0
84" (2100mm) SS Pole
MSPP84-S/S 77480 88.6
2
SS Mounting Plate Kit*
(2 ea.)
MSPMPK-S/S 77582 8.3
3
SS Pole Lock*
(1 ea.)
MSPPL-S/S 77524 1.9
4
SS Blade Pin Kit*
(1 ea.)
MSPBPK-S/S 77583 0.1
5
SS Pivot Arm Kit*
(1 ea.)
QMTPAK-S/S 77587 4.3
6
SS Tension Spring - Purple
(1 ea.)
for blades 16" - 28" (400 - 700mm)
QMTS-P-S/S 77450 0.6
6a SS Tension Spring - White
(1 ea.)
for blades 34" - 70" (850 - 1750mm)
QMTS-W-S/S 77451 1.7
6b SS Tension Spring - Gold
(1 ea.)
for blades 76" - 82" (1900 - 2050mm)
QMTS-G-S/S 77452 2.5
7
Bushing Kit - Purple
(2 ea.)
QMTBK-P 76097 0.1
7a Bushing Kit - White
(2 ea.)
QMTBK-W 76098 0.2
7b Bushing Kit - Gold
(2 ea.)
QMTBK-G 76540
0.3
8
SS Pivot Shaft Bracket Kit*
(1 ea.)
QMTPSBK-S/S 77588 4.3
9
SS Torsion Arm Kit*
(1 ea.)
PSTA-S/S 77442 11.4
-
SS QMT Spring Tensioner* - Purple
(incl. 1 ea. Items 5, 6, 7, 8, & 9)
for blades 16" - 28" (400 - 700mm)
QMT-P-S/S 77584 20.4
-
SS QMT Spring Tensioner* - White
(incl. 1 ea. Items 5, 6a, 7a, 8, & 9)
for blades 34" - 70" (850 - 1750mm)
QMT-W-S/S 77585 21.8
-
SS QMT Spring Tensioner* - Gold
(incl. 1 ea. Items 5, 6b, 7b, 8, & 9)
for blades 76" - 82" (1900 - 2050mm)
QMT-G-S/S 77586 23.2
*Hardware Included
Lead Time: 1 working day
