174 / 206
www.flexco.com
• phone: 1-630-971-0150
174

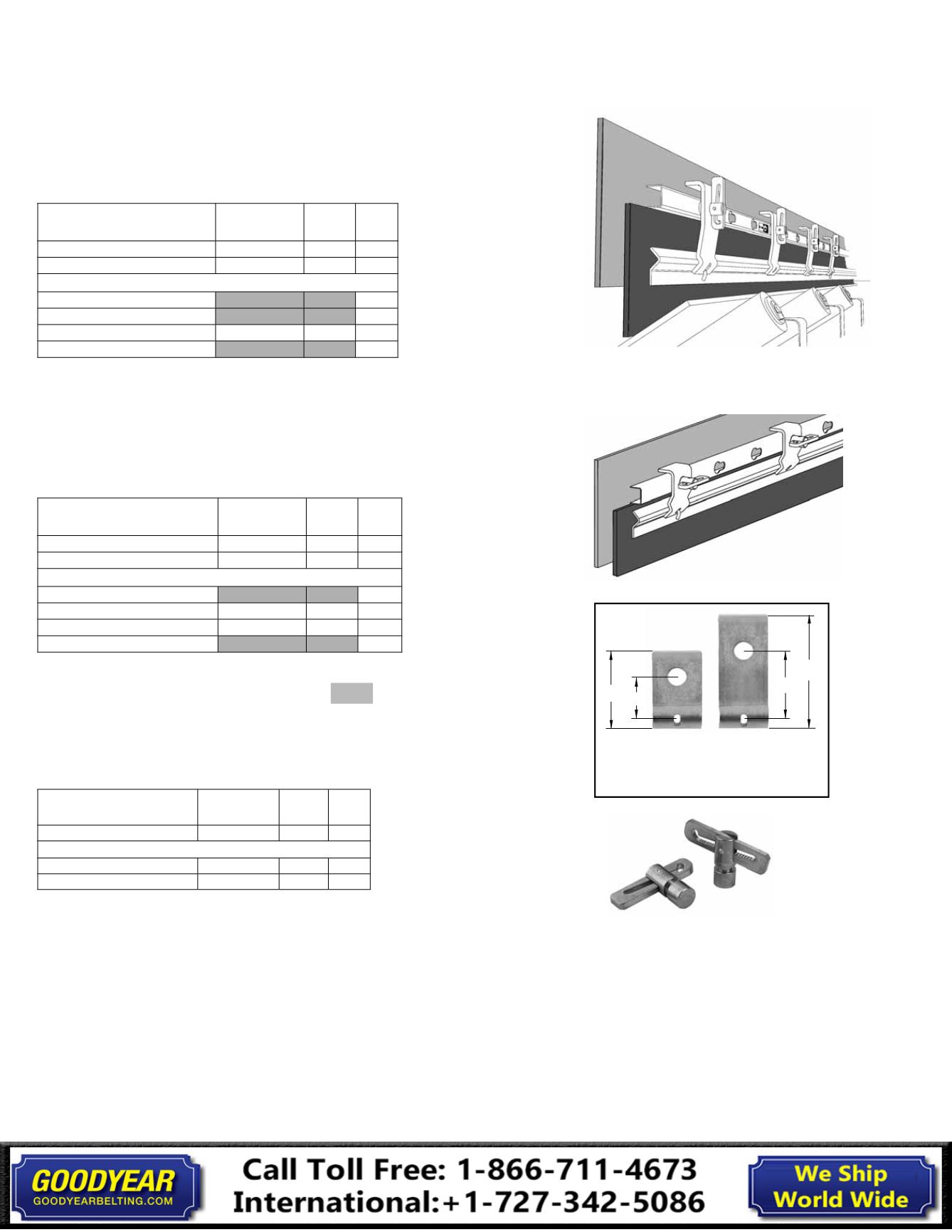

Flex-Lok
™
Skirt Clamp
Mini Flex-Lok
™
Skirt Clamp
‡ Minimum order of 50 pieces for Bulk Pack pricing.
Skirt Rubber Thickness Range: 5/16" to 1" (8 - 25mm)
Lead time: 1 working day
‡ Minimum order of 50 pieces for Bulk Pack pricing.
Skirt Rubber Thickness Range: 5/16" to 5/8" (8 - 16mm)
Lead time: 1 working day
Shaded items are made to order.
Lead time: 5 working days
Stainless Steel* Flex-Lok™ Skirt Clamp
* 316SS (all parts)
Lead time: 1 working day
Two models are available to fit your
conveyor requirements.
Mini Standard
2.5"
4"
7"
Anti-Vibration Clamp Pins
(Standard)
Standard
Mini
One Skirt Clamp includes one 6' (1.8M) clamp runner, 4 clamp plates,
4 clamp pins and one 6' (1.8M) restraining bar.
Skirt board and rubber not included.
One Mini Skirt Clamp includes one 6' (1.8M) clamp runner, 3 mini
clamp plates, 3 clamp pins and one 6' (1.8M) restraining bar. Skirt
board and rubber not included.
One SS Skirt Clamp includes one 6' (1.8M) clamp runner, 4 clamp plates,
4 clamp pins and one 6' (1.8M) restraining bar.
4.5"
SERVICE MAINTENANCE
• Inspection - Periodically inspect the clearance between the skirt rubber and
the belt. If this gap is more than 1/4" (6mm) or if excessive fines are escaping, readjust the skirt rubber.
• Adjustment - Unlock the wedges on the clamp pins and slide the skirt rubber down to the belt. Relock the clamp pins.
TROUBLESHOOTING
Problem: Skirt rubber slips out of skirt clamp.
Solution: 1. Check to insure wedges in clamp pins are locked.
2. Check skirt rubber position. Skirt rubber must not fold and lie on top of belt.
Product Ordering
Information
Flex-Lok
™
Skirt Clamps
P R O D U C T H A N D B O O K
DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
Mini Skirt Clamp
FLSCM-I
71055 27.6
Mini Skirt Clamp Bulk ‡
FLSCM-I-BULK 71100 27.5
REPLACEMENT PARTS
Clamp Runner - 6 ft. (1.8M)
FL-RPI
71058 7.3
Mini Clamp Plate
FLM-PC
71140 1.5
Clamp Pin
FL-CP-I
71141 1.9
Restraining Bar - 6 ft. (1.8M)
FL-RBI
71060 11.3
DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
SS Skirt Clamp
FLSC-ISS 75778 25.0
REPLACEMENT PARTS
SS Clamp Plate
FL-PC-ISS 71168 1.9
Clamp Pin
FL-CP-ISS 71164 1.9
DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
Skirt Clamp
FLSC-I
71052 31.1
Skirt Clamp Bulk ‡
FLSC-I-BULK 71054 31.1
REPLACEMENT PARTS
Clamp Runner - 6 ft. (1.8M)
FL-RPI
71058 7.3
Clamp Plate
FL-PC-I
71057 2.1
Clamp Pin
FL-CP-I
71141 1.9
Restraining Bar - 6 ft. (1.8M)
FL-RBI
71060 11.3
