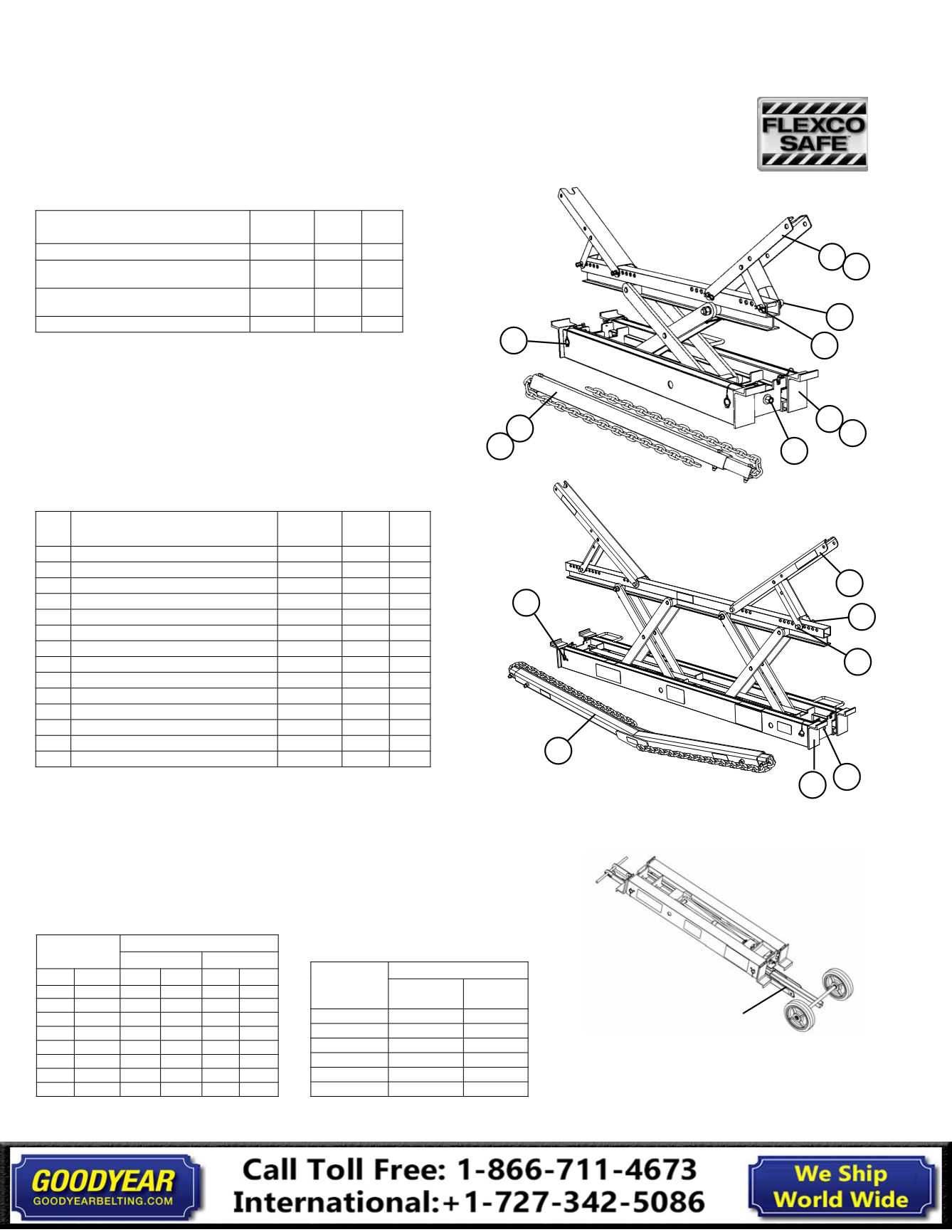

Flex-Lifter
™
Conveyor Belt Lifter
Easy and safe way to lift tensioned belts so mechanical splicing
or other maintenance work can be done.
Aluminum Content Flex-Lifter
ALUMINUM
ALLOY TYPE
PERCENT
Mg
Magnesium
Ti
Titanium
4043
0.05%
0.2%
5356
5.5%
0.2%
6005
0.6%
0.1%
6061
1.0%
0.0%
6063
0.7%
0.0%
7075
2.5%
0.0%
Product Ordering
Information
Flexco
®
Belt MaintenanceTools
Belt Lifters
Safe Lifting Capacity
Height
Max. Weight
Medium/Large
XL
in.
mm lbs.
kg.
lbs.
kg.
0-1
0-25
500
225 1100 500
1-2 25-50 1000 450 1800 815
2-3 50-75 1500 675 2500 1140
3-4 75-100 2000 900 3200 1450
4-5 100-125 2500 1150 3700 1680
5-6 125-150 3000 1350 4600 2090
6-7 150-175 3500 1600 5300 2400
>7
>175 4000 1800 6000 2725
Flex-Lifter (M/L)
Flex-Lifter (XL)
Flex-Lifter Cart
1a
1c
3a
3c
1b
3b
4
4
5
5
2
2
7a
7b
6a
6c
6b
U.S. Patent No. 7,810,788
P R O D U C T H A N D B O O K
Lifts troughed or flat belts.
Lead time: 1 working day
DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
Medium Flex-Lifter 36" - 60"
(900 - 1500 mm)
FL-M 76469 87.0
Large Flex-Lifter 48" - 72"
(1200 - 1800 mm)
incl. return bar
FL-L
76470 121.0
XL Flex-Lifter 72" - 96"
(1800 - 2400 mm)
does not incl. return bar
FL-XL
76983 152.0
Flex-Lifter Cart
FLCK 77729 20.0
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1a Extension Leg - Medium
FLEL-M 76472
3.1
1b Extension Leg - Large
FLEL-L 76473
3.7
1c Extension Leg Kit- XL
(includes 2 ext. legs)
FLELK-XL 76986 13.0
2 Extension Leg Pin
(with lanyard)
FLELP 76474
0.1
3a Trough Wing - Medium
(with brace)
FLTW-M 76476
1.2
3b Trough Wing - Large
(with brace)
FLTW-L 76477
1.5
3c Trough Wing - XL
(with brace)
FLTW-XL 76985
4.2
4 Retainer Pin Pack
(includes 4 pins)
FLRP 76478
1.0
5 Retainer Clip Pack
(includes 4 clips)
FLCP 76479
0.1
6a Return Lift Bar - Medium
FLRLB-M 76482 18.4
6b Return Lift Bar - Large
FLRLB-L 76481 40.0
6c V-Return Lift Bar - XL
FLVRL-XL 76984 63.0
7a Shear Pin Kits - Medium/Large
FL-PKIT-ML 77250
0.3
7b Shear Pin Kits - XL
FL-PKIT-XL 77251
0.5
