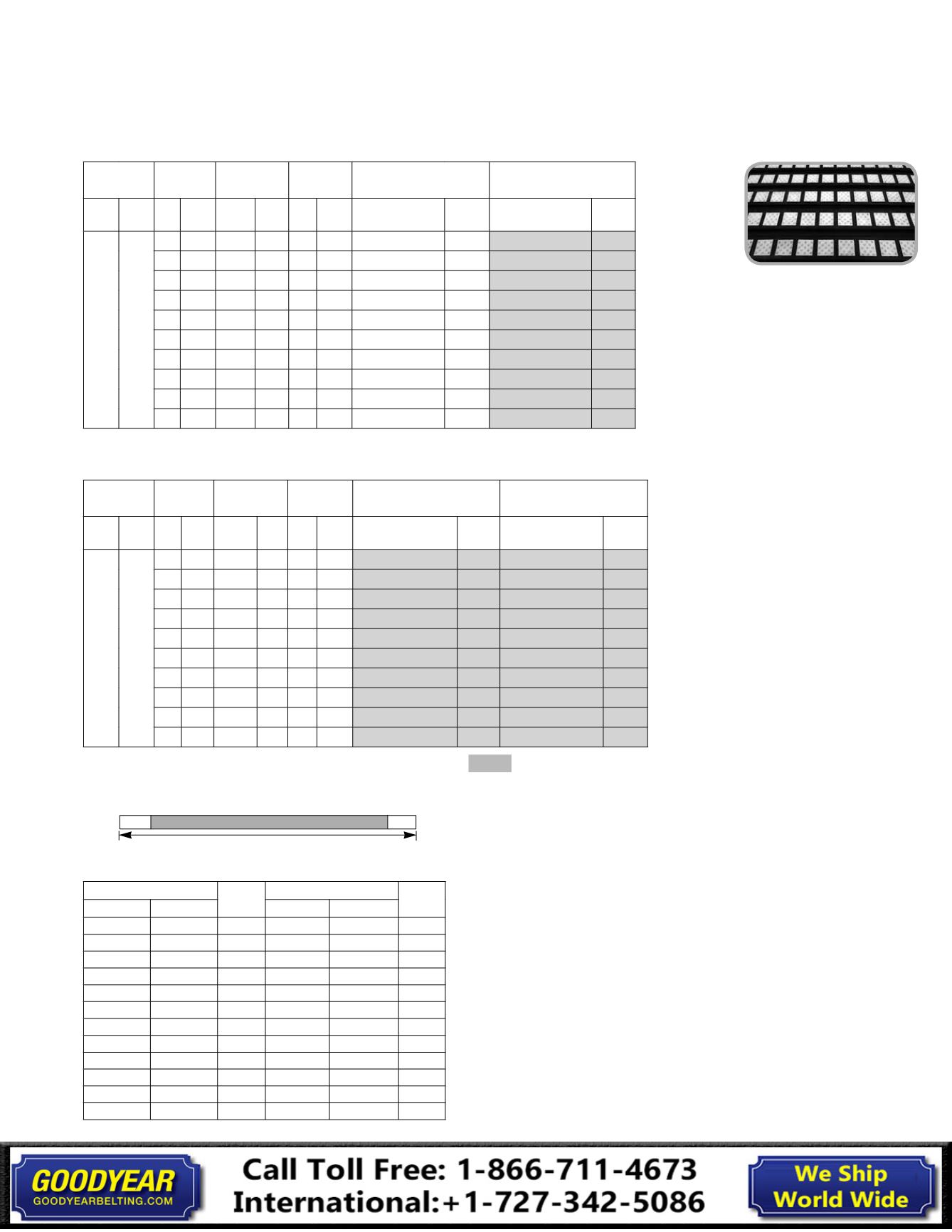

179 / 206
www.flexco.com
• phone: 1-630-971-0150
179
BELT WIDTH / CERAMIC STRIP LENGTH
MAXIMUM PULLEY FACE WIDTH / OVERALL STRI
P L
ENGTH
CERAMIC STRIP CONFIGURATION
Strip Selection
PULLEY DIAMETER STRIPS
REQ'D
PULLEY DIAMETER STRIPS
REQ'D
in.
mm
in.
mm
12.6-15.0 320-381
6
42.6-45.0 1083-1145
18
15.1-17.5 382-445
7
45.1-47.5 1146-1210
19
17.6-20.0 446-510
8
47.6-50.1 1211-1273
20
20.1-22.5 511-573
9
50.2-52.6 1274-1336
21
22.6-25.0 574-636
10
52.7-55.1 1337-1400
22
25.1-27.5 637-700
11
55.2-57.6 1403-1463
23
27.6-30.0 701-764
12
57.7-60.1 1466-1527
24
30.1-32.5 765-827
13
60.2-62.6 1529-1590
25
32.6-35.0 828-891
14
62.7-65.1 1593-1654
26
35.1-37.5 892-955
15
65.2-67.6 1656-1717
27
37.6-40.0 956-1018
16
67.7-70.1 1720-1781
28
40.1-42.5 1019-1082
17
70.2-72.6 1783-1844
29
Product Notes:
• No wasted ceramic with easy-to-specify dimensions by using pulley
or belt width.
• Constructed from individual ceramic tiles molded into high-durometer
rubber for superior abrasion resistance.
• Horizontal grooves trap and deflect water.
• Molded ceramic buttons grip the belt’s underside for positive traction
and no slippage.
Product Ordering
Information
Flex-Lag
®
Medium Ceramic Pulley Lagging
Ordering Number Key:
N
- SRB,
FR
- FRAS
FRAS (Fire Resistant Anti Static) MSHA Certification # - MSHA NO. IC-190
Shaded items are made to order.
Lead time: 8 -10 weeks
Specifications:
Temperature Rating
5°F to 185° F (-15° C to 85° C)
Ceramic Compound
Aluminum Oxide (Al
2
0
3
)
Rubber Compound
SBR (Styrene-Butadiene-
Rubber)
Ceramic Hardness
83 HRA Rockwell
Hardness Scale A
Rubber Hardness
68 ± 3 Shore A
P R O D U C T H A N D B O O K
Flex-Lag
®
Medium Ceramic Lagging - SBR Rubber
THICKNESS
BELT
WIDTH
CERAMIC
LENGTH
STRIP
LENGTH
DIMPLED TILE
SMOOTH TILE
in.
mm in.
mm in.
mm in.
mm ORDERING
NUMBER
ITEM
CODE
ORDERING
NUMBER
ITEM
CODE
5/8 15
18 450 18 5/8 474 35 880 CLMN450/18-15 61294 CLMN450/18-15S 62052
24 600 24 5/8 626 41 1032 CLMN600/24-15 61295 CLMN600/24-15S 62053
30 750 30 5/8 779 47 1185 CLMN750/30-15 61296 CLMN750/30-15S 62054
36 900 36 5/8 931 53 1337 CLMN900/36-15 61297 CLMN900/36-15S 62055
42 1050 42 5/8 1082 59 1488 CLMN1050/42-15 61298 CLMN1050/42-15S 62056
48 1200 48 5/8 1235 65 1641 CLMN1200/48-15 61299 CLMN1200/48-15S 62057
54 1350 54 5/8 1388 71 1794 CLMN1350/54-15 61300 CLMN1350/54-15S 62058
60 1500 60 5/8 1541 77 1947 CLMN1500/60-15 61301 CLMN1500/60-15S 62059
72 1800 72 5/8 1842 89 2248 CLMN1800/72-15 61302 CLMN1800/72-15S 62060
84 2100 84 7/8 2155 101 2561 CLMN2100/84-15 61303 CLMN2100/84-15S 62061
Flex-Lag
®
Medium Ceramic Lagging - FRAS Rubber
THICKNESS
BELT
WIDTH
CERAMIC
LENGTH
STRIP
LENGTH
DIMPLED TILE
SMOOTH TILE
in.
mm in.
mm in.
mm in.
mm ORDERING
NUMBER
ITEM
CODE
ORDERING
NUMBER
ITEM
CODE
5/8 15
18 450 18 5/8 474 35 880 CLMFR450/18-15 61308 CLMFR450/18-15S 62063
24 600 24 5/8 626 41 1032 CLMFR600/24-15 61309 CLMFR600/24-15S 62064
30 750 30 5/8 779 47 1185 CLMFR750/30-15 61310 CLMFR750/30-15S 62065
36 900 36 5/8 931 53 1337 CLMFR900/36-15 61311 CLMFR900/36-15S 62066
42 1050 42 5/8 1082 59 1488 CLMFR1050/42-15 61312 CLMFR1050/42-15S 62067
48 1200 48 5/8 1235 65 1641 CLMFR1200/48-15 61313 CLMFR1200/48-15S 62068
54 1350 54 5/8 1388 71 1794 CLMFR1350/54-15 61314 CLMFR1350/54-15S 62069
60 1500 60 5/8 1541 77 1947 CLMFR1500/60-15 61315 CLMFR1500/60-15S 62070
72 1800 72 5/8 1842 89 2248 CLMFR1800/72-15 61316 CLMFR1800/72-15S 62071
84 2100 84 7/8 2155 101 2561 CLMFR2100/84-15 61317 CLMFR2100/84-15S 62072
