178 / 206
www.flexco.com
• phone: 1-630-971-0150
178
Product Ordering
Information

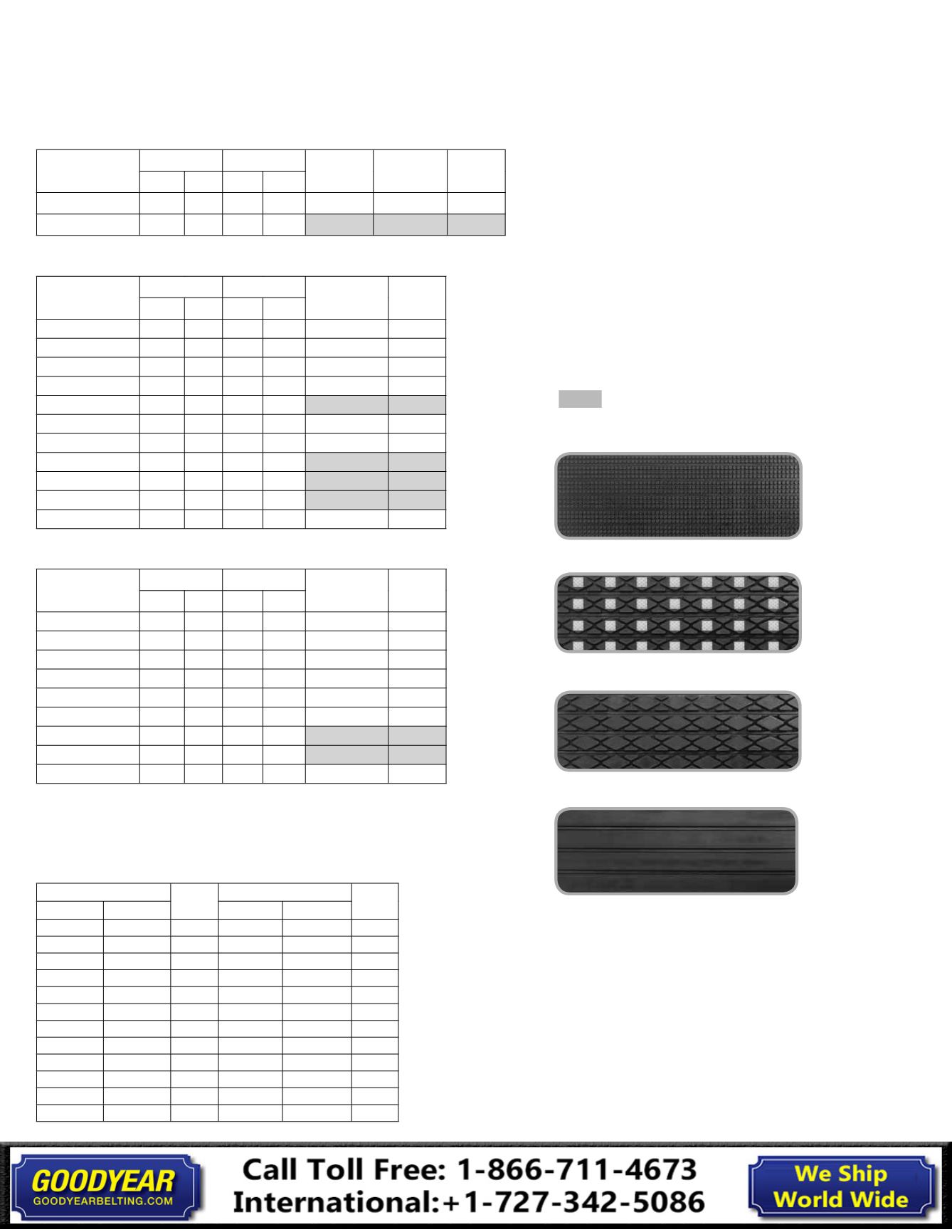

Flex-Lag
®
Rubber Pulley Lagging
Diamond Grooved Lagging
Plain Grooved Lagging
Light Duty Lagging
* For Flex-Lag
®
Light Duty Rubber all material
is 8" (200mm) wide and 10.8' (3.3M) rolls.
** For Flex-Lag
®
Natural Rubber and Flame-
Resistant Rubber, all material is 8" (200mm)
wide in 21' (6.5M) rolls.
Diamond Ceramic Lagging
Ordering Number Key:
N
- SBR,
FR
- FRAS,
P
- Plain,
D
- Diamond,
D
- Diamond Ceramic,
LD
- Light Duty
FRAS (Fire Resistant Anti Static) MSHA Certification # - MSHA NO. IC-190
Shaded items are made to order.
Lead time: 8 -10 weeks
Specifications:
Temperature Rating
5°F to 185° F (-15° C to 85° C)
Rubber Compound
SBR (Styrene-Butadiene-Rubber)
Rubber Hardness
68 ± 3 Shore A
Ceramic Compound (Diamond Ceramic Lagging)
Aluminum Oxide (Al
2
0
3
)
Ceramic Hardness (Diamond Ceramic Lagging
83 HRA Rockwell Hardness Scale A
Strip Selection Chart
Pulley Diameter
Strips
Req’d
Pulley Diameter
Strips
Req’d
in.
mm
in.
mm
12.6-15.0 320-381
6
42.6-45.0 1083-1145
18
15.1-17.5 382-445
7
45.1-47.5 1146-1210
19
17.6-20.0 446-510
8
47.6-50.1 1211-1273
20
20.1-22.5 511-573
9
50.2-52.6 1274-1336
21
22.6-25.0 574-636
10
52.7-55.1 1337-1400
22
25.1-27.5 637-700
11
55.2-57.6 1403-1463
23
27.6-30.0 701-764
12
57.7-60.1 1466-1527
24
30.1-32.5 765-827
13
60.2-62.6 1529-1590
25
32.6-35.0 828-891
14
62.7-65.1 1593-1654
26
35.1-37.5 892-955
15
65.2-67.6 1656-1717
27
37.6-40.0 956-1018
16
67.7-70.1 1720-1781
28
40.1-42.5 1019-1082
17
70.2-72.6 1783-1844
29
P R O D U C T H A N D B O O K
Flex-Lag
®
Light Duty Rubber**
PATTERN
THICKNESS LENGTH
MATERIAL
ORDERING
NUMBER
ITEM
CODE
in.
mm ft.
m
Light Duty
1/4
6
11
3.3
SBR 6NLD3.3/11 71077
Light Duty
1/4
6
11
3.3
Nitrile 6WLD3.3/11 71076
Flex-Lag
®
Roll Lagging - SBR Rubber*
PATTERN
THICKNESS LENGTH ORDERING
NUMBER
ITEM
CODE
in.
mm ft.
m
Diamond
3/8 10
21
6.5
10ND6.5/21
71002
Diamond
1/2 12
21
6.5
12ND6.5/21
71004
Diamond
5/8 15
21
6.5
15ND6.5/21
71006
Diamond
3/4 20
21
6.5
20ND6.5/21
71008
Diamond
1
25
21
6.5
25ND6.5/21
71152
Plain
3/8 10
21
6.5
10NP6.5/21
71010
Plain
1/2 12
21
6.5
12NP6.5/21
71012
Plain
5/8 15
21
6.5
15NP6.5/21
71017
Plain
3/4 20
21
6.5
20NP6.5/21
71021
Plain
1
25
21
6.5
25NP6.5/21
71163
Diamond Ceramic
1/2 12
21
6.5 12NDC6.5/21 71155
Flex-Lag
®
Roll Lagging - FRAS Rubber*
PATTERN
THICKNESS LENGTH ORDERING
NUMBER
ITEM
CODE
in.
mm ft.
m
Diamond
3/8 10
21
6.5 10FRD6.5/21 71014
Diamond
1/2 12
21
6.5 12FRD6.5/21 71016
Diamond
5/8 15
21
6.5 15FRD6.5/21 71018
Diamond
3/4 20
21
6.5 20FRD6.5/21 71019
Plain
3/8 10
21
6.5 10FRP6.5/21 71020
Plain
1/2 12
21
6.5 12FRP6.5/21 71021
Plain
5/8 15
21
6.5 15FRP6.5/21 71015
Plain
3/4 20
21
6.5 20FRP6.5/21 72129
Diamond Ceramic
1/2 12
21
6.5 12FRDC6.5/21 71159
