It’s the Structure, not the bars
It absorbs more impact to save your belt. Our exclusive Velocity Reduction
Technology™ provides two levels of impact relief.
Level 1:
Impact Bars first absorb impact energy. Unique Impact Bar Supports on all DRX Impact Beds allow the impact bars to
function properly - expanding and absorbing more impact energy.
Level 2:
On DRX200, 750 and 1500 impact beds, Isolation Mounts provide a second level of reaction force reduction, absorbing
additional impact energy and minimizing transmission back to the belt. The DRX3000 Dynamic has Impact Energy Absorbers to
disperse an immense amount of impact, even in extremely severe applications.
User-Friendly Slide-Out Service
™
• All DRX Impact Beds separate in the middle to slide apart and out.
• Can be easily and safely converted from the run position to the service position.
• Impact bars are easy to get to for changeout. A complete changeout can be done in one or two hours.
Unique Impact Bar Supports protect the impact bars from damage, extending service life. An Anti-Migratory
Tab on each support secures the bar and prevents it from sliding in the direction of the belt.
Other Features and Benefits
• Uses exclusive anti-spin square washers. Allows use of carriage bolts to secure impact bars instead of expensive T bolts.

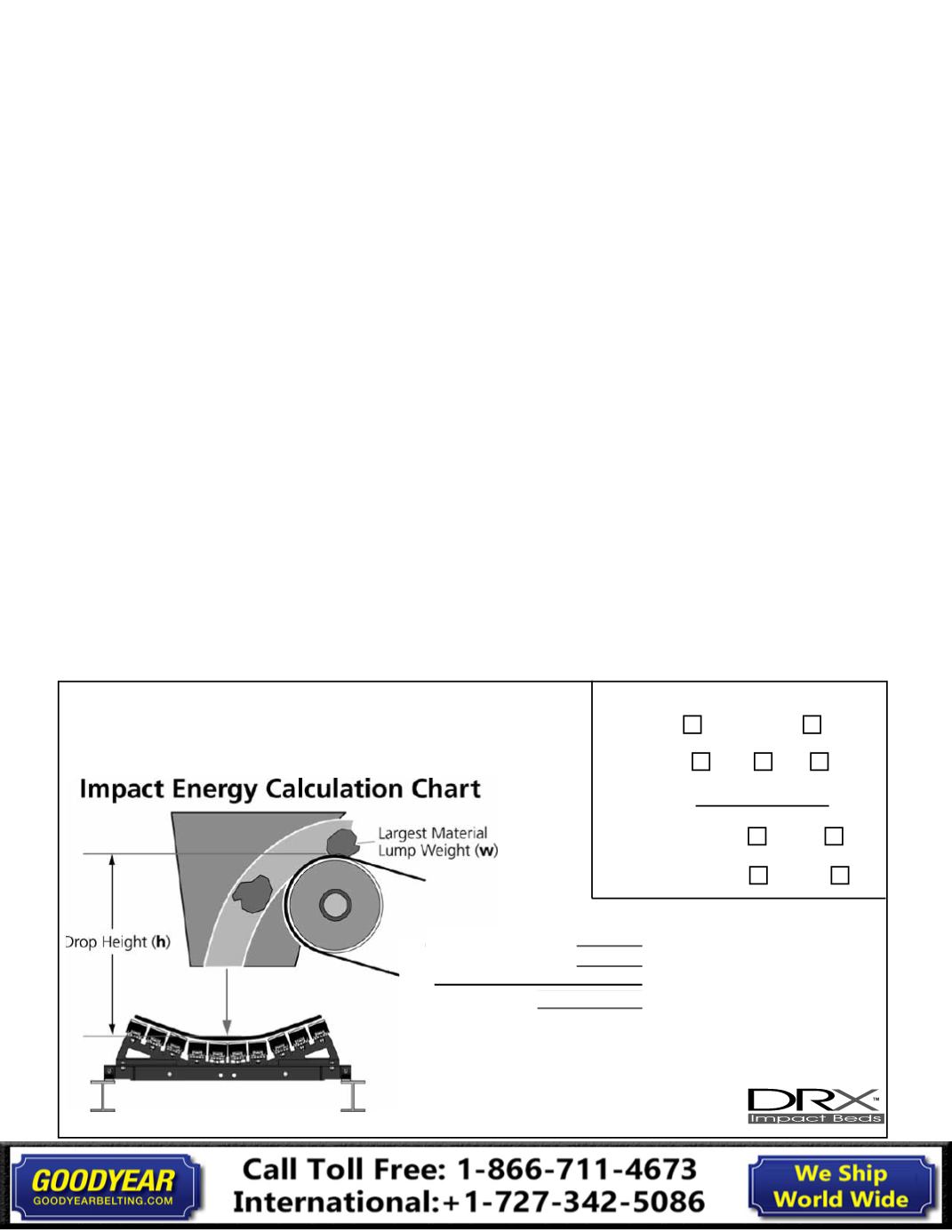

How to spec the correct impact bed
for your conveyor transfer point
Roller Size and CEMA Rating
5" (125mm)
6" (150mm)
CEMA C
D
E
Belt Width
Troughing Angle: 20°
35°
Bed Length: 4' (1.2M) 5' (1.5M)
Lump Weight (
w
)
Drop Height (
h
)
Total =
lb-ft
x
See Below
Up to 200 lb-ft—
DRX200
200 to 750 lb-ft—
DRX750
750 to 1500 lb-ft—
DRX1500
1500 to 3000 lb-ft—
DRX3000
Impact Energy
See Below
Specifications
& Guidelines
DRX™ Impact Beds
Up to 200 lb-ft (25 kg-m)—DRX200
200 t 75 l -ft (25 to 100 kg-m)—DRX750
75 to 1500 l -ft (100 to 200 kg-m)—DRX1500
1500 to 3000 lb-ft (200 to 400 kg-m)—DRX3000
