Replacement
Parts List
EZIB-M
Flexco Impact Beds
All Bars - Medium Duty
IMPACT BED
SIZE
CEMA C OR D, 5” (125mm)
Idlers
CEMA C OR D, 6” (150mm)
IDLERS
24"-36"
(600-900mm)
Shim idler up .5" (12.5mm)
No Kits Required
42"-72"
(1050-1800mm)
No Kits Required
Use (1) SHIM-KITM;
Shim up .5" (12.5mm)
Shim Requirements
IMPACT BED
SIZE
CEMA E, 6” (150mm)
IDLERS
CEMA E, 7” (175mm)
IDLERS
36"-60"
(900-1500mm)
Use (3) SHIM-KITM; Shim
up 1.5" (37.5mm)
Use (4) SHIM-KITM;
Shim up 2" (50mm)
72"
(1800mm)
Use (4) SHIM-KITM; Shim
up 2" (50mm)
Use (5) SHIM-KITM;
Shim up 2.5" (62.5mm)
in.
24
30
36
42
48
54
60
72
mm
600
750
900
1050 1200 1350 1500 1800
BARS REQUIRED
SLIDER
2
2
2
2
2
2
2
2
IMPACT
4
4
5
7
8
10
11
12
BAR BOLT KITS REQUIRED
26
26
31
41
46
56
61
66
BAR SUPPORTS REQUIRED
4
4
5
7
8
10
11
12

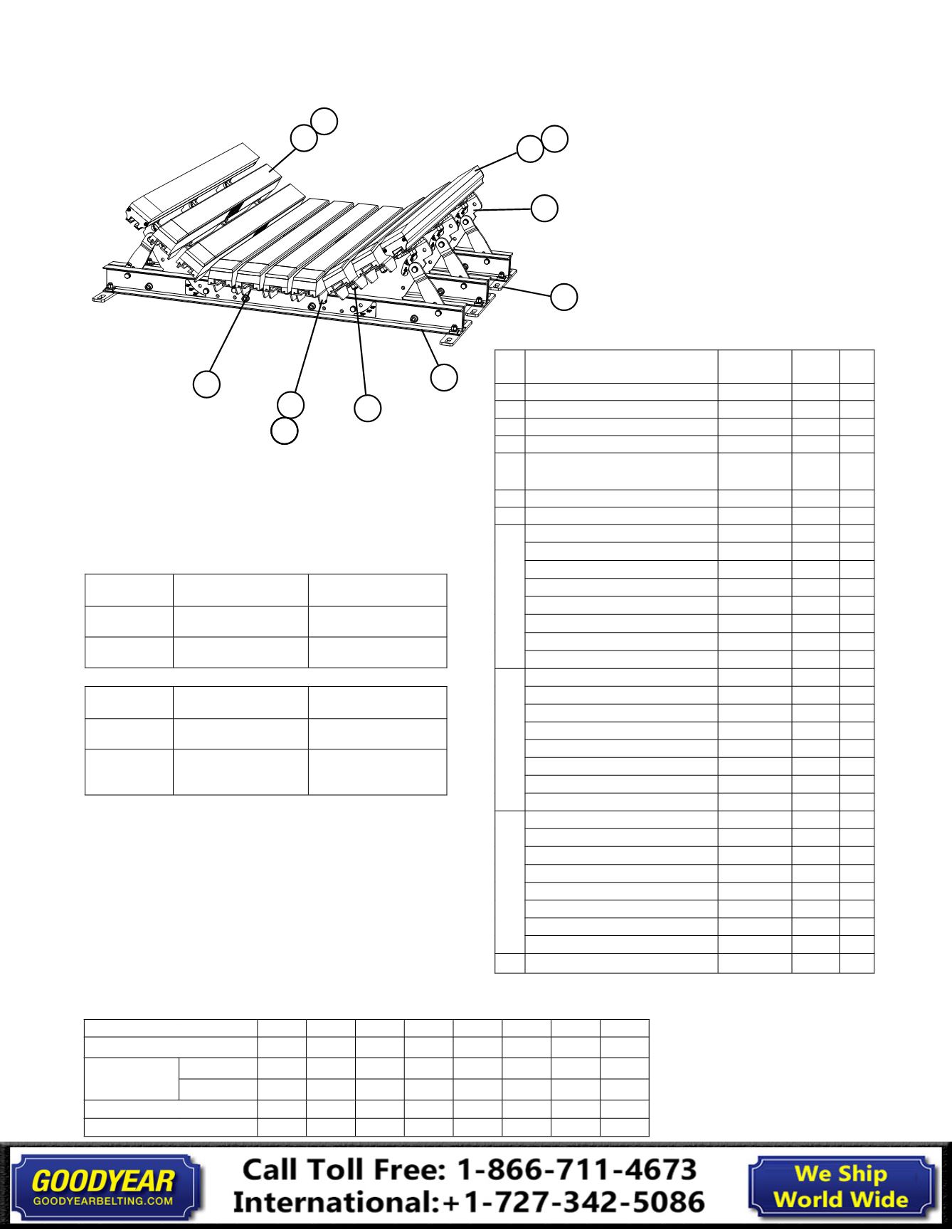

Replacement Quantities for EZIB-M
1
2
2a
6
8
1a
4
4a
3
5
(hidden)
7
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
Slider Bar, 4' (1.2M)
SB4
78789
20
1a
Slider Bar, 5' (1.5M)
SB5
78790
24.1
2
Impact Bar, 4’ (1.2M)
IB4
76926
17
2a
Impact Bar, 5’ (1.5M)
IB5
76927
21
3
Bar Bolt Kit
(incl. 1 ea. 5/8” (15mm) carriage
bolt, square washer, flat washer, lock washer,
Nylock nut)
IBBK
76928
0.5
4
Impact Bar Support - M 4’ (1.2M) *
IBS-M4
76931
16.9
4a
Impact Bar Support - M 5’ (1.5M) *
IBS-M5
76932
21.2
5
Center Bar Mount Kit 24" (600mm) *
EZBMK-24
78944
5.2
Center Bar Mount Kit 30" (750mm) *
EZBMK-30
78945
5.7
Center Bar Mount Kit 36" (900mm) *
EZBMK-36
78946
7.5
Center Bar Mount Kit 42" (1050mm) *
EZBMK-42
78947
8.0
Center Bar Mount Kit 48" (1200mm) *
EZBMK-48
78948
9.8
Center Bar Mount Kit 54" (1350mm) *
EZBMK-54
78949
10.5
Center Bar Mount Kit 60" (1500mm) *
EZBMK-60
78950
12.3
Center Bar Mount Kit 72" (1800mm) *
EZBMK-72
78951
14.6
6
Wing Plate Kit 24" (600mm) *
EZWPK-24
78970
16.9
Wing Plate Kit 30" (750mm) *
EZWPK-30
78971
17.4
Wing Plate Kit 36" (900mm) *
EZWPK-36
78972
21.2
Wing Plate Kit 42" (1050mm) *
EZWPK-42
78973
26.2
Wing Plate Kit 48" (1200mm) *
EZWPK-48
78974
30.1
Wing Plate Kit 54" (1350mm) *
EZWPK-54
78975
35.6
Wing Plate Kit 60" (1500mm) *
EZWPK-60
78976
39.0
Wing Plate Kit 72" (1800mm) *
EZWPK-72
78977
46.7
7
Cross Stringer Kit 24" (600mm) *
EZCSK-24
78978
49.2
Cross Stringer Kit 30" (750mm) *
EZCSK-30
78979
56.5
Cross Stringer Kit 36" (900mm) *
EZCSK-36
78980
63.8
Cross Stringer Kit 42" (1050mm) *
EZCSK-42
78981
70.8
Cross Stringer Kit 48" (1200mm) *
EZCSK-48
78982
78.5
Cross Stringer Kit 54" (1350mm) *
EZCSK-54
78983
85.8
Cross Stringer Kit 60" (1500mm) *
EZCSK-60
78984
93.1
Cross Stringer Kit 72" (1800mm) *
EZCSK-72
78985
99.1
8
Shim Kit Medium Duty
(incl. 4 shims)
SHIM-KITM 77549
20.4
*Hardware Included
