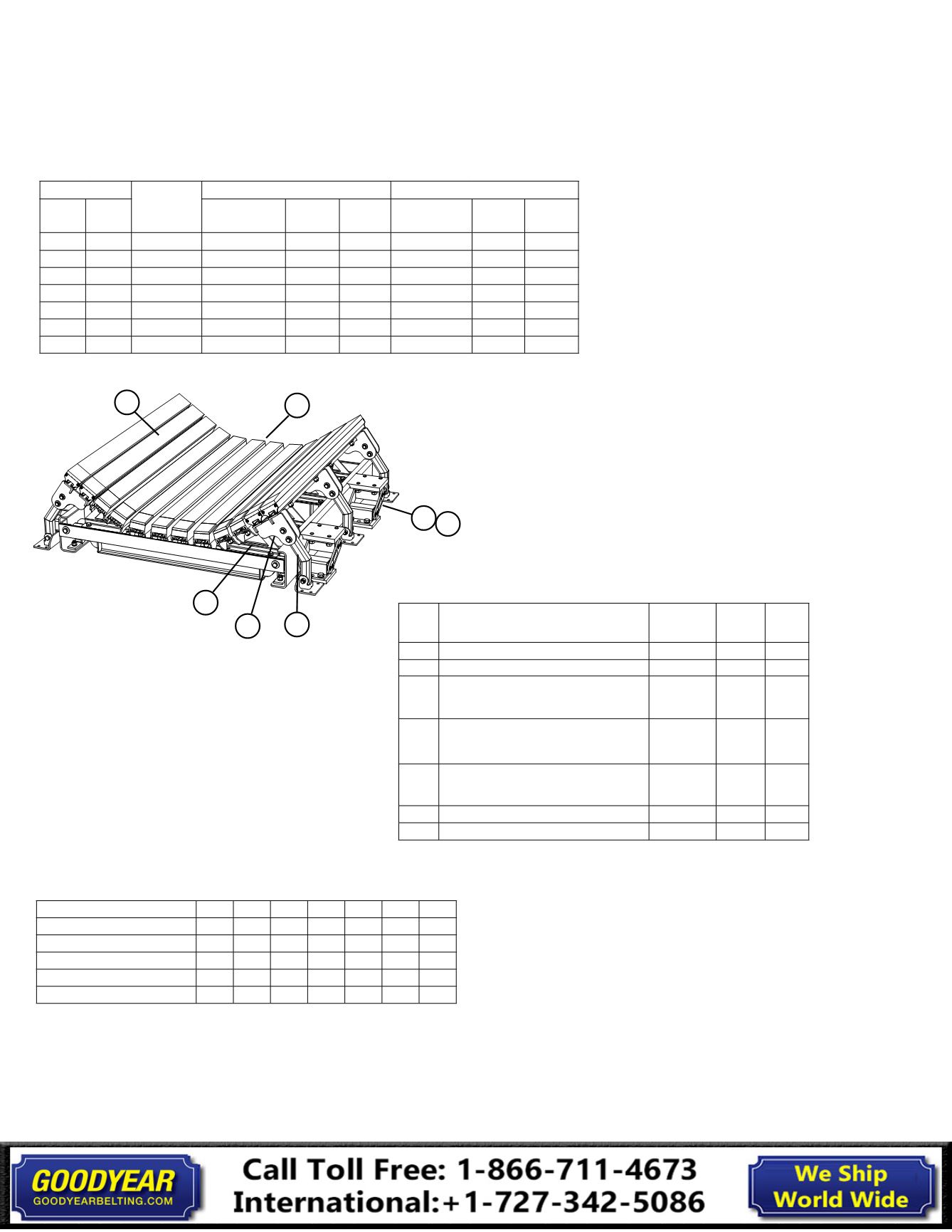

Product Notes:
• For extreme impact applications up to 3000 lb-ft (lump size x drop height).
• Impact Energy Absorbers compress up to 3" (75mm) to absorb extreme impact energy
to minimize damaging forces and protect the belt.
DRX3000
Lead time: 4 weeks
Replacement Parts
Lead time: 1 working day
4
1
2
5 3
6 6a
Replacement Bars and Bolt Kits Required
per Belt Width - DRX3000
Product Ordering
Information
DRX3000
Dynamic Beds
in.
42 48 54 60 72 84 96
mm
1050 1200 1350 1500 1800 2100 2400
Slider Bars Required
2
2
4
4
4
4
4
Impact Bars Required
8
8
8
9
12 12 16
Impact Bar Supports Required
8
8
8
9
12 12 16
Impact Bar Bolt Kits Required
56 56 64 70 88 88 112
* Belt width + 9" = Structure width
CEMA E construction
P R O D U C T H A N D B O O K
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1 Impact Bar, 5' (1/2" UHMW)
IB5
76927 21.2
2 Slider Bar, 5' (1.5M)
SB5
78790
24.1
3
Impact Bar Bolt Kit
incl. (1) ea 5/8" carriage bolt, square washer,
flat washer, lock washer, Nylock nut
IBBK 76928
0.5
4
Impact Bar Support - D 5'
incl. (1) bar support, (2) ea carriage bolt,
square washer, lock washer, Nylock nut
IBS-D5 77530 21.0
5
Sliding Support Arm Bolt Kit
incl. (4) 1-1/2" bolts, (2) 2" bolts,
(6) lock washers, (6) Nylock nuts
ISABK 76935
2.0
6 Impact Energy Absorber 42-60
IEA-42-60 76937 42.0
6a Impact Energy Absorber 72-96
IEA-72-96 76938 66.0
BELT WIDTH TONNAGE
RATING
(ton/hr)
5' (1.5 M) BEDS, 20
°
TROUGH
5' (1.5 M) BEDS, 35
°
TROUGH
in.
mm
ORDERING
NUMBER
ITEM
CODE
WT.
LBS
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
42
1050
28,700
DRXD-42-520 76912 1,351.0
DRXD-42-535 76919 1,351.0
48
1200
31,900
DRXD-48-520 76913 1,407.0
DRXD-48-535 76920 1,407.0
54
1350
38,300
DRXD-54-520 76914 1,568.0
DRXD-54-535 76921 1,568.0
60
1500
41,500
DRXD-60-520 76915 1,676.0
DRXD-60-535 76922 1,676.0
72
1800
44,700
DRXD-72-520 76916 2,098.0
DRXD-72-535 76923 2,098.0
84
2100
51,100
DRXD-84-520 76917 2,261.0
DRXD-84-535 76924 2,261.0
96
2400
63,900
DRXD-96-520 76918 2,609.0
DRXD-96-535 76925 2,609.0
